Application guide - beads of viscous grease to lubricate parts
Last Updated: 31/12/2011

Application guide - beads of viscous grease to lubricate parts



Customers applying controlled beads of high viscosity greases to replace hypodermic syringes, brushes, tubes and bottles.


Solution to use a TS250 high pressure dispenser with a 30cc industrial grade syringe barrel. Grease is placed inside the syringe barrel which is attached to the TS250 dispenser using an adapter assembly air hose. A smooth flow tapered tip is used to ensure the grease is dispensed without restriction..

The syringe is held like a pen. Once the foot pedal is pressed, grease will flow. A timer can be set to provide a repeat deposits. The plastic wiper piston inside the barrel moves to dispense the grease but moves back slightly after each deposit to prevent drips or oozing.

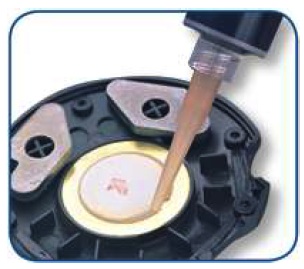

Grease dispenser


System supplied with a selection of components including syringe barrels, pistons, tapered tips, adapter assembly, caps and fittings. Ready to use out of the box.

Parts used: TS250 dispenser, 7300LL1NPK 30cc barrel, 7300009WPK 30cc piston, TTN14 tapered tip, 7015LLBPK tip cap.
