Low Pressure Dispenser 0-15 psi TS355
TS355 Dispenser
TS355 Syringe Dispenser



Alternative Views:


Price: £530.95 Exc VAT

Availability:: Ships in 24 Hours
Product Code: TS355


Syringe Size:


Qty:
Description Technical Specs More Info

The TS350 system will dispense virtually any assembly fluid and adhesive or liquid paste, from thin, watery liquids and solvents to thick gels, silicones and brazing pastes. All are applied quickly, very accurately and with zero waste, hand fatigue or mess.

This is a system with a 0-15 psi adjustable air regulator for watery fluids and solvents - use the TS350 version with a 0-100 psi regulator for most general adhesives, pastes and gels.

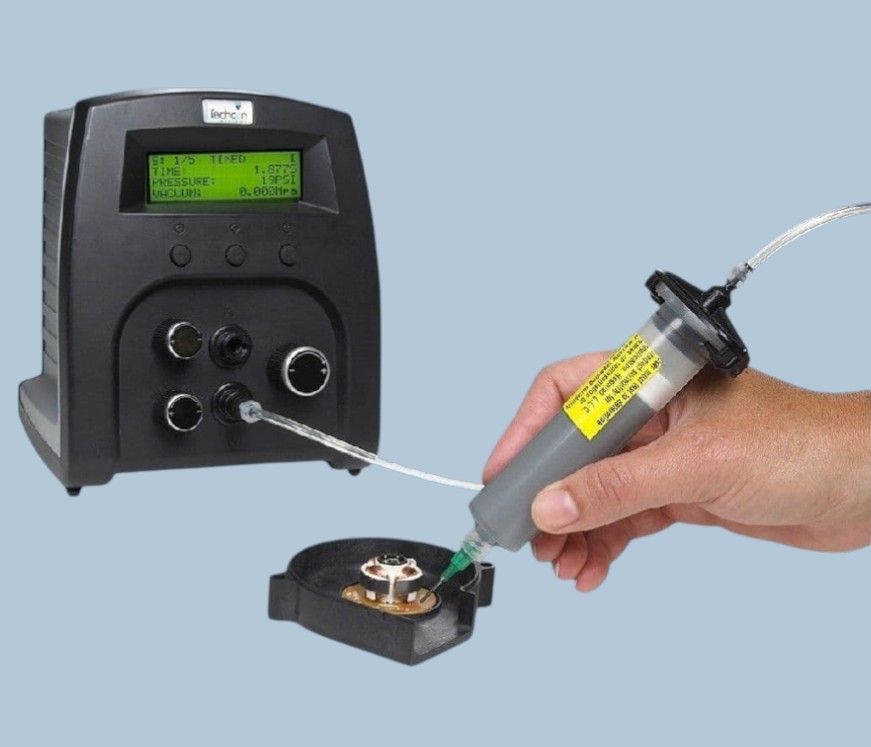

You hold the syringe like a pen, adjust the air pressure to suit your liquid being dispensed and press the foot pedal to dispense. When the foot pedal is released, the deposit instantly stops without drips or oozing. It is safe and simple to use and reduces time spent manually applying liquids. The TS355 range offer high precision control over watery liquids in a compact bench top system.

The TS355 has a bright LCD screen that displays time, vacuum, air pressure, time memory storage (up to 10) and shot counter. These high quality precision dispensers will make micro dots, large dots and controlled lines of cyanoacrylates, solvents, primers, activators, etc. Syringe sizes available range from 3cc to 55cc. Use supplied foot pedal or optional finger switch. The TS355 features teach mode to reduce setup time and has dual air output. A sophisticated bench dispenser to handle watery adhesives and liquids.

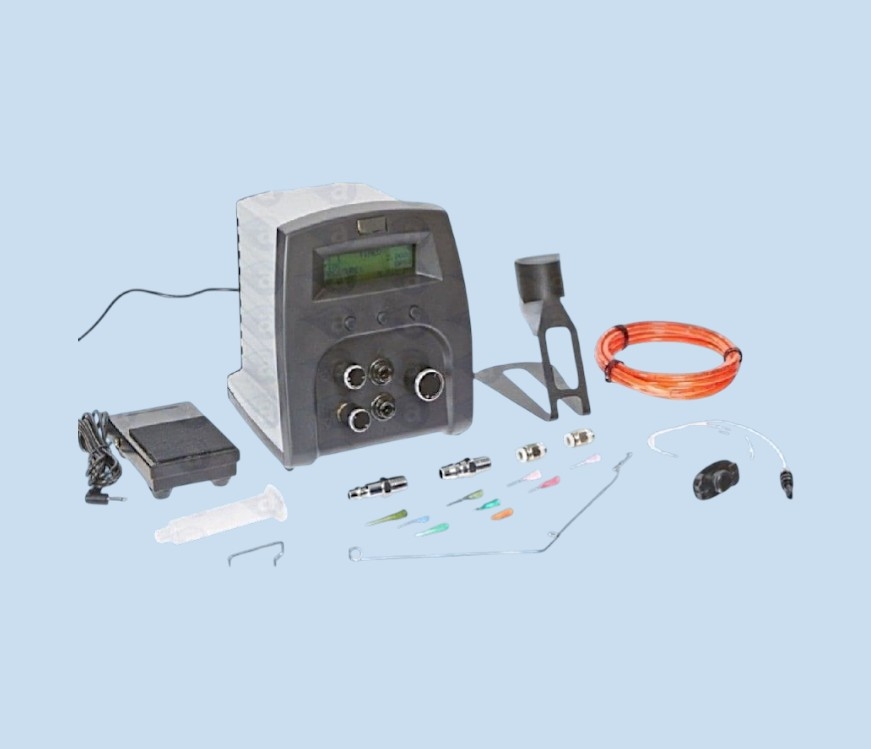

This compact dispenser sits on the bench and requires an air input from a compressor or factory mains supply. It comes with airline hose and fittings kit to make connection easy. It will work with any power supply and comes supplied with plugs for use in most countries. Includes a syringe stand, 10cc syringe and piston pack and tip kit selection.

Timer: 0.008 to 60 seconds
Output Pressure: Up to 15 psi
Input Pressure: 70-100 psi Size: 152 x 165 x 178mm
Weight: 1.2kg (2.6lb)
Input Voltage: 100-240 V AC
Warranty: 1 Year
Cycle Rate: Up to 1200 cycles/minute
Timing Tolerances: +/- 0.001%
Meets or Exceeds: CE, TUV-GS, NRTL

Data Sheet


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features
  • Manual, timer or teach modes
  • Foot switch or optional finger switch control
  • Timer 0.008 to 60 seconds adjustable
  • Suck back vacuum to prevent drips
  • Digital LCD display shows time, vacuum, pressure
  • Shot counter for productivity
  • Stores up to (10) time sequences
  • Universal 100V - 240V Power for worldwide use
  • Complete with accessory and airline kit
  • Use with syringe barrels 3cc to 55cc size
