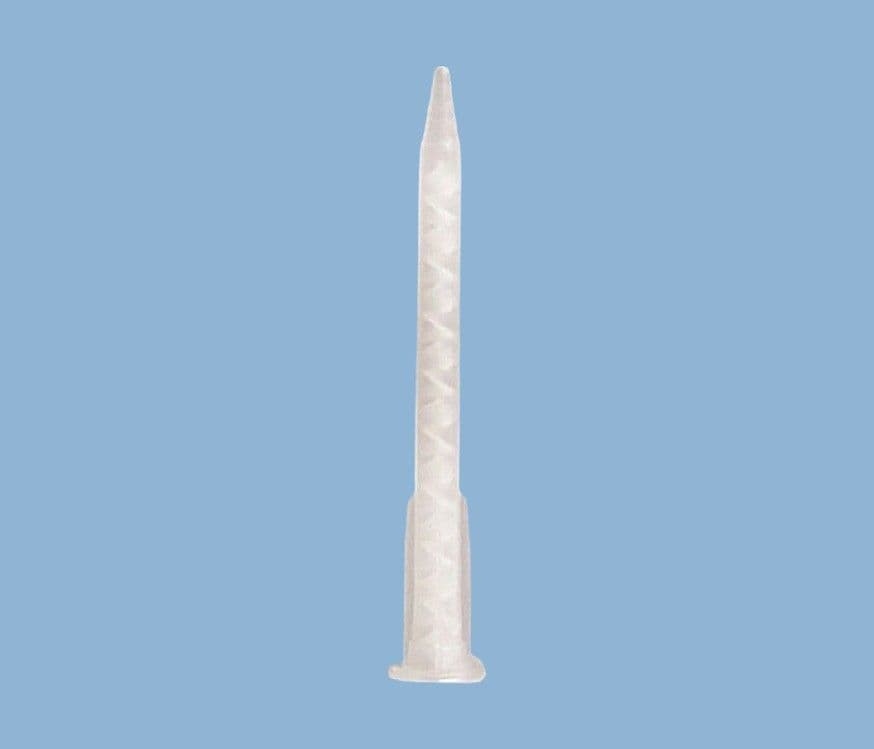

Bayonet inlet, helical static mixer nozzle for 50ml and 75ml dual componentcartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates. These mixer nozzles are suitable for all two-component materials. They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.

All items are industrial grade safe and silicone free. 5.4mm ID x 17 mixing elements. This nozzle is for use with 50ml style bayonet dual cartridges in 1:1 and 2:1 ratio. Pricing is for a pack of 100 nozzles. These parts ship direct from stock.

---

Part ID: MA5.4-17S
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 5.4mm
Outer Diameter: 8.0mm
No of Elements: 17
Length: 104.0 mm
Retained Volume: 1.68ml
Details: Industrial grade, Silicone Free

---

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

---

• Part ID: MA5.4-17S
• Material: Polypropylene
• Colour: Natural Outer, White Elements
• Inner Diameter: 5.4mm
• Elements: 17
• Details: Industrial grade, Silicone Free

High density moulded static mixer nozzles with bell attachment to cartridges or machines. Stepped end design for direct dispensing or attachment of reducer fitting when using small luer lock needle tips. Silicone free and industrial grade.

All nozzles are safe for use up to 100 psi pressure. Nozzles are not for medical use but are precision manufactured for  industrial use. All nozzles are certified silicone-free to prevent contamination of any liquids dispensed from them.
