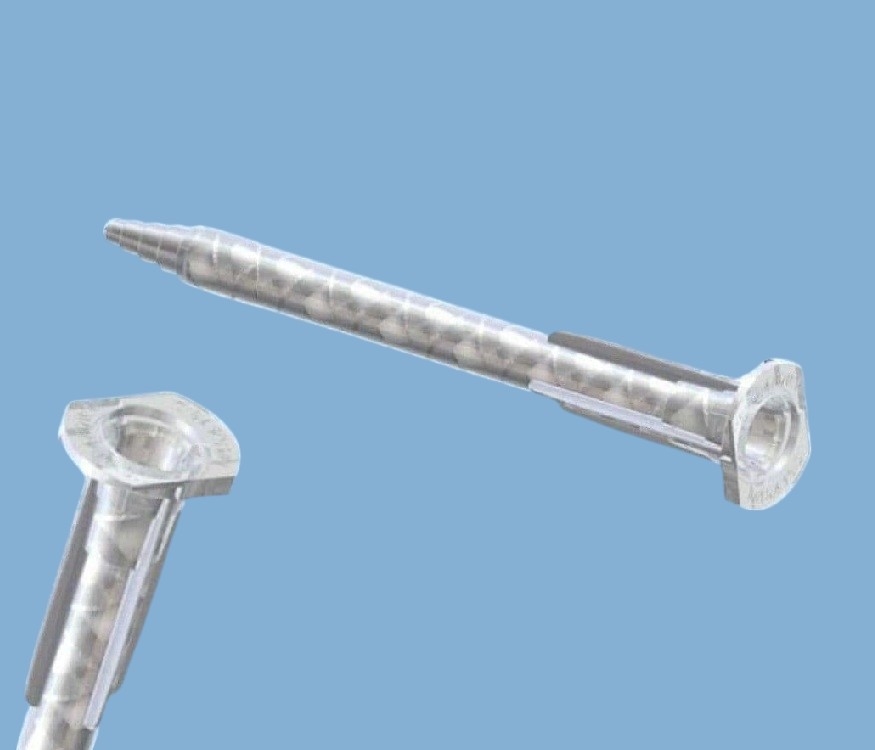

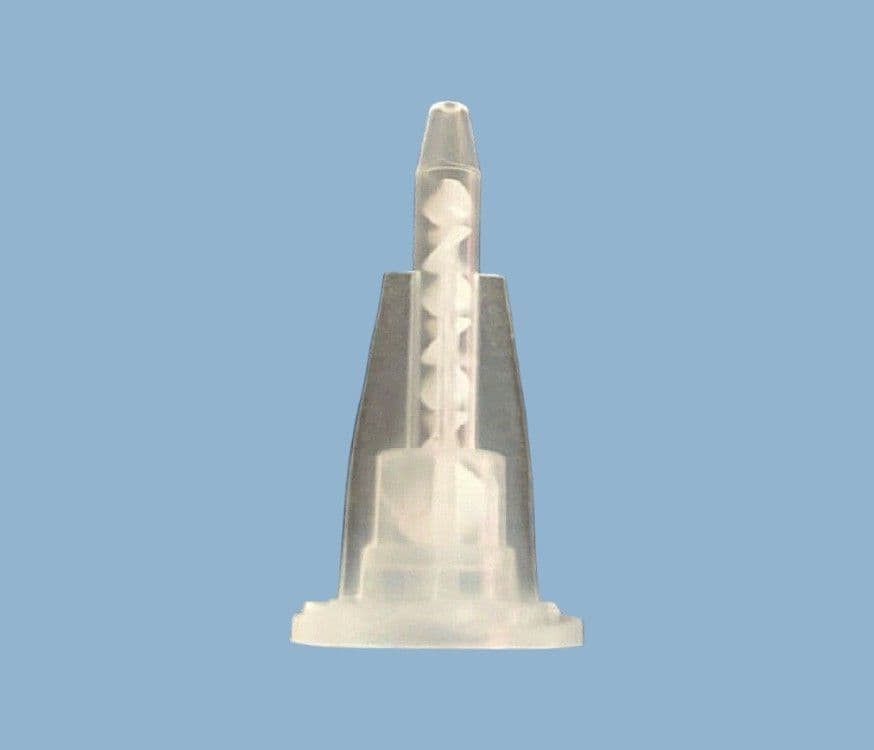

Bayonet inlet, helical static mixer nozzle for 50ml, 75ml and 100ml A-system dual component cartridges. Tapered outlet for high levels of control. These mixer nozzles are suitable for all two-component materials. They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. In a sealed pack of 100.

All items are industrial grade safe and silicone free. 3mm ID x 7 mixing elements. Use with 1:1/2:1 ratio bayonet style 50ml dual cartridges.

---

Part ID: MA3.0-07S - MAH 03-07S - 102361
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 3mm
Nozzle Length: 34mm
No. Of Mix Elements: 7
Volume: 0.24ml
Details: Industrial Grade Safe, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac Medmix

---

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

---

• Part ID: MA3.0-07S MAH 03-07S Material: Polypropylene
• Colour: Natural Outer, White Elements
• Inner Diameter: 3mm
• Nozzle Length: 34mm
• No. Of Mix Elements: 7
• Volume: 0.24ml
• Details: Industrial grade, Silicone Free

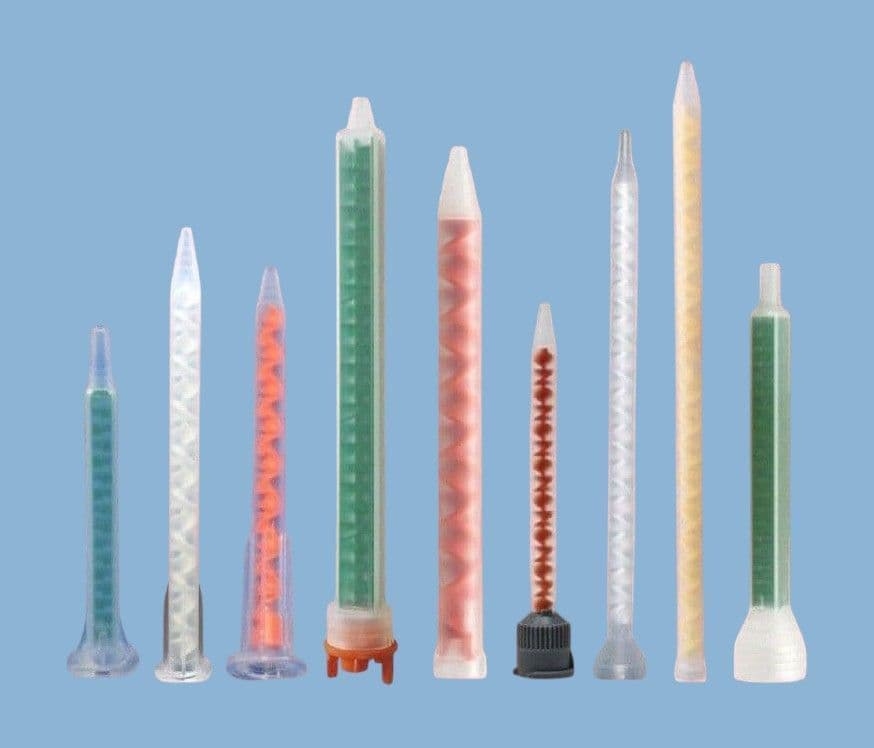

High density moulded static mixer nozzles with bell attachment to cartridges or machines. Stepped end design for direct dispensing or attachment of reducer fitting when using small luer lock needle tips. Silicone free and industrial grade.

All nozzles are safe for use up to 100 psi pressure. Nozzles are precision manufactured for  industrial use. All nozzles are certified silicone-free to prevent contamination of any liquids dispensed from them.
