8oz Syringe Filling Station AD80MF
8oz syringe barrel filling station AD80MF
AD80MF Syringe filling station

Price: £315.00 Exc VAT

Stock Status:(Out of Stock)

Availability:: Ships In 24 Hours
Product Code: AD80MF
Qty:

Description Technical Specs More Information

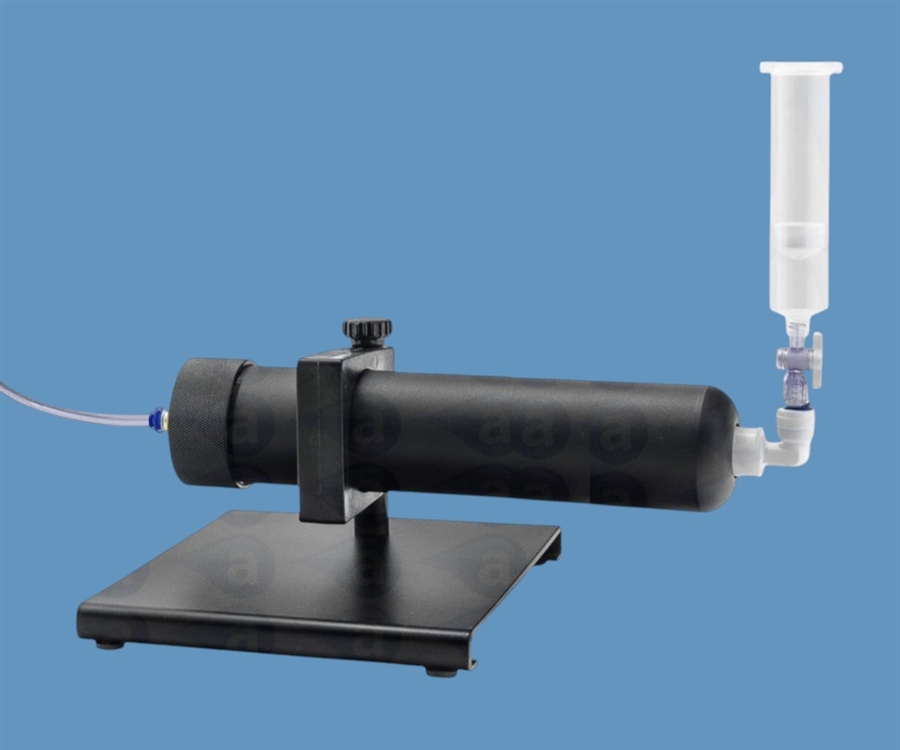

The model AD80MF loads a barrel directly from a 8oz (237cc/ml) cartridge. This barrel loader is connected to an air regulator and set to a pressure suitable for the material but less than 100psi (7 bar). A manual lever valve between the cartridge and the syringe allows fluid flow and is switched off when the material reaches the desired level. This system does not require connection to a dispenser. It will run directly from a compressed air supply.

The barrel attachment assembly is threaded to accept all luer lock barrels. This version of loader has a metal body retainer and cap. If used with a foot pedal dispenser, the lever valve is removed and the dispenser controls ON/OFF mode.
Part ID: AD80MF
Materials: Stainless Steel/ Nylon
Capacity: 8oz (237cc/237ml)
Weight: 1kg
Max Pressure: 100 PSI (7 Bar)
Warranty: 12 Months
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
  • For 6oz cartridges
  • Bottom fills syringes to reduce air
  • Supplied with component kits
  • Safe for use up to 100 psi
  • Quick and easy setup
  • Industrial grade safe
  • For pastes, gels, silicones and sealants
