2 Litre Pressure Pot 0-100 psi AD2000ML-STEL

AD2000ML-STEL

Price: £1,690.00 Exc VAT

Availability:: 1-2 Weeks
Product Code: AD2000ML-STEL

Qty:

Description

Technical Specs

More Information

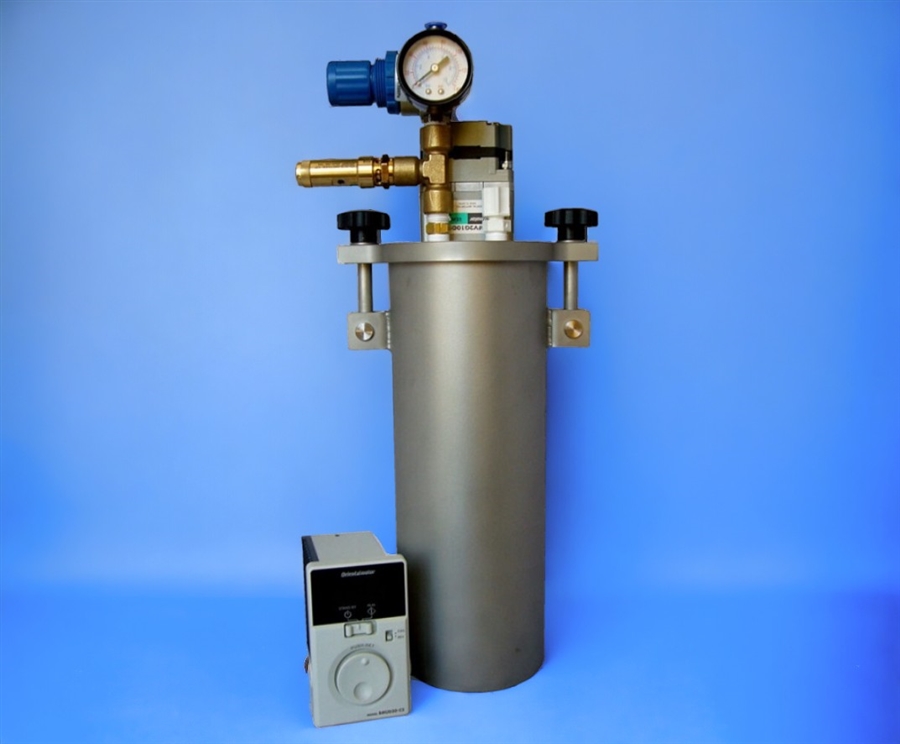

The AD2000ML-STEL pressure pot (maximum pressure 100 psi) is designed to accommodate all liquids and adhesives. The tank accommodates 6mm OD feed tubing with tube compression fittings for a continuous fluid path from the reservoir bottom inside the pot to the dispensing valve. Stainless steel body and lid. This version has an electric agitator built-in to ensure liquids do not settle out or congeal when in use and remains agitated.

Airtight seals ensure no leakage or air entrapment problems. Ideal for low viscosity liquids. 100 psi safety pressure easily handles fluid with viscosity up to 25,000 cps. Air port quick connect fitting and top ported outlet. Easy connect with 6mm push fit to any adjustable air regulator.

Colour: - Silver
Outer Size: - 104mm W x 431mm H
Inner Chamber: - 100mm W x 270mm H
Weight: - 3.2kg
Max Fluid Viscosity: - Liquids up to 25,000 CPS
Max Pressure: - 100 psi
Air Inlet: - 6mm OD Push Fit Tube
Material Outlet: - 6mm OD Tube Compression
Wetted Parts: - Type 303/304 Stainless Steel
Minimum Speed: 30 RPM
Maximum Speed: 450 RPM
Speed Under Load: 235 RPM
Air Consumption: 5.3 Litre/ Second
Torque: 10 Nm
Mixer: Stainless Steel Shaft/ Single Blade Empeller
Warranty: - 1 Year
Commodity Code: 84798997

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

100 psi - High operating pressure
Fluid Outlet Port - On the lid for easy access
Two Handles - For easy removal of lid
Two knobs to open/close lid - For positive and uniform seal
Pressure Gauge - Located on top for easy reading
Pressure Regulator - Located on top for ease of access Disposable polyethylene - Fluid lines can be changed quickly
Ferrule - Disposable with tubing eliminates clean-up
Hose Kit - Supplied with 6mm OD tube fittings
