500 Gram (1 lb) Pressure Pot TS1205
TS1205 Pressure Pot 500g
TS1205 Pressure Pot



Price: £349.82 Exc VAT

Availability:: Usually Ships in 24 to 72 Hours
Product Code: TS1205
Qty:

Description Technical Specs More Info

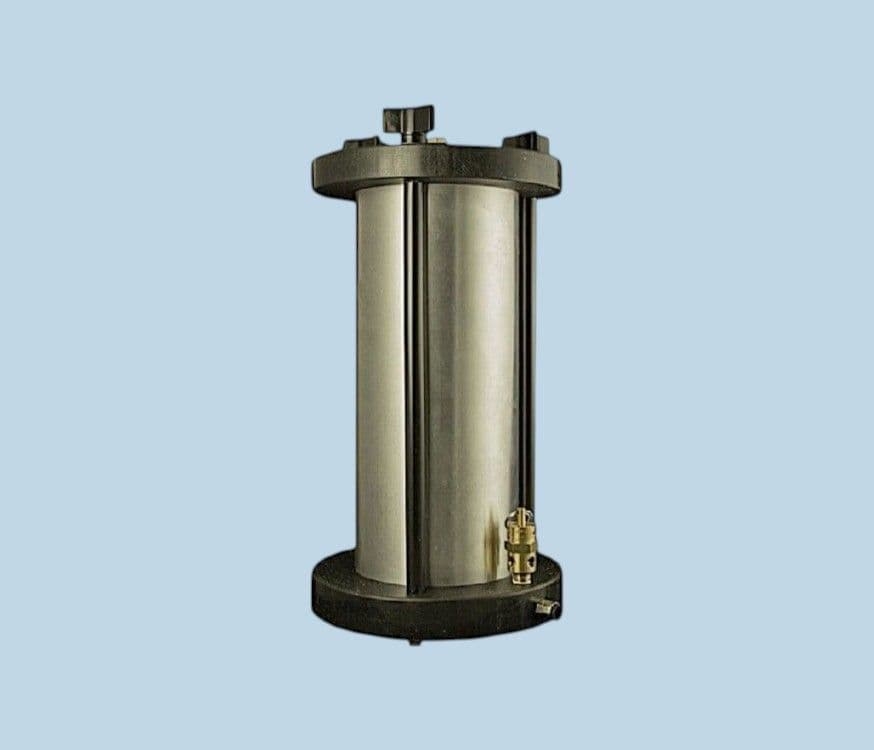

Pressure pot for cyanoacrylates, UV's, anaerobics and other low to medium viscosity fluids. No pouring needed; you just drop the bottle right into the tank, seal with wing nuts, and pressurise.

Includes an air port to pressurize the tank, and a pop-off valve set at around 75 psi for safety. Accepts adhesive bottles 250gm and 500gm or containers placed inside the chamber. Comes with 6mm OD tubing kit as well as a 6mm clear standard fluid lines.

Easy connect to any adjustable air regulator with the 6mm quick fitting. Thread on lid works with standard fluid lines but also allows for 1/4" OD fitting and 1/4" OD tubing.

Part ID: TS1205
Outer Size: 3.48" W x 9.5" H (88.6mm W x 241.3mm H)
Inner Chamber: 3.150" W x 7.25" H (80.01mm W x 184.15mm H)
Weight: 1.4kg
Viscosity Range: Liquids up to 25,000 CPS
Max Fluid Pressure: 60 psi ( 4 Bar)
Air Inlet: 6mm push fit
Material Outlet: 1/4" NPT or male luer to fluid line
Materials: Aluminium body and 6-6 Nylon (top and base)


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features
  • Ideal for cyanoacrylates, UV cure and adhesives
  • Small footprint
  • Up to 60 psi safety valve
  • Either 1/4" tubing or female luer lock fluid lines
  • Quick release air exhaust
  • 6mm push fit air in
  • 1 Year Warranty
