3 Axis Servo Gantry Robot 800mm x 600mm x 200mm Model F9800N
Gantry style 3 axis robot 800mm x 600mm work area.

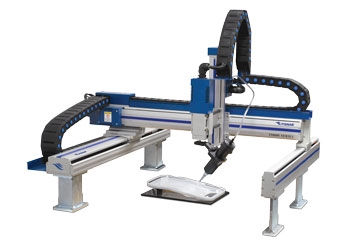

Gantry cantilever style robot

Alternative Views:

Availability:: Usually Ships in 1 to 2 Business Weeks
Product Code: F9800N

Description Technical Specs More Info
Robot applications

The model F9800N is a RoHS compliant 31.50 x 23.62 (800 x 600mm) gantry style robot. Its servo motor driven ball-screw design enables closed loop operation. A rugged aluminum structure helps prevent vibration while maintaining a compact style and functionality, providing a precision multiple axis robot ideal for conveyor fed applications, such as solar modules. The F9800N must be supported by main and idle supports on each side of the machine. These supports also set the height of the robot.

The in-line Cartesian robot operates above the dispensing application and is therefore is suited as an assembly robot for conveyors and work cells.Many projects also require all moving axes to be above the work station, the F9800N provides that capability. Resolution is 10 microns and interpolation is in all axes. The F9800N has been engineered to accept a tool weight of up to 7kg and 4kg for the 4-axes model.

Programming is simple with easy to follow English language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 16 I/O signal interface for connection to tools and controllers.

Make dots of adhesives Dotting
Make beads of adhesives Beading
Potting of components Potting
Bonding of components Bonding
Sealing of components Sealing
Dispense lubricants and greases Lubricating
  • Customized sizes available
  • Working Area of 31.49" x 23.62" (800 x 600mm)
  • Robust ball-screw servo motor drives
  • Ideal for form-in-place gaskets, adhesives, potting, solar junctions, stringers, coating, frame sealing and filling
  • Resolution 0.01mm
  • Performs continuous path and point-to-point motions
  • Self contained controller functions
  • Software tip alignment routine for quick program offsets when changing dispensing tips
  • Step-and-repeat functions _ program one object only for multiple identical objects
  • On board 100 programs, 3,000 points per program
  • Optional bar code scanning software
  • 1 Year Warranty - CE Certified
