3 Axis Servo Cantilever Robot 1000mm x 800mm x 200mm Model F8100N
Gantry 3 axis robot 1000mm x 800mm work area.

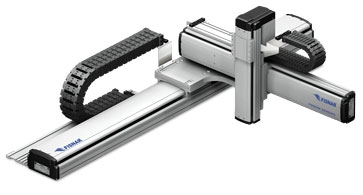

Gantry cantilever style robot



Alternative Views:



Availability:: Usually Ships in 2 to 4 Weeks
Product Code: F8100N
Qty:

Description Technical Specs More Info

Robot applications

The F8100N is a RoHS compliant 39.37" x 31.50" (1000 x 800mm) cantilever open access style robot. It's servo motor driven ball-screw design enables closed loop operation. A specially ruggedized aluminum structure prevents flexing and vibration while maintaining functionality, providing a precision multiple axis robot ideal for conveyor fed applications. Many projects also require all moving axes to be above the workstation, the F8100N provides that capability. Resolution is 1 micron and interpolation is in all axes. The F8100N has been engineered to accept a tool weight of up to 5 kg and 2kg for the 4-axes model.

Programming is simple with easy to follow English language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 16 I/O signal interface for connection to tools and controllers.

X/Y/Z Work area (mm): 1000 / 800 / 200
R-axis +/-360 Degree
Worktable load / Tool: 7 kg.
R-axis 4 kg.
Max. Speed X&Y / Z: 1000 / 1000 / 500 (mm/sec)
R-axis 360 Degree /sec
Repeatability: +/- 0.02mm/ Axis R-axis +/- 0.05 Degree
Resolution: 0.001mm R-axis +/- 0.001 Degree
Data Memory: 100 Programs 3,000 step / PGM
Processor: Main: 32bit, 900 mflops
Drive Sys. / Servo: 3 AC
Servo Motor 16Bit, 40mips
Motion Control: PTP & CP (3D Line, circle)
Teaching Method: Teach Pendant
I/O Signals: System I/O IN: 24, Out: 6 User I/O IN: 32, Out: 32
External Interface: RS232
Power Supply: AC220V - 500VA (600VA)

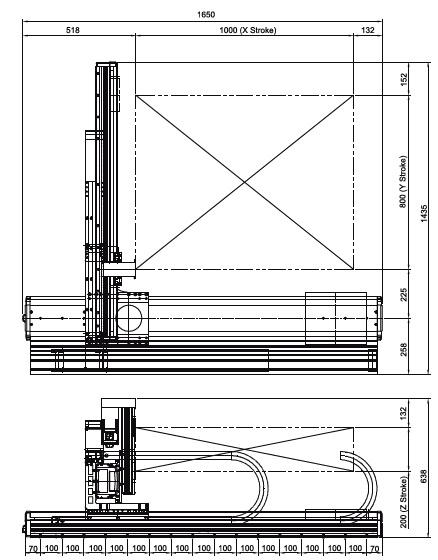

Dimensions (WxDxH): 1425 x 1630 x 638 mm
Weight: 254 lbs (115 kg)

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Applications
Make dots of adhesives Dotting
Make beads of adhesives Beading
Potting of components Potting
Bonding of components Bonding
Sealing of components Sealing
Dispense lubricants and greases Lubricating
Features
  • Customized sizes available
  • Robust ball-screw servo motor drives
  • Ideal for form-in-place gaskets, adhesives, potting, solar junctions, stringers, coating, frame sealing and filling
  • Resolution 0.01mm
  • Performs continuous path and point-to-point motions
  • Self contained controller functions
  • Software tip alignment routine for quick program offsets when changing dispensing tips
  • Step-and-repeat functions _ program one object only for multiple identical objects
  • On board 100 programs, 3,000 points per program
  • Optional bar code scanning software
  • 1 Year Warranty - CE Certified
