1 Litre Size Pressure Pot AD1000ML-STAG
AD1000ML-STAG Pressure Pot 1 Litre
AD1000ML-STAG

Alternative Views:
Price: £2,718.00 Exc VAT


Availability:: 1-2 Weeks
Product Code: AD1000ML-STAG
Qty:

Description Technical Specs More Information

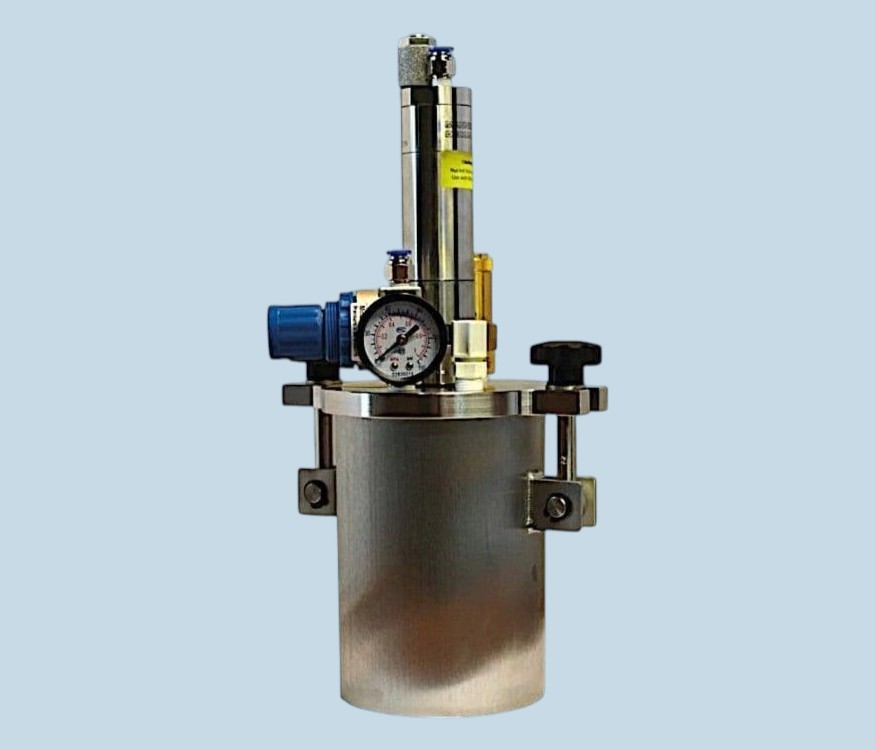

The AD1000ML-STAG pressure pot (maximum pressure 100 psi) is designed to accommodate all liquids and adhesives. The tank accommodates 6mm OD feed tubing with tube compression fittings for a continuous fluid path from the reservoir bottom inside the pot to the dispensing valve. Stainless steel body and lid. This version has a pneumatic agitator built-in to ensure liquids do not settle out when in use and remain agitated.

Airtight seals ensure no leakage or air entrapment problems. Ideal for use with bottles of cyanoacrylate and anaerobic adhesives. 100 psi safety pressure easily handles fluid with viscosity up to 25,000 cps. Air port quick connect fitting and top ported outlet. Easy connect with 6mm push fit to any adjustable air regulator.

Colour: - Silver
Outer Size: - 104mm W x 235mm H
Inner Chamber: - 100mm W x 135mm H
Weight: - 2.8kg
Max Fluid Viscosity: - Liquids up to 25,000 CPS
Max Pressure: - 100 psi
Air Inlet: - 6mm OD Push Fit Tube
Material Outlet: - 6mm OD Tube Compression
Wetted Parts: - Type 303/304 Stainless Steel
Minimum Speed: 30 RPM
Maximum Speed: 450 RPM
Speed Under Load: 235 RPM
Air Consumption: 5.3 Litre/ Second
Torque: 10 Nm
Mixer: Stainless Steel Shaft/ Single Blade Impeller
Warranty: - 1 Year
Commodity Code: 84798997
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features
  • 100 psi - High operating pressure
  • Fluid Outlet Port - On the lid for easy access
  • Two Handles - For easy removal of lid
  • Four knobs to open/close lid - For positive and uniform seal
  • Pressure Gauge - Located on top for easy reading
  • Pressure Regulator - Located on top for ease of access
  • Relief Valve with Pull Ring - To depressurise after usage
  • Disposable polyethylene - Fluid lines can be changed quickly
  • Ferrule - Disposable with tubing eliminates clean-up
  • Hose Kit - Supplied with tank
  • Tube Sizes - 1/4", 3/8" and 4mm fittings available
