10 Litre Pressure Pot 0-100 psi AD1000CL-ST
AD1000CL-ST Pressure Pot 10 Litre
AD1000CL-ST



Alternative Views:


Price: £998.50 Exc VAT

Availability:: Usually Ships in 2 to 3 Weeks
Product Code: AD1000CL-ST
Qty:

Description Technical Specs More Information

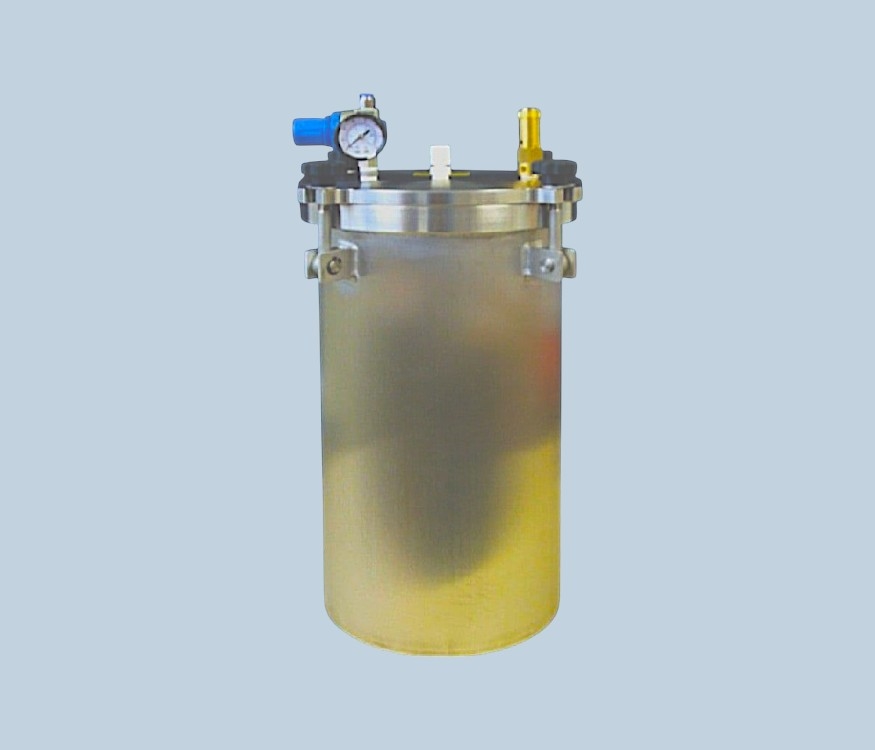

High quality stainless steel pressure pot (pressure up to 100 psi) designed to accommodate all solvents and adhesives, as well as cyanoacrylates and UV's direct from the manufacturers bottles or with liquid poured directly into the chamber. It has a stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the point of use but can use plastic fittings if dispensing reactive adhesives. Airtight seals ensure no leakage or air entrapment problems. 100 psi operating pressure easily handles fluid with viscosity up to 35,000 CPS.

The pressure gauge and pressure regulator are located on top for easy reading and access. When dispensing adhesives, a container or bottle or liner can be placed inside the tank chamber. Main tank body is type 304 stainless steel and the lid is type 303 stainless steel. The outlet port for this tank is at the centre of the tank lid.

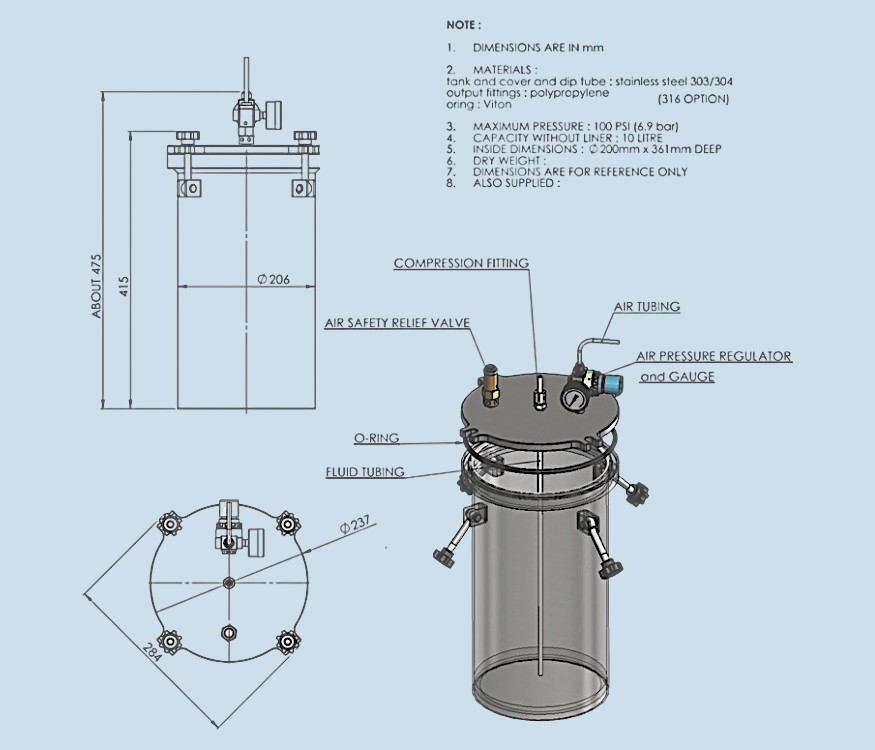

Material: Type 304 Stainless Steel Body/ Type 303 Stainless Steel Cap
Colour: Silver
Inner Chamber: 200mm Inside Diameter, 400mm Height
Tank Thickness: 3mm
Lid Thickness: 15mm
Air Inlet Thread: 1/4 Inch
Weight: 15.5 kg
Max Pressure: 100 psi (6.9 Bar) - Safety Valve Set at 7 bar
Working Rated Vacuum: 0 to -1 bar at from 0 C to 38 C
Closure: 4 stainless steel swing bolts and black plastic star grips
Closure Seal: Viton O-ring
Internal finish Brushed, welds as welded
External finish Brushed, welds as welded

LID
12mm thick stainless steel
1 INPUT connection 1/4" NPT with pressure regulator & gauge
1 OUTPUT connection 1/4" NPT with compression fitting 6mm
1 OUTPUT connection 1/4" NPT with safety relief valve
Warranty: 1 Year
Details: CE certified and Rohs Compliant
Certification: ASME Section VIII-01, Div. 1 Directive 2014/68/EU Article 4 Clause 3 For group 2 liquids
Commodity Code: 90289090

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.




Features
  • 100 psi - High operating pressure
  • Fluid Outlet Port - On the lid for easy access
  • Two Handles - For easy removal of lid
  • Four knobs to open/close lid - For positive and uniform seal
  • Pressure Gauge - Located on top for easy reading
  • Pressure Regulator - Located on top for ease of access
  • Relief Valve with Pull Ring - To depressurise after usage
  • Disposable polyethylene - Fluid lines can be changed quickly
  • Ferrule - Disposable with tubing eliminates clean-up
  • Hose Kit - Supplied with tank
  • Tube Sizes - 1/4", 3/8" and 4mm fittings available
