Mix Nozzle 5.0mm ID x 32 EL MS05-32T pk/100
5mm ID x 32 element Static Mixer Nozzle LL

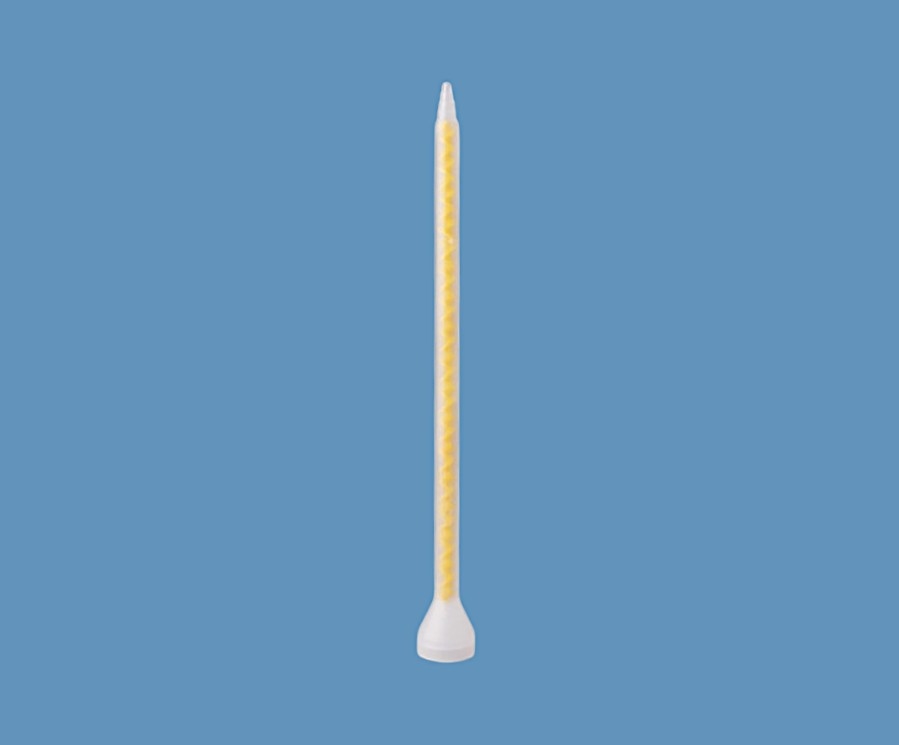

MS05-32T Static Mixer Nozzle



Alternative Views:


Price: £112.00 Exc VAT

Availability:: Ships In 24 Hours
Product Code: MS05-32T
Qty:

Description Technical Specs More Information


MS-Series (Yellow) Static Mixers for Machine Mixer Systems

Static Mixers attach to both meter, mix, and dispense machines and to dual cartridges. Static Mixers provide an even mixing of two-part materials without the hassle of hand mixing.

The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene.

Part ID: MS05-32T
Material: Polypropylene
Colour: Natural Outer, Yellow Elements
Inner Diameter: 5mm (0.197")
Outer Diameter: 8mm (0.315")
Mixer Length: 188mmm (7.40")
Nozzle Tip Diameter: 1.5mm (0.1")
No. of Elements: 32
Retaining Method: 7/8"-9 Thread
Material Volume: 2.8ml
Max. Pressure: 33 BAR
Commodity Code: 39269097


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Features
  • Industry standard for 200/400ml cartridges or mix machines
  • Silicone-free plastics
  • Safe for use to 100 psi
  • Luer lock tip end
  • Supplied in sealed packs of 50
