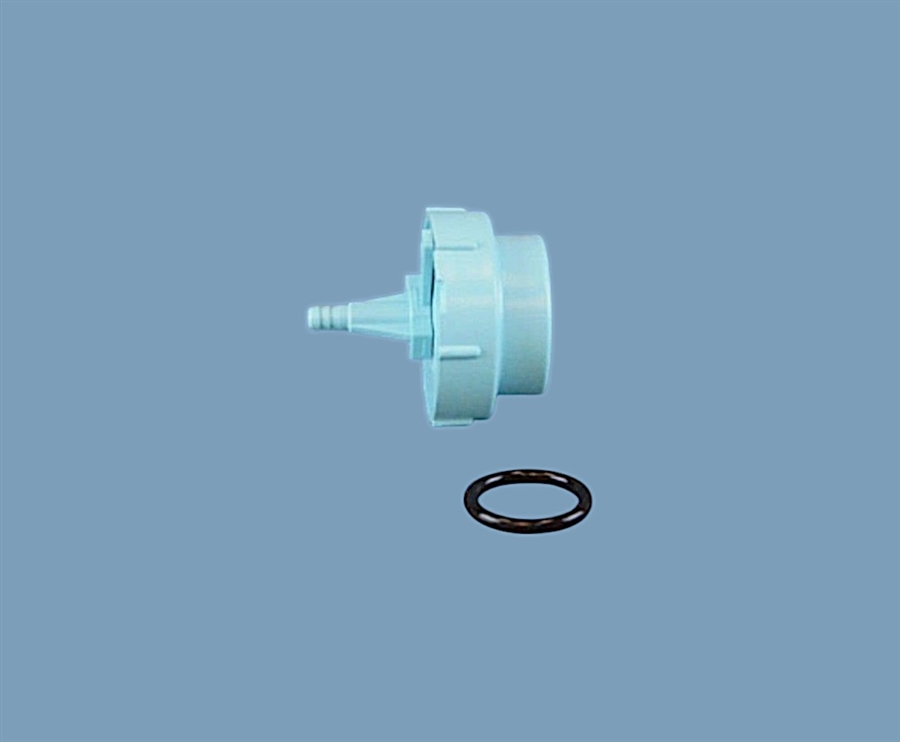

The connecting link between the pneumatic syringe dispenser and the syringe barrel. Industrial grade safe for use to 100 psi air pressure. Supplied with a standard EPR black rubber O-ring to ensure a leak free attachment to the syringe. Includes male quick connect for connection to all standard pneumatic dispensers. Includes crimp to secure tubing.

This adapter receiver assembly connects to the 3cc size 400 series syringe barrels part code 403LL-1.

---

MPN: 900-350-R
Material: Polypropylene head
Colour: Blue Head
Size: 3cc Barrels only
Details: Silicone Free, Safe to 100psi
Commodity Code: 84248940
Brand: TSI

---

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

---

• Material: Polypropylene head
• Colour: Blue Head
• Size: 3cc Barrels only
• Details: Silicone free, safe to 100psi

Adapter assemblies provide a leak free air feed from dispenser to syringe barrel at up to 100 psi. The o-ring on the head should be kept clean and replaced if it is damaged or contaminated. Use this adapter for syringe barrels 403L-1 only.
