Mix Nozzle 5.4mm ID x 17 EL MA5.4-17L pk/100
Product Code: MA5.4-17L
Price: £37.00
Description

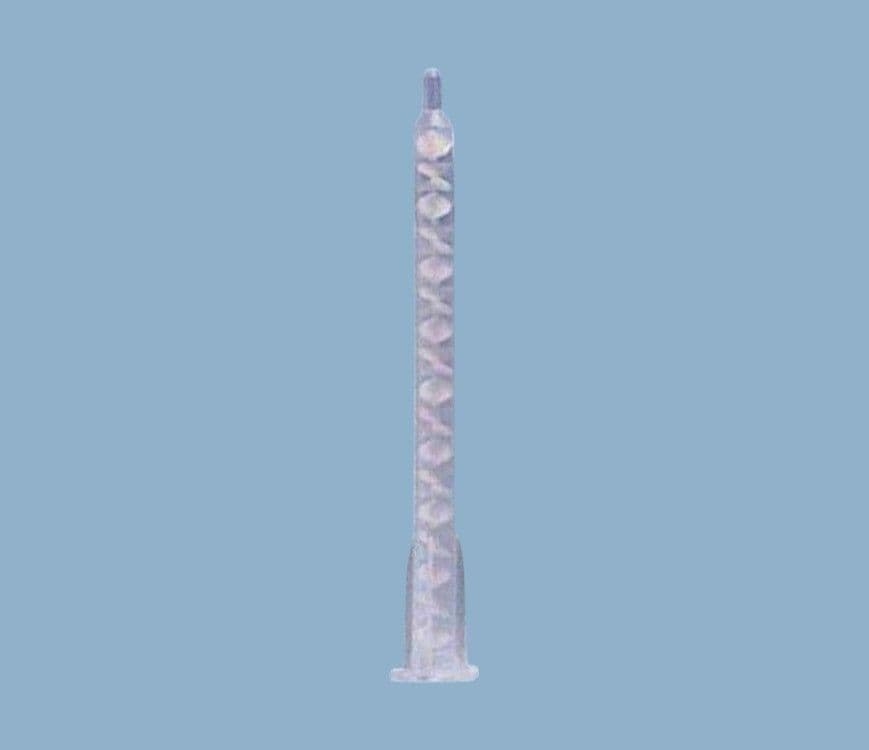

MA5.4-17L - Static Mixer Nozzle for Dual Component Cartridges
Precision mixing nozzle designed for two-part adhesives and sealants
Product Overview
The ADL MA5.4-17L is a high-performance static mixer nozzle engineered for dual component cartridges using a 1:1 or 2:1 mix ratio. With a bayonet twist-lock inlet and luer slip outlet, it enables consistent mixing and adaptable flow control. Ideal for demanding industrial applications requiring accurate two-part dispensing. The luer slip allows for precision dispensing tips to be attached.
This nozzle features a helical round body with white mixing elements, ensuring dynamic and homogeneous material blending. Compatible with 50ml, 75ml, and 100ml A-System cartridges.
Key Features and Benefits
- Helical Static Mixing: 17 internal white mix elements for superior blend results
- Twist-Lock Bayonet Inlet: Quick, secure cartridge attachment
- Luer Slip Outlet: Push on dispensing tips for more precision
- High-Grade Polypropylene: Durable, chemical-resistant construction
- Batch Traceability: Supplied in labelled packs with full traceability
- Clean Dispensing: Industrial grade safe and 100% silicone-free
Technical Specifications
- Part ID: MA5.4-17L
- Material: Polypropylene Body
- Colour: Natural Outer, White Elements
- Outlet: Luer Slip
- Inner Diameter: 5.4mm
- Outer Diameter: 8mm
- Nozzle Length: 104mm
- No. Of Mix Elements: 17
- Retained Volume: 1.7ml
- Maximum Pressure: 100 PSI
- Details: Industrial Grade Safe, Silicone Free
- Commodity Code: 39269097
- Brand: ADL
Compatible ADL Dual Cartridge Options
- 50ml - 1:1 - Part Code AD451000
- 50ml - 2:1 - Part Code AD452013
- 75ml - 1:1 - Part Code AD475100
- 100ml - 1:1 - Part Code AD100011
- Epoxy Materials Filled in Bayonet Attachment Cartridges
Pack Sizes Available
Packaged in sets of 100 nozzles for scalable use, from bench-top prototyping to high-volume assembly. All packs are sealed and batch-labelled for inventory control and compliance tracking.
Industry Applications
Perfect for mixing and dispensing two-part epoxies, polyurethanes, silicones, sealants, and gels in electronics, automotive, aerospace, medical device assembly, and general manufacturing.
Fluid Dispensing Equipment
Adhesive Dispensing Ltd offers complete systems for dispensing fluids of all viscosities - from watery activators and primers to heavy pastes and gels - ensuring precision delivery, waste reduction, and operator safety.
Features
- Industry standard for 50/75/100ml cartridges
- Silicone-free plastics
- Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
