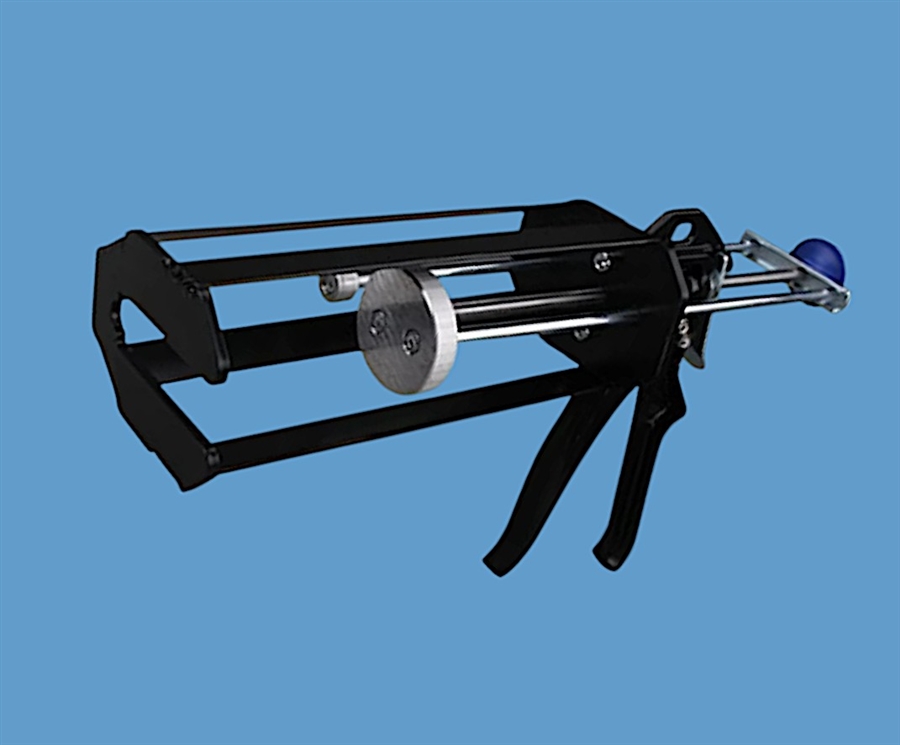

400ml Manual Dual Gun 10:1 Ratio AD400MBL-10
Product Code: AD400MBL-10
Price: £82.00
Description
Super lightweight manual twin cartridge gun. Suitable for use with 400ml dual cartridges.
For epoxies, adhesives and many other materials that are supplied in 400ml (490ml) type dual side-by-side 10:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of these dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. This is a very lightweight yet robust hand trigger operated cartridge dispenser.
Use with Mixpac, TAH type and other 400ml (490ml) 10:1 dual side-by-side cartridges. Top loading system allows more versatility with cartridge insertion and with cartridge size. The AD Series guns are covered by a 1 year warranty and feature a wear compensating device.
Features:
14:1 Thrust Ratio
For Use with 400ml (490ml) 10:1 Dual Ratio Cartridges
Precision Sintered Friction Plate
Easy Release Star-Burst Reverse Gripping Plate
Lightweight Materials
Slide in/Top Load
Specifications:
Lightweight: 1.25kg
Cartridge Holder Length: 185mm
Maximum Thrust: 1.5kN (150kg)
Handle Material: High Density Nylon
Frame Material: Metal
For Cartridge Capacity: 400mL (490 mL)
For Cartridge Mix Ratio: 10:1
Mechanical Advantage Ratio: 14:1
Viscosity: Low
Standard Colour: Black
Commodity Code: 39269097
Origin: Asia
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- 14:1 Thrust Ratio
- For Use with 400ml (490ml) size Cartridges Mix Ratio of 10:1 Only Precision Sintered Friction Plate
- Easy Release Star-Burst Reverse Gripping Plate
- Hammered Finish Zinc Alloy Handle with Comfort Grip
- Slide in/Side Load
