400ml Manual Dual Gun 1:1 Ratio AD400-1
Product Code: AD400-1
Price: £39.50
Description

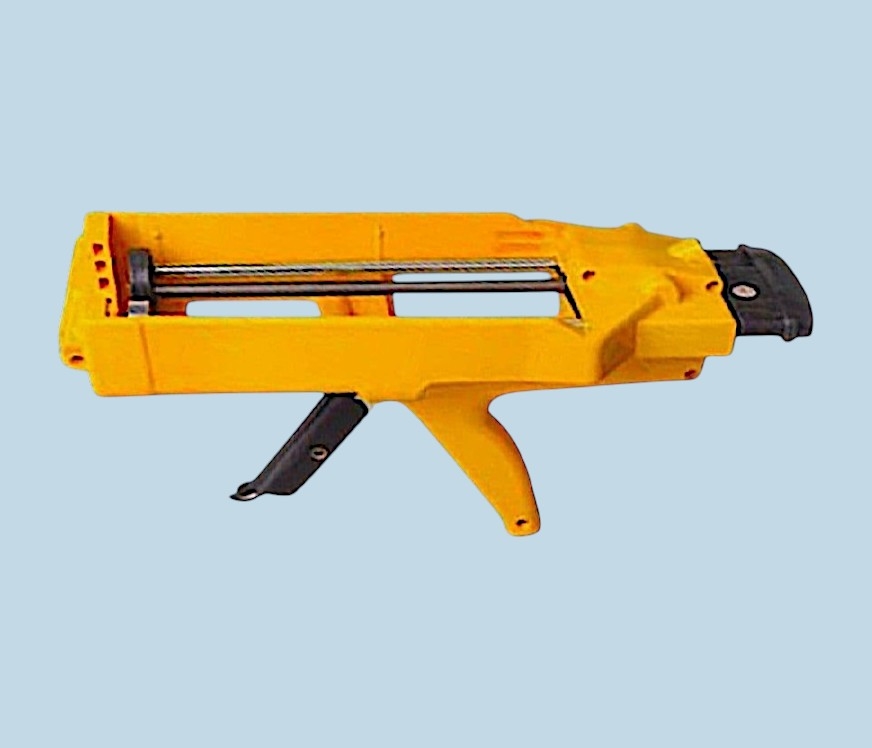

This dispenser is used for epoxies, adhesives, silicones, polyurethanes, potting compounds, resins and other materials that are supplied in 400ml dual side-by-side 1:1 ratio cartridges with the use of a static mixing nozzle. The super lightweight yet durable construction of these dual component manual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.
Use with Mixpac, TAH type and other 400ml 1:1 dual side-by-side cartridges. Top loading system allows more versatility with cartridge insertion and with cartridge size. This applicator is suited to applying low to medium viscosity materials. It has an 12:1 mechanical thrust ratio. This is a very lightweight hand trigger operated cartridge gun supplied ready to use with your 400ml 1:1 ratio dual cartridges. The AD series guns are covered by a 1 year warranty and feature a wear compensating device. Supplied boxed with user guide.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Use with Mixpac, TAH type and other 400ml 1:1 dual side-by-side cartridges. Top loading system allows more versatility with cartridge insertion and with cartridge size. This applicator is suited to applying low to medium viscosity materials. It has an 12:1 mechanical thrust ratio. This is a very lightweight hand trigger operated cartridge gun supplied ready to use with your 400ml 1:1 ratio dual cartridges. The AD series guns are covered by a 1 year warranty and feature a wear compensating device. Supplied boxed with user guide.
Specifications
Part Code: AD400-1
Cartridge Capacity: 400mL
Weight 0.9kg
Holder Length: 185mm
Maximum Thrust: 1.2kN (120kg), 2.1mm stroke
Tool Material: Reinfoced Nylon, Aluminium and Steel
Force Ratio: 12:1
Cartridge Ratio: 1:1 Only
Colour: Yellow
Viscosities: Low to Medium
Warranty: 1 Year
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Part Code: AD400-1
Cartridge Capacity: 400mL
Weight 0.9kg
Holder Length: 185mm
Maximum Thrust: 1.2kN (120kg), 2.1mm stroke
Tool Material: Reinfoced Nylon, Aluminium and Steel
Force Ratio: 12:1
Cartridge Ratio: 1:1 Only
Colour: Yellow
Viscosities: Low to Medium
Warranty: 1 Year
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- 12:1 Thrust Ratio
- For Use with 400ml size Cartridges Mix Ratio of 1:1 Only Precision Sintered Friction Plate
- Easy Release Star-Burst Reverse Gripping Plate
- Hammered Finish Zinc Alloy Handle with Comfort Grip
- Slide in/Side Load
