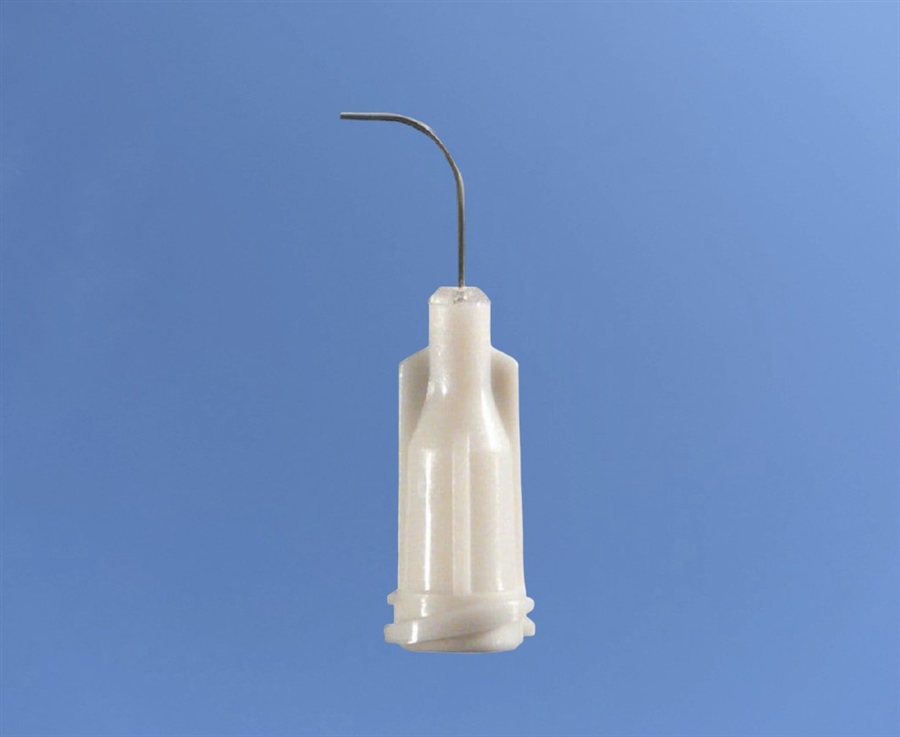

28 Gauge 90 Bend Tip Clear AD72805090-1000
Product Code: AD72805090PK
Price: £210.00
Description
Precision stainless steel burr-free tube to moulded colour coded polypropylene hub with double-helix luer lock. Use this tip for dispensing adhesives, solvents, glues, primers, activators and others. A 90 degree angle bent stainless shaft length of 0.5". UV filter hub protects UV cure adhesives.
The AD needle series consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi. Use these tips for applying most liquids for high precision controlled dispensing.
Tips are colour coded for gauge size. The tip features a tapered internal design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids and pastes.
Part ID: AD72805090-1000
Gauge Size: 28
Materials: Polypropylene/ Stainless Steel
Hub Colour: White
Tube ID: 0.007 - 0.19 mm
Tube OD: 0.018" - 0.39 mm
Tube Length: 0.50" - 12.7 mm
Maximum Pressure: Up to 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code; 39269097
Brand: Adhesive Dispensing Ltd
Features
- Precision burr free tubing 0.5" length
- Silicone free safe plastics
- Safe for use up to 100 psi
- Double helix luer lock colour coded hubs
- UV filter plastic hubs
- For all fluids, adhesives and solvents
