14G PTFE Tip 45 Bend 1" 5114TLC-1-45 pk/50
Product Code: AD5114TLC-1-45
Price: £18.00
Description

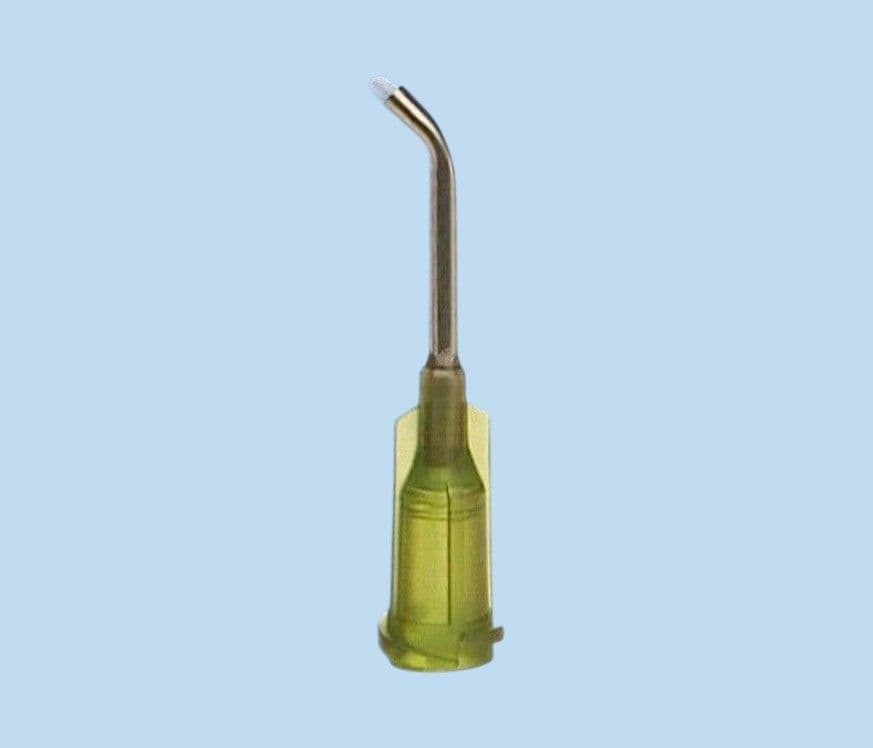

Precision crimped PTFE-Lined dispense tip ideally suited to clog-free dispensing of Cyanoacrylate adhesives and other low to medium viscosity fluids. A 45 degree bend stainless tube length of 1" with inner PTFE tube. Colour coded double helix locking hub. The PTFE Lined Tip is suited to the controlled application of Cyanoacrylates, Solvents, Activators, Primers and other liquids.
The crimped PTFE inner tube prevents reactive Cyanoacrylates from clogging during application. The PTFE tube extends 1/8" from the stainless steel tube to prevent damage to sensitive substrates. Supplied in sealed boxes of 50. This tip features a double helix luer locking pink hub for easy identification. The tips are silicone free and chloride free to prevent contamination of any liquid dispensed. Tips are colour coded for gauge size. Angled tip assists with a wide range of dispensing applications for reach.
The tip features a slightly tapered internal design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids.
This new wider diameter tip is ideal for use with Cyanoacrylate gels.
Part ID: AD5114TLC-1-45B
Material: PTFE/ Polypropylene/ Stainless Steel
Hub Colour: Olive
Inner Diameter: 0.055" - 1.40mm
Attachment: Double Helix Luer Lock
Tube Length: 1" - 25.4mm
Details: Industrial Grade, Silicone Free
Commodity Code: 84249020
Brand: Adhesive Dispensing Ltd
Pack Size: 50 Pieces
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
The crimped PTFE inner tube prevents reactive Cyanoacrylates from clogging during application. The PTFE tube extends 1/8" from the stainless steel tube to prevent damage to sensitive substrates. Supplied in sealed boxes of 50. This tip features a double helix luer locking pink hub for easy identification. The tips are silicone free and chloride free to prevent contamination of any liquid dispensed. Tips are colour coded for gauge size. Angled tip assists with a wide range of dispensing applications for reach.
The tip features a slightly tapered internal design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids.
This new wider diameter tip is ideal for use with Cyanoacrylate gels.
Part ID: AD5114TLC-1-45B
Material: PTFE/ Polypropylene/ Stainless Steel
Hub Colour: Olive
Inner Diameter: 0.055" - 1.40mm
Attachment: Double Helix Luer Lock
Tube Length: 1" - 25.4mm
Details: Industrial Grade, Silicone Free
Commodity Code: 84249020
Brand: Adhesive Dispensing Ltd
Pack Size: 50 Pieces
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Prevents Cyanoacrylate clogging
- Zero damage to substrates
- Compatible with wide range of fluids
- Industrial safe to 100 psi
- Silicone and chloride free
- Precision crimp to Teflon tube
- Double helix luer colour coded hubs
