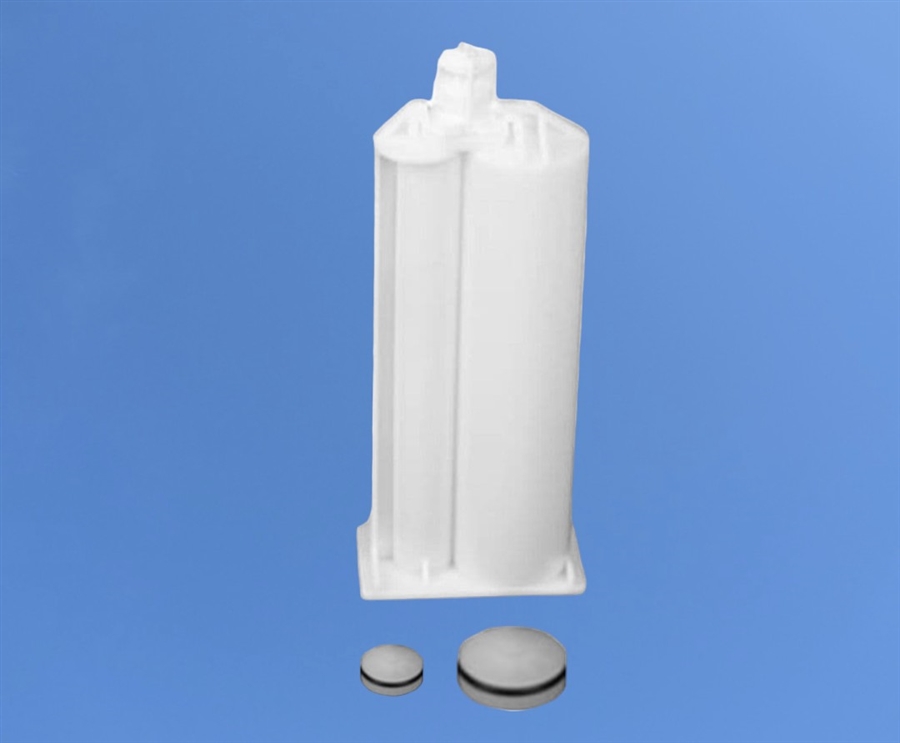

50ml dual cartridge sets 4:1 ratio 454000-02 pk/50
Product Code: 454000-02
Price: £57.50
Description
Cartridge Sets for Two-Component Adhesives
The dual system is available in 50ml, 200ml and 400ml sizes. All 3 systems - 50ml, 200ml and 400ml, are available in 1:1, 2:1, 4:1 and 10:1 mix ratios and take a variety of mixer nozzles. Both components are stored in the two chambers of the dual cartridge system and are then dispensed simultaneously through the static mixer, where thorough mixing takes place.
The static mixer nozzles are available in different sizes with different volumes and a variety of mixing elements. One of the main benefits of the system is that not all of the contents of the cartridge have to be mixed at a time. The cartridge can be easily closed and stored for further use, without the material curing. Packs include the cartridge, wiper pistons and cap seals. Compatible with industry standard guns.
Dual cartridges are supplied in packs of 50 and include tip cap seal and 100 of the correct ratio pistons. Pistons are the lip-seal with outer O-ring type.
Part ID: 454000-02
Material: Polypropylene
Colour: White Cartridge/ White Pistons/ White Cap
Size: 50ml (Actual Volume Total 42ml for 4:1 Ratio)
Maximum Pressure: 100 PSI
Ratio: 4:1 (by volume)
Outlet: Bayonet Nozzle Attachment
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
The dual system is available in 50ml, 200ml and 400ml sizes. All 3 systems - 50ml, 200ml and 400ml, are available in 1:1, 2:1, 4:1 and 10:1 mix ratios and take a variety of mixer nozzles. Both components are stored in the two chambers of the dual cartridge system and are then dispensed simultaneously through the static mixer, where thorough mixing takes place.
The static mixer nozzles are available in different sizes with different volumes and a variety of mixing elements. One of the main benefits of the system is that not all of the contents of the cartridge have to be mixed at a time. The cartridge can be easily closed and stored for further use, without the material curing. Packs include the cartridge, wiper pistons and cap seals. Compatible with industry standard guns.
Dual cartridges are supplied in packs of 50 and include tip cap seal and 100 of the correct ratio pistons. Pistons are the lip-seal with outer O-ring type.
Part ID: 454000-02
Material: Polypropylene
Colour: White Cartridge/ White Pistons/ White Cap
Size: 50ml (Actual Volume Total 42ml for 4:1 Ratio)
Maximum Pressure: 100 PSI
Ratio: 4:1 (by volume)
Outlet: Bayonet Nozzle Attachment
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Silicone free Industrial grade safe to 100 psi
- Supplied with pistons and caps
- In sealed packaging
- Quick nozzle attachment
