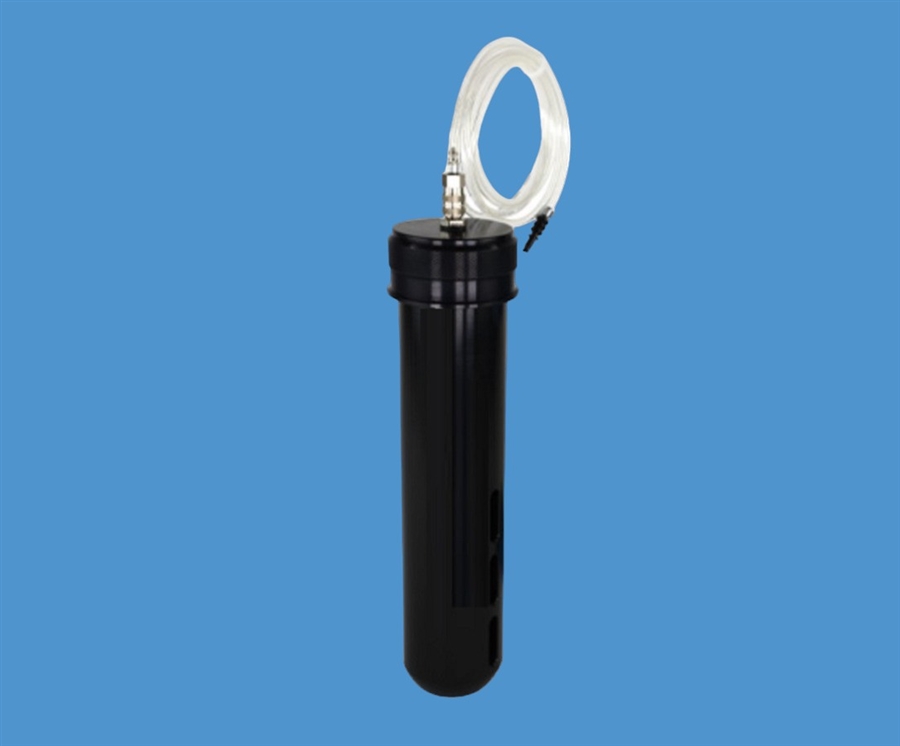

32oz Cartridge Retainer Kit CR910
Product Code: CR910
Price: £550.00
Description
Cartridge retainers can be adapted to work with our full range of cartridges to provide a pressured feed of adhesives, liquids and pastes when dispensing. The CR910 cartridge retainer has been developed with a new optimised seal design, guaranteeing greater seal performance and durability by sealing directly onto the inside of the inserted cartridge.
Fully compatible to accommodate all 32 ounce size cartridges, this high-grade anodised alloy retainer and cap ensures a safe and comfortable dispensing pressure of up to 100psi (6.9Bar).
The CR910 is incredibly versatile and can be used as a pressurised fluid reservoir system when working in conjunction with a dispense valve. The CR910 has a single shut-off, quick release air input connector for ensuring safe and easy disconnection when changing fluid cartridges. This air input connector eliminates the need for an isolating compressed air feed, every time the fluid cartridge is changed, thus allowing for quicker changeover times.
Part ID: CR910
Materials: Nylon/ Polypropylene/ Aluminium
Colour: Black
Cap Attachment: Threaded
Maximum Pressure: 100 PSI (7 BAR)
Outer Diameter: 68mm
Inner Diameter: 65mm
Length: 375mm
Warranty: 1 Year
Commodity Code: 84679200
Data Sheet: https://adhesivedispensing.cld.bz/CR910-32-Ounce-Cartridge-Retainer-TDS-2023
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Robust construction
- Compatible with all 32oz cartridges
- Use with our cartridges and plungers part TS32CKIT Resistant to aggressive fluids and solvents
- Safe for use to 50 psi pressure
- Supplied in sealed packaging ready to use
- Includes air hose and fittings to connect to any pneumatic dispenser
