18G 0.50" Long Tip Green TE718150F05-1000
Product Code: TE718150F05-1000
Price: £419.00
Description

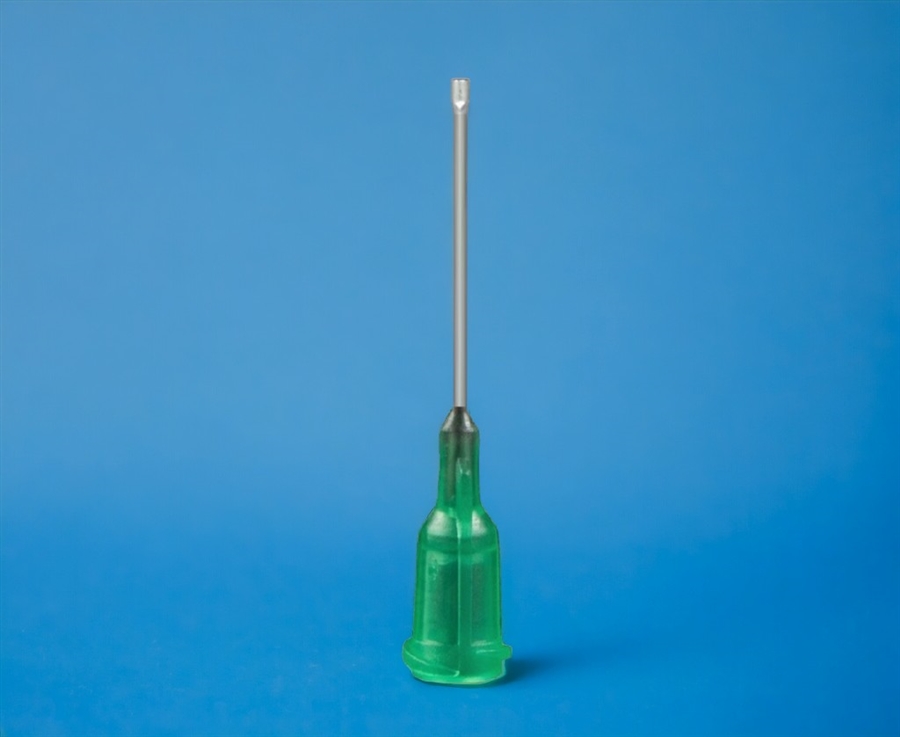

The TE needle series consist of a stainless-steel shaft with a double
helix polypropylene hub. This premier line of dispensing needles is burr-free
and electro-polished shaft for unobstructed and consistent material flow. These
tips are suitable for dispensing most fluids, pastes, resins, adhesives and
solvents. All dispensing tips are certified silicone-free, chloride-free and
industrial grade safe for use to 100 psi fluid pressures.
Material: Polypropylene/ Stainless Steel
Hub Colour: Green
Hub ID: 0.03" - 0.84mm
OD: 0.050" - 1.27mm
Tube Length: 1.50" - 38.1mm
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 90289090
Brand: Techcon
Adhesive Dispensing Ltd provide a wide range
of equipment options for dispensing almost all assembly fluids - from watery
liquids, solvents, primers and activators through to thick pastes, sealants,
silicones, gels and epoxies.
Oval type nozzles have a slit instead of a standard circular hole and so apply a ribbon type deposit when dispensing beads. As liquid or paste is dispensed, it can be applied to surfaces with a flatter deposit.
Tips are colour coded for gauge size. The tip features an oval shaped end where the flattened tube allows ribbon deposits or thin spread deposits to be made. These tips are supplied in sealed packs of 1000 with batch codes and labels.
Material: Polypropylene/ Stainless Steel
Hub Colour: Green
Hub ID: 0.03" - 0.84mm
OD: 0.050" - 1.27mm
Tube Length: 1.50" - 38.1mm
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 90289090
Brand: Techcon
Features
- Precision burr free tubing
- Oval shape end for flat ribbon deposits
- 0.5" tube lengths
- Silicone free safe plastics
- Safe for use up to 100 psi
- Double helix luer lock colour coded hubs
- UV filter plastic hubs
- For all fluids, adhesives and solvents
