Description

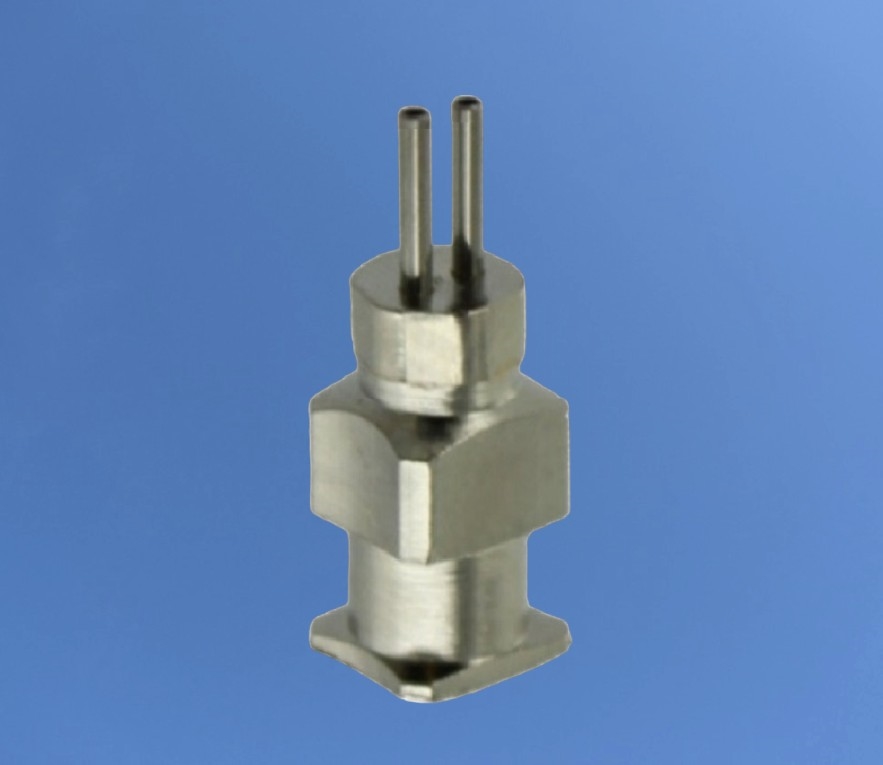

Precision blunt end dual steel tubes to steel luer lock hub. Use this tip for dispensing adhesives, solvents, glues, primers, activators and many other fluids. Especially useful for aggressive solvents. A blunt end twin metal shaft with a 6.5mm length.
The ADSS needle series consist of a steel luer lock hub with dual stainless steel precision shafts. This high quality line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow.
Suitable for dispensing most fluids, SMT adhesives and solvents. Industrial grade safe for use to 100 psi. Ideal for use on robot dispensing systems as tips are cut high precision for total consistency. Supplied in a sealed pack of 12 tips. Dispensing tips are designed to work with standard syringes and fittings. These tips are fully compatible with most low, medium and high viscosity fluids, adhesives, inks, pastes, gels and lubricants.
Part ID: AD27DSS-1/4
Materials: Nickel Plated Brass/ Stainless Steel
Colour: Silver
Inner Diameter:0.008" - 0.21mm
Outer Diameter: 0.016" - 0.41mm
Tube Length: 0.25" - 6.5mm
Connection: Luer Lock
Maximum Pressure: 100 PSI
Details: Industrial Grade/ Silicone Free
Commodity Code: 90289090
Origin: GB
Brand: Adhesive Dispensing Ltd
Features
- Safe to 100 psi
- High precision metal
- Burr free tubing
- Luer lock attachment
- Gauge sizes 15 to 30
- Ideal for robots
- Supplied in packs of 12
