AD3780CL-LTSS Pressure Pot 37.8 Litre 0-100 PSI Adhesive Dispensing Ltd

Description

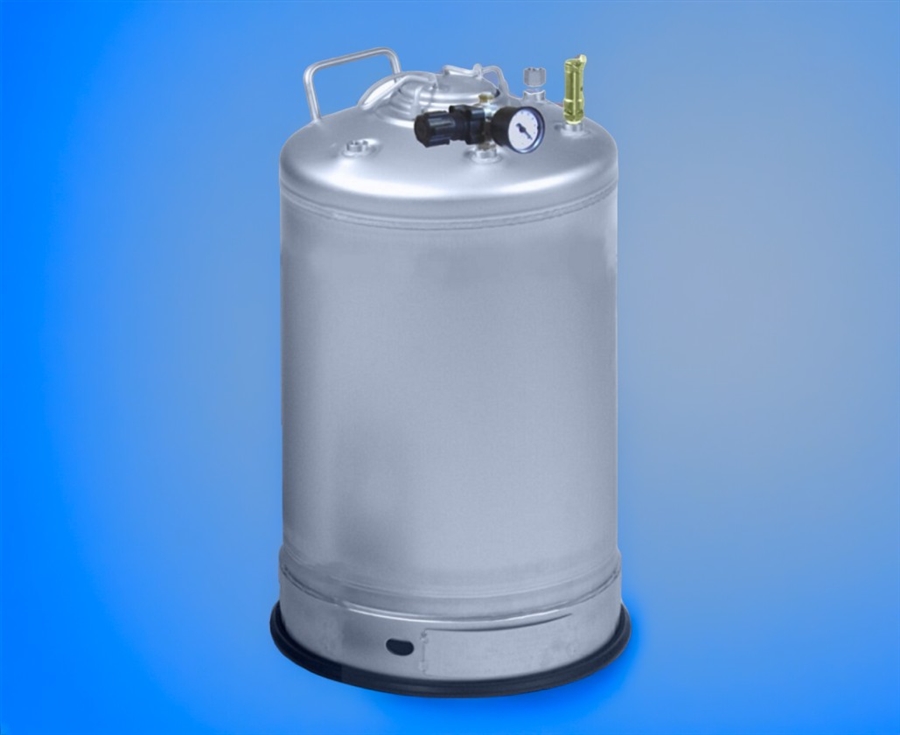

The AD3780CL-LTSS pressure pot 37.8 litre size is designed to accommodate most low to medium fluids, adhesives, solvents and UV's. Pot accommodates 1/4" OD feed tubing with stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the metering valve. Airtight seals ensure no leakage problems. Built in adjustable 100 psi air regulator and gauge. Wide open mouth for easy access. Handles fluid viscosity up to 35,000 cps. Air port quick connect fitting and top ported outlet. Type 316 stainless steel. With adjustable air regulator and gauge.

Part ID: AD3780CL-LTSS
Weight: 15.4 kg
Dimensions: 309mm Diameter. 643mm Height.
Chamber: 305mm Inside Diameter.
Lid Opening Size: 149.4mm x 127.4mm
Viscosity Range: Liquids up to 35,000 CPS
Max Fluid Pressure: 100 psi ( 6.9 Bar)
Air Inlet: 1/4" Thread Inlet
Material Outlet: 1/4" OD or 3/8" OD Tube Connection
Materials: Type 316 Stainless Steel/ Rubber Skit to Boot
Closure Oval: Pressure Closure
Closure Seal: EPDM Rubber O-ring
Certification: ASME Section VIII-01, Div. 1. PED - Module A - Category I - CE marked For group 1 and 2 liquids and group 2 gases
Commodity Code: 90289090
Origin: United States

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Ideal for use with most liquids
Wide mouth
0-100 psi adjustable regulator and gauge
Either 1/4" tubing or female luer lock fluid lines
6mm push fit air in
1 Year Warranty
