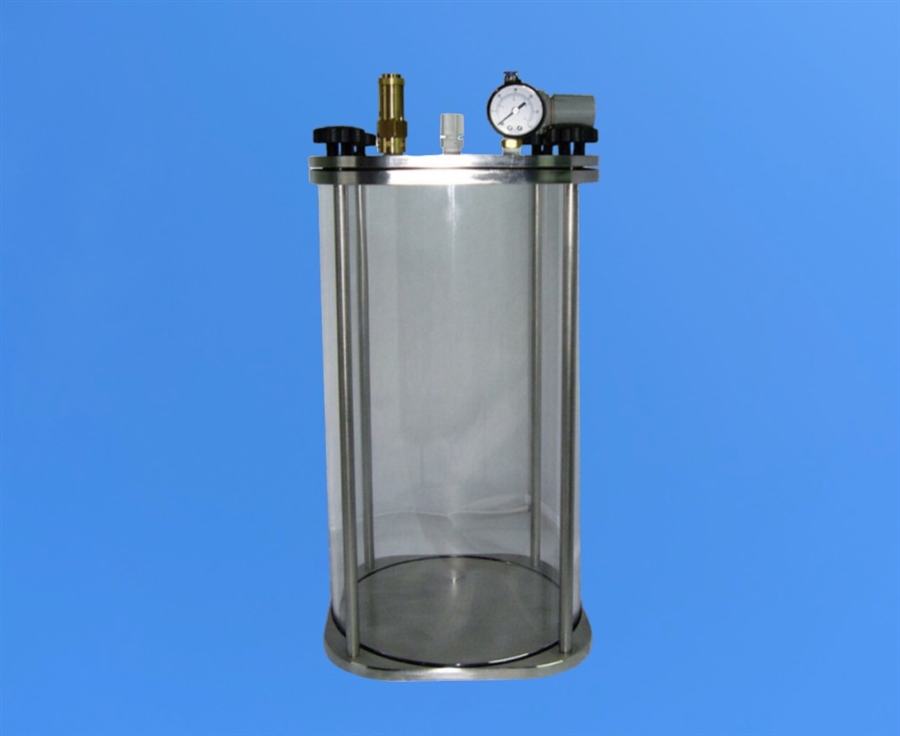

10 Litre Pressure Pot 0-60 psi AD1000CL-CTGSS
Product Code: AD1000CL-CTGSS
Price: £1,550.00
Description
The CT series pressure tanks are see-through vessels designed to let the operators easily monitor fluid levels. The tanks are made of stainless steel 316 and Toughened Glass tubes and can be pressurised up to 4 bar. This version uses premium type 316 stainless steel.
This choice of materials makes the CT series reservoirs compatible with a wide variety of fluids and applications and ensure that the contents do not corrode. All models can also be fitted with air agitators, low level sensor and additional ports. High quality stainless steel pressure pot (pressure up to 4 Bar) designed to accommodate many materials. It has a stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the point of use but can use plastic fittings if dispensing reactive adhesives. Airtight seals ensure no leakage or air entrapment problems. 60 psi operating pressure easily handles fluid with viscosity up to 25,000 CPS.
Material: Type 316 Stainless Steel/ Toughened Glass Wall
Colour: Silver/ Clear
Outer: 206mm W x 448mm H
Chamber: 190mm W x 384mm H
Tank Thickness: 3mm
Lid Thickness: 15mm
Air Inlet Thread: 1/4 Inch NPT
Weight: 7.3 kg
Max Pressure: 100 psi (6.9 Bar) - Safety Valve Set at 7 bar
Working Rated Vacuum: 0 to -1 bar at from 0 C to 38 C
Closure: 4 stainless steel swing bolts and black plastic star grips
Closure Seal: Fluorocarbon Rubber O-ring
Chamber: 190mm W x 384mm H
Tank Thickness: 3mm
Lid Thickness: 15mm
Air Inlet Thread: 1/4 Inch NPT
Weight: 7.3 kg
Max Pressure: 100 psi (6.9 Bar) - Safety Valve Set at 7 bar
Working Rated Vacuum: 0 to -1 bar at from 0 C to 38 C
Closure: 4 stainless steel swing bolts and black plastic star grips
Closure Seal: Fluorocarbon Rubber O-ring
LID
12mm thick stainless steel
1 INPUT connection 1/4" NPT with pressure regulator & gauge
1 OUTPUT connection 1/4" NPT with compression fitting 6mm
1 OUTPUT connection 1/4" NPT with safety relief valve
12mm thick stainless steel
1 INPUT connection 1/4" NPT with pressure regulator & gauge
1 OUTPUT connection 1/4" NPT with compression fitting 6mm
1 OUTPUT connection 1/4" NPT with safety relief valve
Warranty: 1 Year
Details: CE certified and Rohs Compliant
Certification: ASME Section VIII-01, Div. 1 Directive 2014/68/EU Article 4 Clause 3 For group 2 liquids
Commodity Code: 90289090
Details: CE certified and Rohs Compliant
Certification: ASME Section VIII-01, Div. 1 Directive 2014/68/EU Article 4 Clause 3 For group 2 liquids
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Material: Type 316 Stainless Steel/ Glass Wall
Colour: Silver/ Clear
Outer: 206mm W x 448mm H
Chamber: 190mm W x 384mm H
Tank Thickness: 3mm
Lid Thickness: 15mm
Air Inlet Thread: 1/4 Inch NPT
Weight: 7.3 kg
Max Pressure: 100 psi (6.9 Bar) - Safety Valve Set at 7 bar
Working Rated Vacuum: 0 to -1 bar at from 0 C to 38 C
Closure: 4 stainless steel swing bolts and black plastic star grips
Closure Seal: Viton O-ring
