5 Litre Clear Pressure Pot 0-60 PSI AD5000ML-CTGAG
Product Code: AD5000ML-CTGAG
Price: £2,525.00
Description

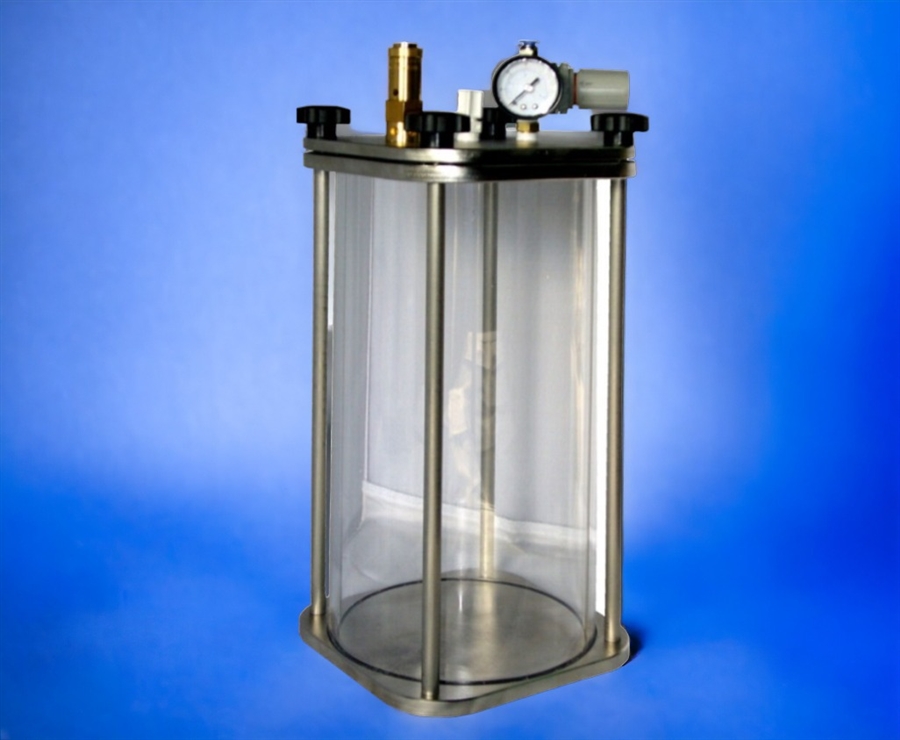

Toughened glass clear view pressure pot for cyanoacrylates, anaerobics and many other low to medium viscosity fluids. No pouring needed; you just place the bottle or tub right into the tank, seal with wing nuts, and pressurise. This version has a pneumatic motor agitator built-in to ensure liquids do not settle out when in use and remain agitated.
Includes an air port with 6mm OD push fit tube attachment to pressurise the tank, and an adjustable regulator and gauge up to 60psi. Accepts adhesive bottles or containers that are placed inside the chamber. Comes with 6mm OD tubing kit that feeds the liquid to the dispensing valve.
Includes an adjustable air regulator with gauge to set the most suitable pressure for the liquid used. Thread on lid works with standard fluid lines. The clear body chamber of this vessel allows the user to monitor the fluid levels inside.
Part ID: AD5000ML-CTGAG
Maximum Volume: 5000 ml
Outer Size: 166mm W x 405mm H
Inner Chamber: 150mm W x 315mm H
Lid: 8mm Thick
Weight: 6.3kg
Seals: Fluorocarbon Rubber O-Ring (top and bottom seal)
Viscosity Range: Liquids up to 25,000 CPS
Max Fluid Pressure: 60 PSI (4 Bar)
Air Inlet: 6mm Push Fit
Material Outlet: 6mm OD Tubing
Materials: Toughened Glass, Aluminium, Stainless Steel
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- 60 psi - High operating pressure
- Fluid Outlet Port - On the lid for easy access
- Two Handles - For easy removal of lid Four knobs to open/close lid - For positive and uniform seal
- Pressure Gauge - Located on top for easy reading
- Pressure Regulator - Located on top for ease of access Disposable polyethylene - Fluid lines can be changed quickly
- Ferrule - Disposable with tubing eliminates clean-up
- Hose Kit - Supplied with 6mm OD tube fittings
