2 Litre Clear Pressure Pot 0-60 PSI AD2000ML-CTGAG
Product Code: AD2000ML-CTGAG
Price: £2,540.00
Description

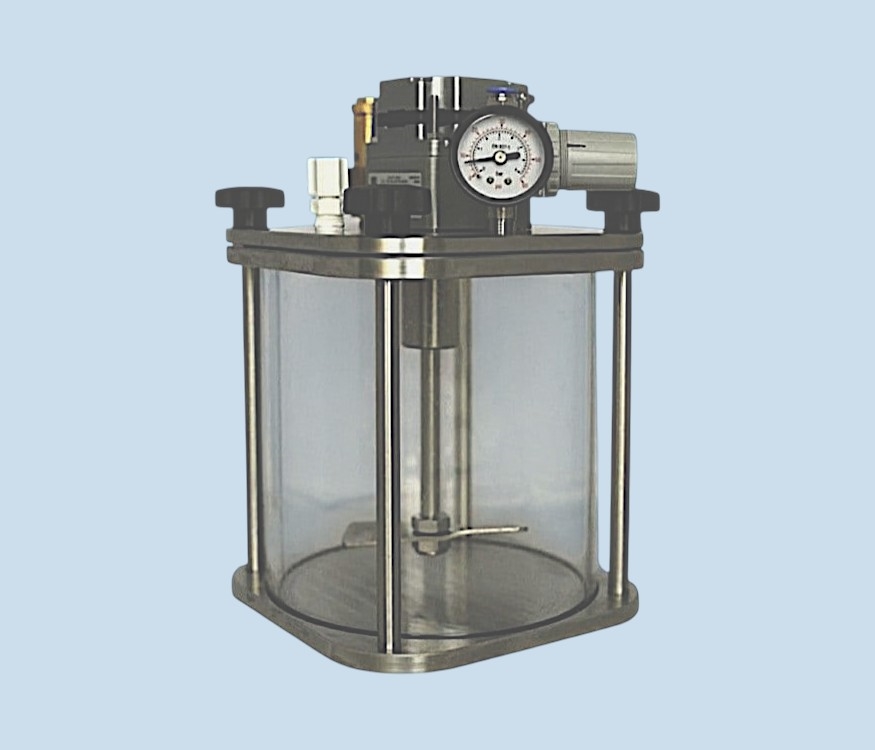

Toughened borosilicate glass clear view pressure pot for cyanoacrylates, anaerobics and many other low to medium viscosity fluids. No pouring needed; you just place the bottle or tub right into the tank, seal with wing nuts, and pressurise. This version has a pneumatic motor agitator built-in to ensure liquids do not settle out when in use and remain agitated.
Includes an air port with 6mm OD push fit tube attachment to pressurise the tank, and an adjustable regulator and gauge up to 60psi. Accepts adhesive bottles or containers that are placed inside the chamber. Comes with 6mm OD tubing kit that feeds the liquid to the dispensing valve.
Includes an adjustable air regulator with gauge to set the most suitable pressure for the liquid used. Thread on lid works with standard fluid lines. The clear body chamber of this vessel allows the user to monitor the fluid levels inside.
SPECIFICATIONS
Part ID: AD2000ML-CTGAG
Maximum Volume: 2000 ml
Outer Size: 166mm W x 265mm H
Inner Chamber: 150mm W x 180mm H
Lid: 8mm Thick
Weight: 6.2 kg
Seals: Fluorocarbon Rubber O-Ring (top and bottom seal)
Viscosity Range: Liquids up to 25,000 CPS
Max Fluid Pressure: 60 PSI (4 Bar)
Air Inlet: 6mm Push Fit
Material Outlet: 6mm OD Tubing
Materials: Toughened Borosilicate Glass, Aluminium, Stainless Steel
DETECTION
The clear tanks can be fitted with 3 levels of detection:
Low-Level Float Switch (simple & cost efficient)
- 1/4 Inch NPT Internal Pipe Plug 316SS
- 1 Inch 1000PSIG 316SS Round Float
- 8.0mm OD 316SS Stem
- 300 Series Float Stops
- Switch Type: 50W SPST
- Max Switching Voltage: 250VDC
- Max Switching Current: 0.5A
- Max Temp.: 100 Degree C
- Max Pressure: 1000PSIG
Induction level sensor (for continuous level monitoring)
- Max Operating pressure: 16bars
- Max temperature: 80 Degree C
- Operating voltage: 18 to 30VDC
- 2 outputs
- PNP electrical design
- I/O Link communication interface
- IP67
- LED Display
Ultrasonic level sensor (for no-contact detection)
- Max Operating pressure: 7bars
- Max temperature: 70 Degree C
- Operating voltage: 10 to 30V
- 1 output
- PNP electrical design
- I/O Link communication interface
- IP67
- Ultrasonic sensor is only available for 10L vessel only
ACCESSORIES
The clear tanks come with a range of accessories (Supplied with every tank):
- Low cost pressure regulator
- Analogue gauge
- Brass safety pressure valve
- 6mm OD push-in air inlet
- 6mm OD compression fluid outlet
- Black PVC & Brass knobs
Low-Level Float Switch (simple & cost efficient)
- 1/4 Inch NPT Internal Pipe Plug 316SS
- 1 Inch 1000PSIG 316SS Round Float
- 8.0mm OD 316SS Stem
- 300 Series Float Stops
- Switch Type: 50W SPST
- Max Switching Voltage: 250VDC
- Max Switching Current: 0.5A
- Max Temp.: 100 Degree C
- Max Pressure: 1000PSIG
Induction level sensor (for continuous level monitoring)
- Max Operating pressure: 16bars
- Max temperature: 80 Degree C
- Operating voltage: 18 to 30VDC
- 2 outputs
- PNP electrical design
- I/O Link communication interface
- IP67
- LED Display
Ultrasonic level sensor (for no-contact detection)
- Max Operating pressure: 7bars
- Max temperature: 70 Degree C
- Operating voltage: 10 to 30V
- 1 output
- PNP electrical design
- I/O Link communication interface
- IP67
- Ultrasonic sensor is only available for 10L vessel only
ACCESSORIES
The clear tanks come with a range of accessories (Supplied with every tank):
- Low cost pressure regulator
- Analogue gauge
- Brass safety pressure valve
- 6mm OD push-in air inlet
- 6mm OD compression fluid outlet
- Black PVC & Brass knobs
Additional Optional Accessories
- 6mm OD polypropylene tubing
- 6mm OD PTFE tubing
- 6mm OD Stainless steel tubing
- Stainless steel shield with sight slot
- Stainless steel holding basket single
- Stainless steel holding basket dual
- Stainless steel housing with slot
- EPDM Seals
- Precision regulator
- Digital gauge
- Pressure sensor
- Stainless steel safety pressure valve
- Stainless steel 316 knobs
- Stainless steel 316 6mm fittings
- Stainless steel 316 ball valves
- UKAS Calibration
- Air filter
- Fluid filter
- No return check valve
- Silencer
- Vacuum Kit
- 6mm OD polypropylene tubing
- 6mm OD PTFE tubing
- 6mm OD Stainless steel tubing
- Stainless steel shield with sight slot
- Stainless steel holding basket single
- Stainless steel holding basket dual
- Stainless steel housing with slot
- EPDM Seals
- Precision regulator
- Digital gauge
- Pressure sensor
- Stainless steel safety pressure valve
- Stainless steel 316 knobs
- Stainless steel 316 6mm fittings
- Stainless steel 316 ball valves
- UKAS Calibration
- Air filter
- Fluid filter
- No return check valve
- Silencer
- Vacuum Kit
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- 60 psi - High operating pressure
- Fluid Outlet Port - On the lid for easy access
- Two Handles - For easy removal of lid Four knobs to open/close lid - For positive and uniform seal
- Pressure Gauge - Located on top for easy reading
- Pressure Regulator - Located on top for ease of access Disposable polyethylene - Fluid lines can be changed quickly
- Ferrule - Disposable with tubing eliminates clean-up
- Hose Kit - Supplied with 6mm OD tube fittings
