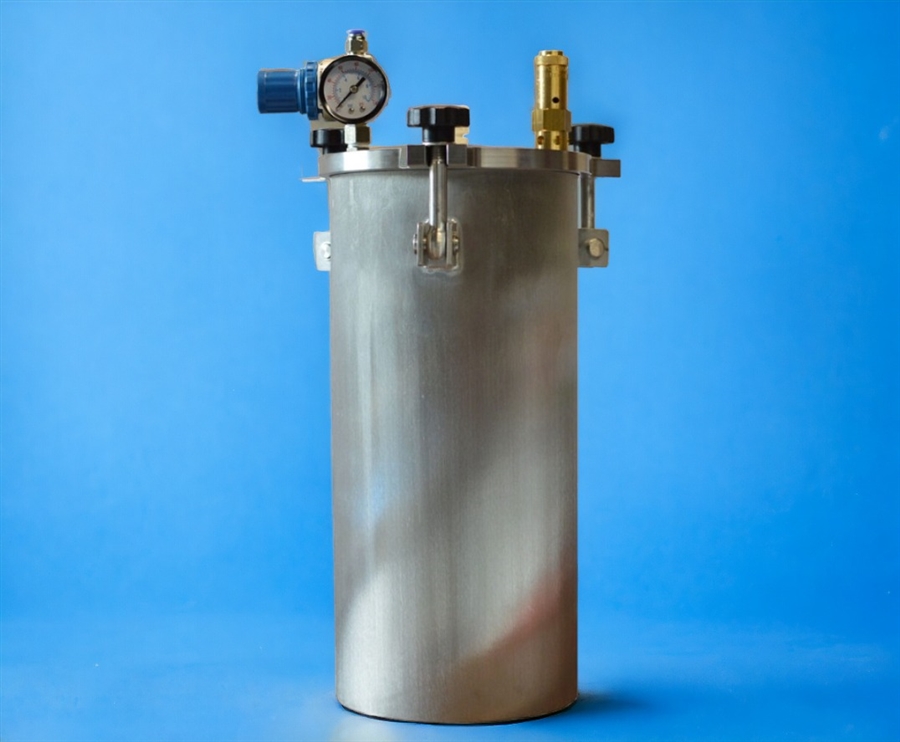

5 Litre Pressure Pot 0-100 psi AD5000ML-ST
Product Code: AD5000ML-ST
Price: £585.00
Description
The AD500ML-ST pressure pot (pressure up to 100 psi) is designed to accommodate solvents and liquid adhesives, as well as cyanoacrylates and UV cure. It will also accommodate clear and black fittings and feed tubing in 1/4 Inch, with stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the point of use.
Airtight seals and gasket ensure no leakage or air entrapment problems. 100 psi maximum operating pressure easily handles fluid with viscosity up to around 40,000 CPS. Disposable polyethylene dip tube can be quickly changed. The pressure gauge and pressure regulator are located on top for easy reading and access. Includes fluid line connector kit. When you are dispensing adhesives, a container or bottle is best placed inside the tank chamber. Or use one of our tank liners inside the chamber to avoid damage. Main tank body and lid are stainless steel.
MPN: AD5000ML-ST
Material: Stainless Steel Type 304
Colour: Silver
Shell: Cylindrical
Closure: 4 stainless steel swing bolts and black plastic star grips
Closure seal Fluorocarbon Rubber O-ring
Internal finish Brushed, welds as welded
External finish Brushed, welds as welded
Outer Size: 154mm W X 412mm H
Inner Chamber: 150mm I.D. x 315mm H
Weight: 5.7kg
Maximum Pressure: 100 psi (6.7 BAR) at 38 C
LID: 12mm thick stainless steel
External finish Brushed, welds as welded
Outer Size: 154mm W X 412mm H
Inner Chamber: 150mm I.D. x 315mm H
Weight: 5.7kg
Maximum Pressure: 100 psi (6.7 BAR) at 38 C
LID: 12mm thick stainless steel
1 INPUT connection 1/4 Inch NPT with pressure regulator & gauge
1 OUTPUT connection 1/4 Inch NPT with compression fitting 6mm
1 OUTPUT connection 1/4 Inch NPT with safety relief valve
Certification: ASME Section VIII-01, Div. 1 Directive 2014/68/EU Article 4 Clause 3 For group 2 liquids
Warranty: 1 Year
Commodity Code: 90289090
Origin: UK
1 OUTPUT connection 1/4 Inch NPT with compression fitting 6mm
1 OUTPUT connection 1/4 Inch NPT with safety relief valve
Certification: ASME Section VIII-01, Div. 1 Directive 2014/68/EU Article 4 Clause 3 For group 2 liquids
Warranty: 1 Year
Commodity Code: 90289090
Origin: UK
100 psi - High operating pressure
Fluid Outlet Port - On the lid for easy access
Two knobs to open/close lid - For positive and uniform seal
Pressure Gauge - Located on top for easy reading
Pressure Regulator - Located on top for ease of access
Disposable polyethylene - Fluid lines can be changed quickly
Hose Kit - Supplied with tank
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies
Features
- 100 psi - High operating pressure
- Fluid Outlet Port - On the lid for easy access Four Handles - For easy removal of lid
- Two knobs to open/close lid - For positive and uniform seal
- Pressure Gauge - Located on top for easy reading
- Pressure Regulator - Located on top for ease of access Disposable polyethylene - Fluid lines can be changed quickly
- Ferrule - Disposable with tubing eliminates clean-up
- Hose Kit - Supplied with 6mm OD tube fittings
