500ml Size Pressure Pot AD500ML-CT
Product Code: AD500ML-CT
Price: £547.00
Description

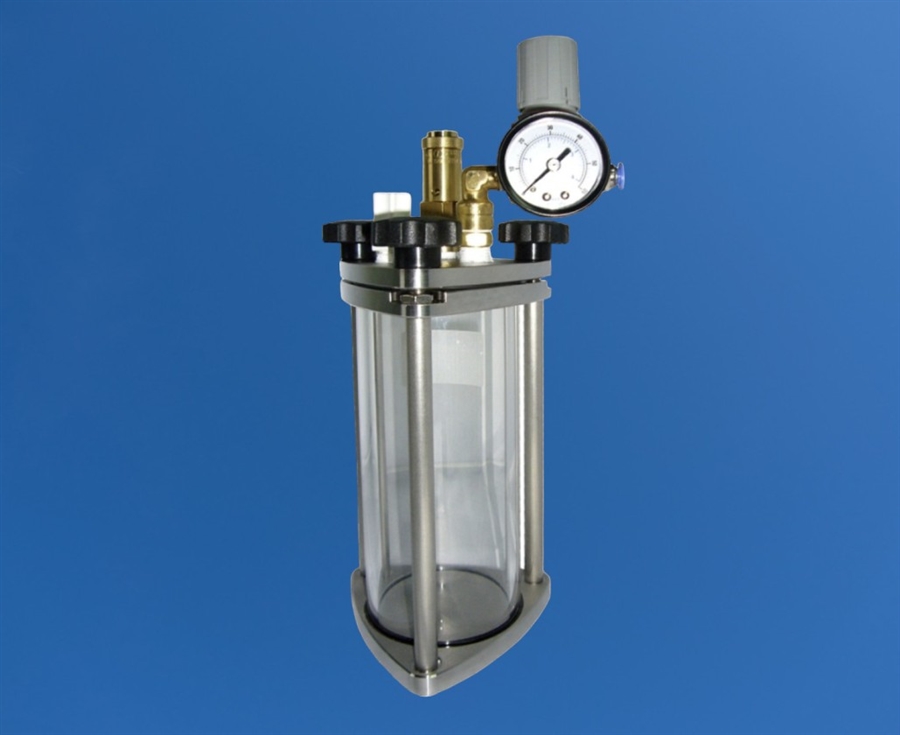

Toughened acrylic clear view pressure pot for cyanoacrylates, anaerobics and many other low to medium viscosity fluids. No pouring needed; you just place the bottle right into the tank, seal with wing nuts, and pressurise.
Includes an air port with 6mm OD push fit tube attachment to pressurise the tank, and an adjustable regulator and gauge up to 60psi. Accepts adhesive bottles 250gm and 500gm size or containers that are placed inside the chamber. Comes with 6mm OD tubing kit that feeds the liquid to the dispensing valve.
Includes an adjustable air regulator with gauge to set the most suitable pressure for the liquid used. Thread on lid works with standard fluid lines. The clear body chamber of this vessel allows the user to monitor the fluid levels inside.
Part ID: AD500ML-CT
Outer Size: 75mm W x 272mm H
Inner Chamber: 65mm W x 185mm H
Lid: 8mm Thick
Weight: 2.2 kg
Seals: Fluorocarbon Rubber O-Ring (top and bottom seal)
Viscosity Range: Liquids up to 25,000 CPS
Max Fluid Pressure: 60 PSI (4 Bar)
Air Inlet: 6mm Push Fit
Material Outlet: 6mm OD Tubing
Materials: Toughened Acrylic, Aluminium, Stainless Steel
Commodity Code: 84798997
Origin: UK
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Includes an air port with 6mm OD push fit tube attachment to pressurise the tank, and an adjustable regulator and gauge up to 60psi. Accepts adhesive bottles 250gm and 500gm size or containers that are placed inside the chamber. Comes with 6mm OD tubing kit that feeds the liquid to the dispensing valve.
Includes an adjustable air regulator with gauge to set the most suitable pressure for the liquid used. Thread on lid works with standard fluid lines. The clear body chamber of this vessel allows the user to monitor the fluid levels inside.
Part ID: AD500ML-CT
Outer Size: 75mm W x 272mm H
Inner Chamber: 65mm W x 185mm H
Lid: 8mm Thick
Weight: 2.2 kg
Seals: Fluorocarbon Rubber O-Ring (top and bottom seal)
Viscosity Range: Liquids up to 25,000 CPS
Max Fluid Pressure: 60 PSI (4 Bar)
Air Inlet: 6mm Push Fit
Material Outlet: 6mm OD Tubing
Materials: Toughened Acrylic, Aluminium, Stainless Steel
Commodity Code: 84798997
Origin: UK
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Part ID: AD500ML-CTOuter Size: 75mm W x 272mm HInner Chamber: 65mm W x 185mm HLid: 8mm ThickWeight: 2.2 kgSeals: Viton O-Ring (top and bottom seal)Viscosity Range: Liquids up to 25,000 CPSMax Fluid Pressure: 60 PSI (4 Bar)Air Inlet: 6mm Push FitMaterial Outlet: 6mm OD TubingMaterials: Toughened Acrylic, Aluminium, Stainless SteelCommodity Code: 84798997Origin: UK
