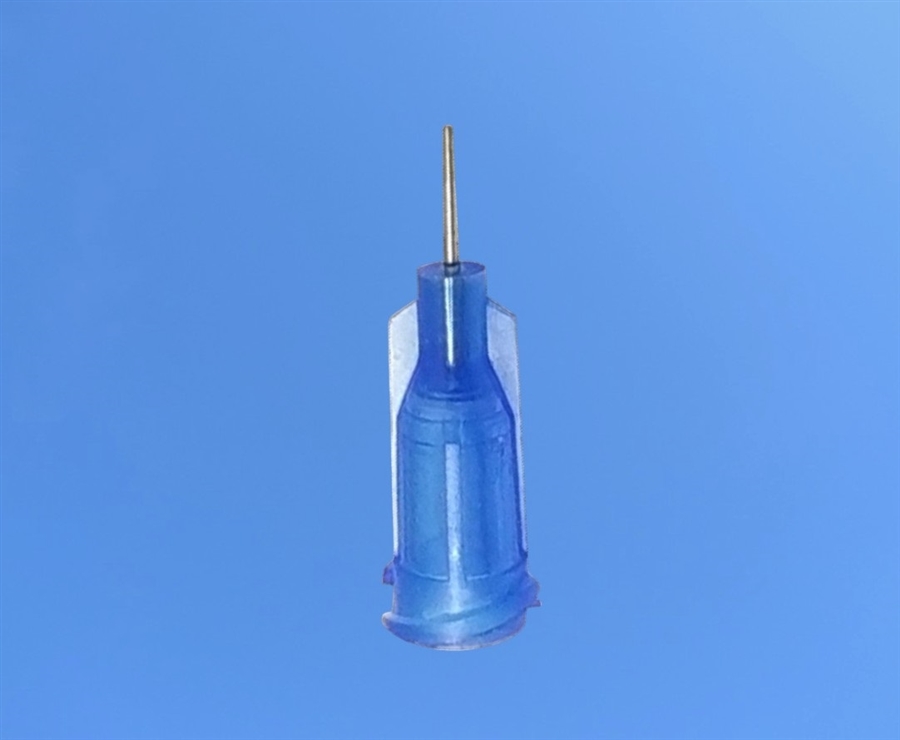

22G Chamfered Tip Blue 0.25" CHT22025 pk/50
Product Code: CHT22025
Price: £42.50
Description
Adhesive Dispensing Ltd branded series premium dispensing tips are designed to work with all dispensing equipment - either manually, on a pneumatic dispenser, with metering valves or XYZ robots. Our dispensing tips are certified silicone and chloride free and are safe to use to 100 PSI. High performance tips suitable for dispensing most fluids, pastes, adhesives, lubricants and solvent based liquids.
Chamfered tube tips for dispensing solvents and many other low viscosity liquids. The taper at the end outlet of the tip Chamfered tube tips for dispensing solvents, many other liquids as well as difficult to dispense adhesives or materials. The taper point at the end outlet of the tip reduces the surface area a liquid or paste can grip, providing better dispensing control and less curl onto the tip tube. These chamfered tips are ideal for dispensing between delicate surfaces or making exact, repeatable micro-deposits. Tube lengths of 0.25 inch and 0.5 inch.
The unique double-helix hub thread ensures safe and secure leak-free attachment to the syringe barrel. Each hub is designed with flush mating of the hub to the tube for smooth fluid flow and to prevent trapped air, which causes dripping and oozing. Stainless steel tube is bonded to the polypropylene hub. In tube diameters of 0.42mm ID to 0.16mm ID. Luer lock colour coded hubs for identification. In sealed boxes of 50 pieces. Unique outer tube taper design. Eliminates liquid wicking. Improves micro dot results for low viscosity liquid applications.
Features and Benefits
- Free of flash, burrs, and contaminants
- Package labels include batch numbers for process control and traceability
- Consistent from style to style and batch to batch
- Luer locking thread ensures safe, positive attachment to syringe barrel
- Engineered hub flats for easy twist on, twist off
- Chamfered tip end for micro dot applications
The AD series tip range features a tapered internal design where the stainless steel tube meets the inside of the polypro hub to improve material flow and reduce restriction and back pressure. This allows for a lower pressure to be used for dispensing liquids and pastes. The tube does not protrude up into the hub which will guarantee easy flow. All products are held in stock for very fast delivery. Boxes and packs are labelled with batch codes for traceability. We ship these parts globally to manufacturers, assemblers who demand the very highest build quality and the best value.
Specifications:
Material: Polypropylene Hub/ Stainless Steel Tube
Hub Colour: Blue
Tube Inner Diameter: 0.016" - 0.42 mm
Tube Outer Diameter: 0.028" - 0.72 mm
Tube Length: 0.25" (6.35mm)
Details: Industrial Grade, Silicone Free, Chloride Free, Burr-Free
Pack Sizes: Boxes of 50
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Precision burr free tubing
- 0.25" long tube lengths
- Silicone free safe Safe for use up to 100 psi
- Double helix luer lock colour coded hubs
- UV filter hubs
- For all fluids, adhesives and solvents
