Description

3 axis version allows head indexing in X, Y and Z axis.

With its large working area of 300mm x 320mm, the JR3303 dispensing robot takes up less workspace. Cartesian dosing robots provided by ADL are used to interpolate lines and curves automatically in all axes. The JR33304 version is equipped with a fourth axis of rotation for a 3D displacement.

The programming software, easy to use, allows you to create programs quickly thanks to its support system. Within few minutes, the device is ready for use. The system is equipped with an I / O signal interface (16 x inputs / 16 x outputs) to allow you to control external systems.

ADL offers a complete range of dosing robots to respond to your more specific demands in terms of positioning and dispensing. These dosing robots operate with syringes and valve systems, to a working area of 310mm. So these robots are the ideal solution for optimizing precision works and reducing production costs.

Designed to be easy to program, a software has been specifically created to make the handling of the device accessible by avoiding the use of a complex programming language. In addition, the interface is programmable via a control unit or PC (Dispensing software included).

The Cartesian robot tables have robust and reliable units in aluminium ensuring the rigidity whatever operation is performed. They offer a wide range of work areas for a small obstruction. These devices are ideal for autonomous operations and can easily be integrated on automated assembly lines.

- Optical encoders of displacement control
- Auto shutdown in case of error detection
- No time wasted and maximization of the productivity
- Heavy-duty aluminium structure
- Memory capacity : 30,000 points or 255 programs
- Modular RS232 C interface to connect to a PC, RS-422 port for learning case and I / O system

Operating range: X axis/300mm Y axis/320mm Z axis/100mm
Load: Worktable 15 kg - Tool 7 kg
Speed PTP: 8-800 mm/sec X & Y, 3.2-320mm/sec Z
Speed CP: 0.1-800mm/sec XY & 0.1-250mm/sec Z
Repeatability: +/- 0.01mm per axis
Resolution: XY & Z axes +/- 0.01mm
Data memory capacity: 255 programs 30000 points
Drive system: 5-phase stepping motor
I/O signals: 16 input & 16 output signals (24 I/O Option)
Dimensions: WxDxH 560 x 535 x 659mm
Weight: 35 kg
Meets or exceeds: CE
Warranty: 1 Year

What's Included:

1 x Base Robot with power cord
1 x LCD Teach Pendant with cable
1 x CE Compliance kit - start/ stop box
1 x 30/55cc Syringe Mounting bracket/slide
1 x TS250 Digital Pneumatic controller
1 x TS250 airline kit/ power kit
1 x I/O Cable to controller
1 x CD-ROM with manuals and user guides
1 x Syringe Kit (30cc & 55cc size)
1 x Tip Kit (145 assorted tips)

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Ideal for form-in-place gaskets, adhesives, potting, coating and filling
High resolution 0.01mm
Performs continuous path and point-to-point motions
Quick fluid-purge button located on front panel
Software tip alignment routine for quick program offsets when changing dispensing tips
USB connector allows system updates and program interchange between robots
Step-and-repeat functions _ program one object only for multiple identical objects
On board 255 programs, 30,000 point memory capacity
Available without Teach Pendant for multiple installations
1 Year Warranty - CE Certified

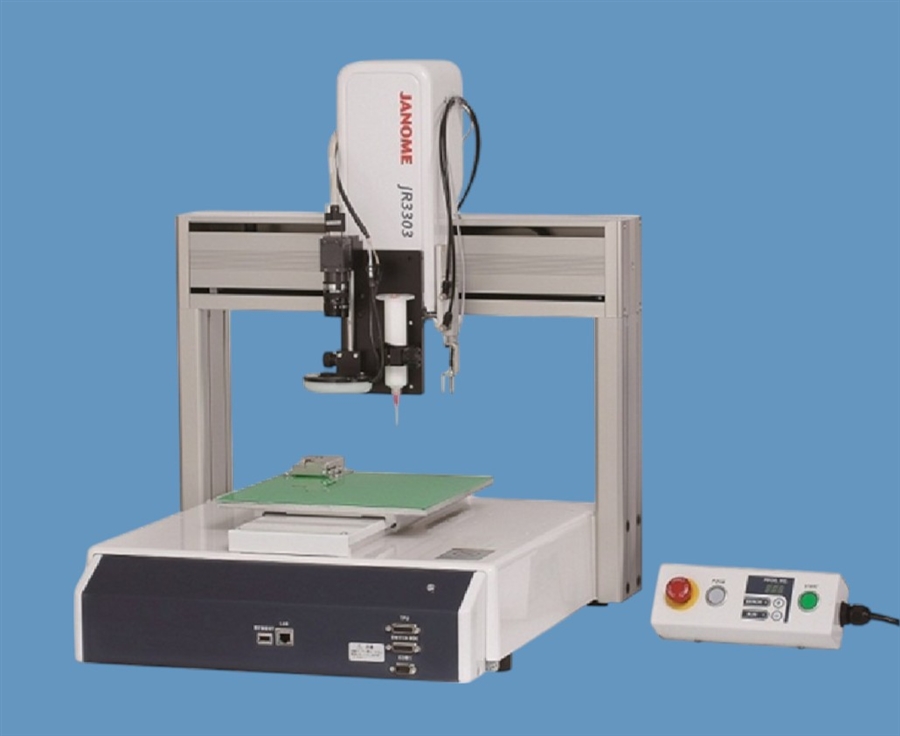

3 Axis Robot 300mm x 320mm x 100mm JR3303
