MS-Series (Yellow) Static Mixers for Meter-Mix Systems

Static Mixers attach to both metering, mixing, and dispensing machines and to dual cartridges. Static Mixers provide an even mixing of two-part materials without the hassle of hand mixing. High pressure components for safe use on machines and dual cartridges.

The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene.

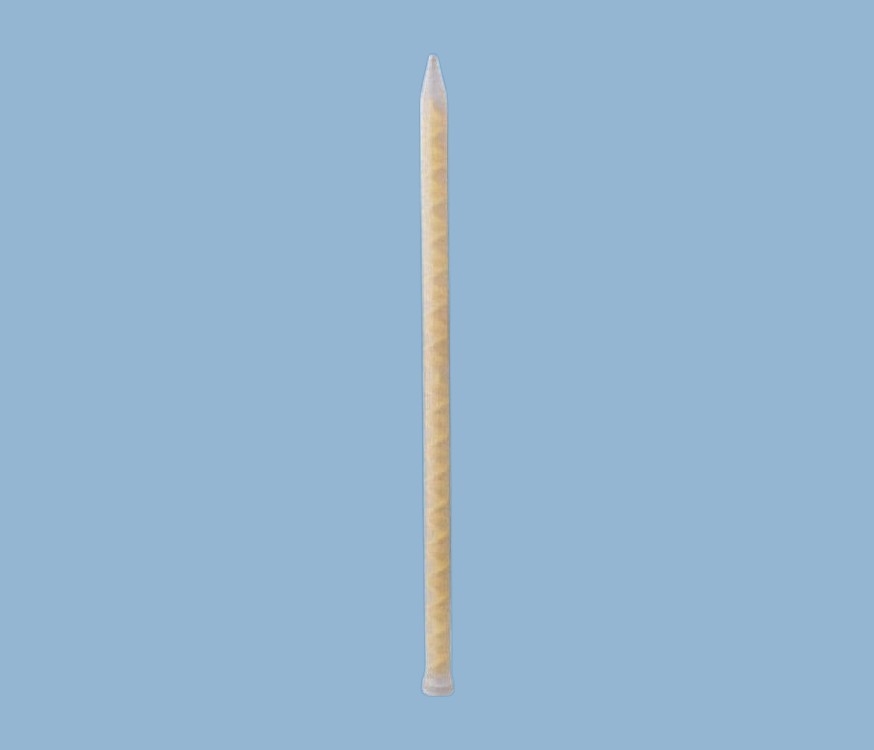

Part ID: MS13-36T
Material: Polypropylene, Polyacetal
Colour: Natural Outer, Yellow Elements
Inner Diameter: 13.0mm
Outer Diameter: 17.0mm
Mixer Length: 420mm
Nozzle Tip Diameter: 4.0 mm
No. of Elements: 36
Bell Mouth Housing: 16.7mm Diameter
Material Volume: 36.5 ml
Commodity Code: 39269097
Origin: Europe
Pack Size: 100 pcs

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Industry standard for mix machines
Silicone-free Safe for use to 100 psi
Stepped nozzle end
Supplied in sealed packs of 100
