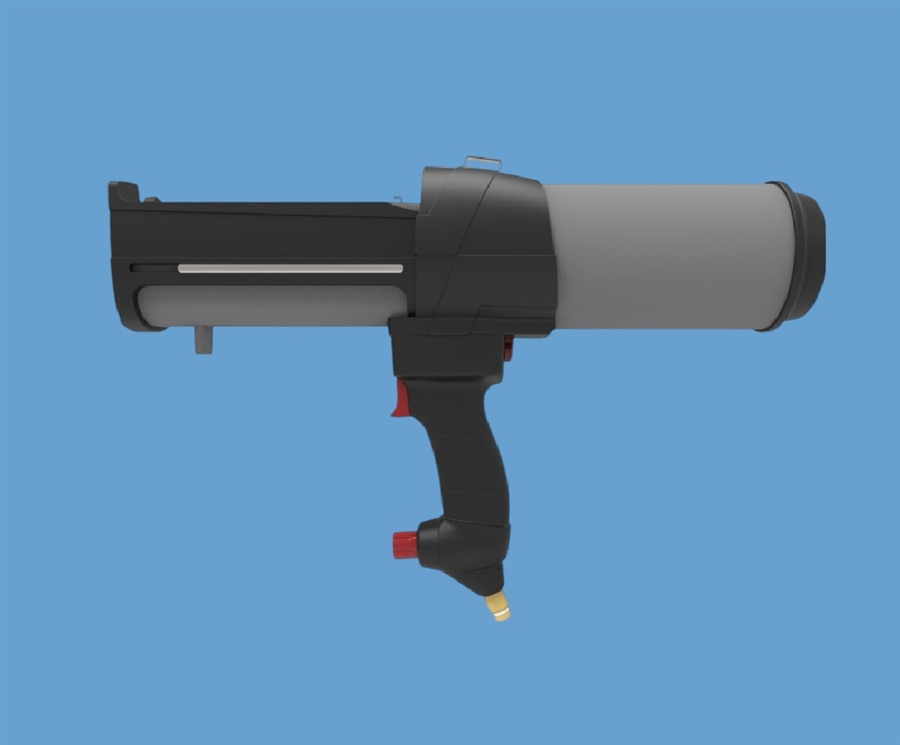

400ml Pneumatic Dual Gun 10:1 DP2X 400-10-50-01
Product Code: DP2X-400-10-50-01
Price: £395.00
Description
For epoxies, adhesives and other materials that are supplied in 400ml/490ml two part, side-by-side 10:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of our dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.
Specifications
Part ID: DP2X-400-10-50-01
Weight 2.66kg / 5.87lbs
Length: 486mm / 19.1n
Maximum Thrust: 5.0kN
Cylinder Dia. 100mm
Tool Material: Cast Aluminium and Reinforced Nylon
Cartridge Capacity: 400mL (490mL Total)
Cartridge Ratio: 10:1
Air Inlet: 1/4in NPT
Max Operating Pressure: 6.8 Bar/ 100PSI
Warranty: 1 Year
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Infinitely Adjustable working pressure
- Robust integral ram, precision and play-free drive
- For Use with 400 ml Cartridges 4:1 ratio
- Air Regulator
- Air Dump Valve Stops Flow Instantly
- Industrial strength aluminum alloy, Wear-mechanism
- Extremely user-friendly ergonomic design
- Balanced and lightweight
- Built-in user safety relief valve
- Safety switch (no feed when no cartridge inserted)
