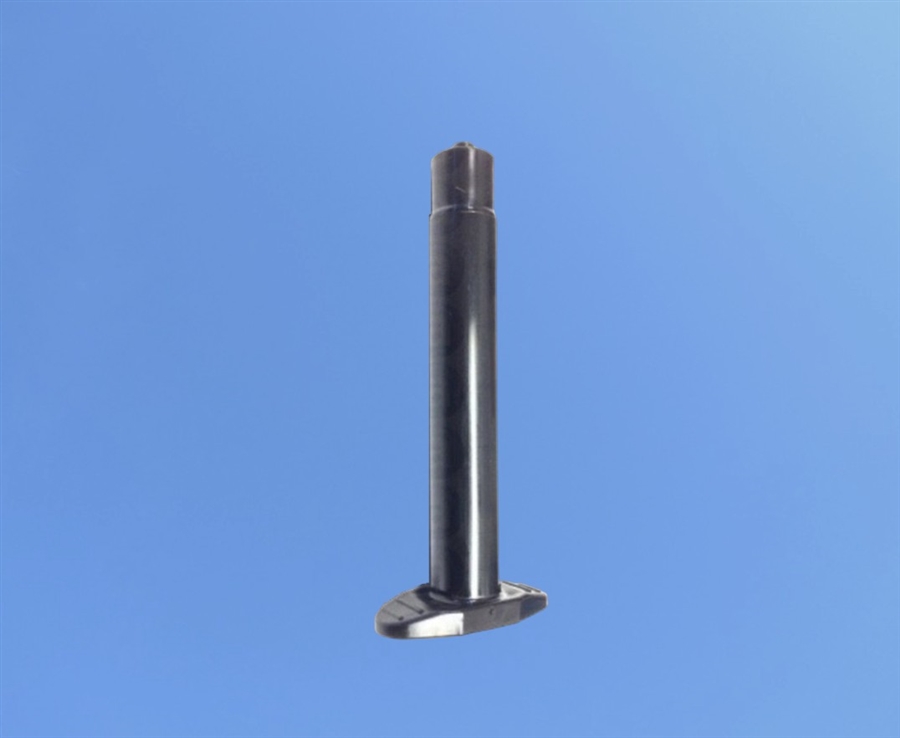

3cc Black Syringe Barrel AD903-B pk/50
Product Code: AD903-B
Price: £16.00
Description
Premier dispensing syringe barrels are silicone and chloride-free and designed to work with dispensing equipment - either manually or on a pneumatic dispenser. The syringe barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity.
Features a double Helix Luer lock for secure dispense tip attachment. Supplied in sealed packs of 50. These products ship direct from stock.
Polyethylene wiper pistons available for all barrel sizes as well as end caps and adapter assemblies. Use a piston for thick pastes, gels, etc. to prevent air pushing through materials inside the barrel. Use a piston for watery liquids to improve flow. Maximum operating pressure is 100 psi (6.9bar). Use black syringes with UV cure adhesives.
MPN: AD903-B
Material High Density Polypropylene (HDPP)
Total Overall Length 2.981" (75.72mm)
Outer Diameter 0.45" (11.42mm)
Inner Diameter 0.38" (9.58mm)
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Colour Black Opaque
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Pack Size: 50
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features a double Helix Luer lock for secure dispense tip attachment. Supplied in sealed packs of 50. These products ship direct from stock.
Polyethylene wiper pistons available for all barrel sizes as well as end caps and adapter assemblies. Use a piston for thick pastes, gels, etc. to prevent air pushing through materials inside the barrel. Use a piston for watery liquids to improve flow. Maximum operating pressure is 100 psi (6.9bar). Use black syringes with UV cure adhesives.
MPN: AD903-B
Material High Density Polypropylene (HDPP)
Total Overall Length 2.981" (75.72mm)
Outer Diameter 0.45" (11.42mm)
Inner Diameter 0.38" (9.58mm)
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Colour Black Opaque
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Pack Size: 50
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
Silicone and chloride free Industrial grade safe to 100 psi
- Resistant to aggressive fluids and solvents
- Wide flanges for secure air attachment
- Luer lock tip attachment
- Zero draft inner walls for precision
- Black for use with UV cure adhesives
