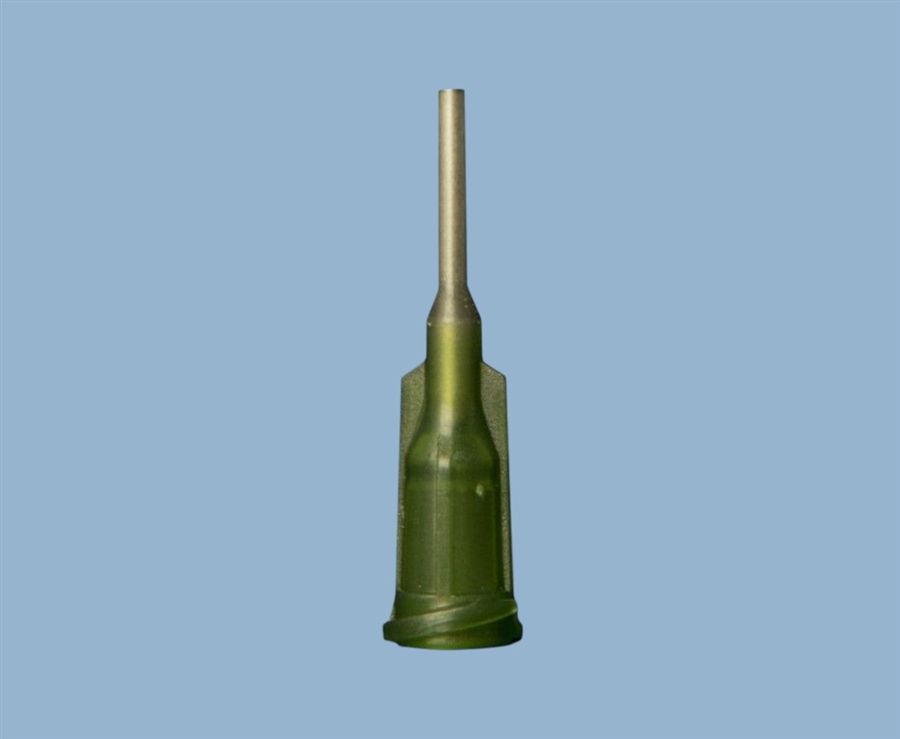

14G 0.50" Long Tip Olive AD714050 pk/1000
Product Code: AD914050-1000
Price: £150.00
Description
Adhesive Dispensing Ltd AD series premium dispensing tips are designed to work with all dispensing equipment - either manually, on a pneumatic dispenser, with metering valves or XYZ robots. Our AD series dispensing tips are certified silicone and chloride free and are safe to use to 100 PSI. High performance tips suitable for dispensing most fluids, pastes, adhesives, lubricants and solvent based liquids.
The AD series tip range features a tapered internal design where the stainless steel tube meets the inside of the polypro hub to improve material flow and reduce restriction and back pressure. This allows for a lower pressure to be used for dispensing liquids and pastes. The tube does not protrude up into the hub which will guarantee easy flow.
AD series dispensing components ensure accuracy, repeatability and productivity. General purpose AD series tips are in gauge sizes from 12 to 34 (2.26mm ID to 0.08mm ID) and in tube lengths of 0.25" (6.35mm), 0.50" (12.70mm), 1.0" (25.4mm), 1.5" (38.1mm) and 2.0" (50.8mm). We even have the option to make 3.0" and 4.0" custom length tips on request. Our tips use the industry standard colour coding for easy identification. Hubs have a UV filter to reduce the affects of light.
AD series general purpose blunt tips are supplied in sealed boxes of 50 for easy stacking or in bulk value packs of 500 or 1000. All products are held in stock for very fast delivery. Boxes and packs are labelled with batch codes for traceability. We ship these parts globally to manufacturers, assemblers who demand the very highest build quality and the best value. These tips are held in stock for same day dispatch.
Specifications:
Material: Polypropylene Hub/ Stainless Steel Tube
Hub Colour: Olive
Tube Inner Diameter: 0.060" - 1.55 mm
Tube Outer Diameter: 0.072" - 1.83 mm
Tube Length: 0.50" (12.70mm)
Details: Industrial grade, Silicone Free, Chloride Free, Burr-Free
Brand: Adhesive Dispensing Ltd
Pack Quantity: Pack of 1000
Commodity Code: 90289090
MPN: AD714050 (AD914050)
Brand: Adhesive Dispensing Ltd
Data Sheet
Material: Polypropylene Hub/ Stainless Steel Tube
Hub Colour: Olive
Tube Inner Diameter: 0.060" - 1.55 mm
Tube Outer Diameter: 0.072" - 1.83 mm
Tube Length: 0.50" (12.70mm)
Details: Industrial grade, Silicone Free, Chloride Free, Burr-Free
Brand: Adhesive Dispensing Ltd
Pack Quantity: Pack of 1000
Commodity Code: 90289090
MPN: AD714050 (AD914050)
Brand: Adhesive Dispensing Ltd
Data Sheet
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Precision burr free tubing
- 0.5" tube lengths
- Silicone free safe Safe for use up to 100 psi
- Double helix luer lock colour coded hubs
- UV filter hubs
- For all fluids, adhesives and solvents
