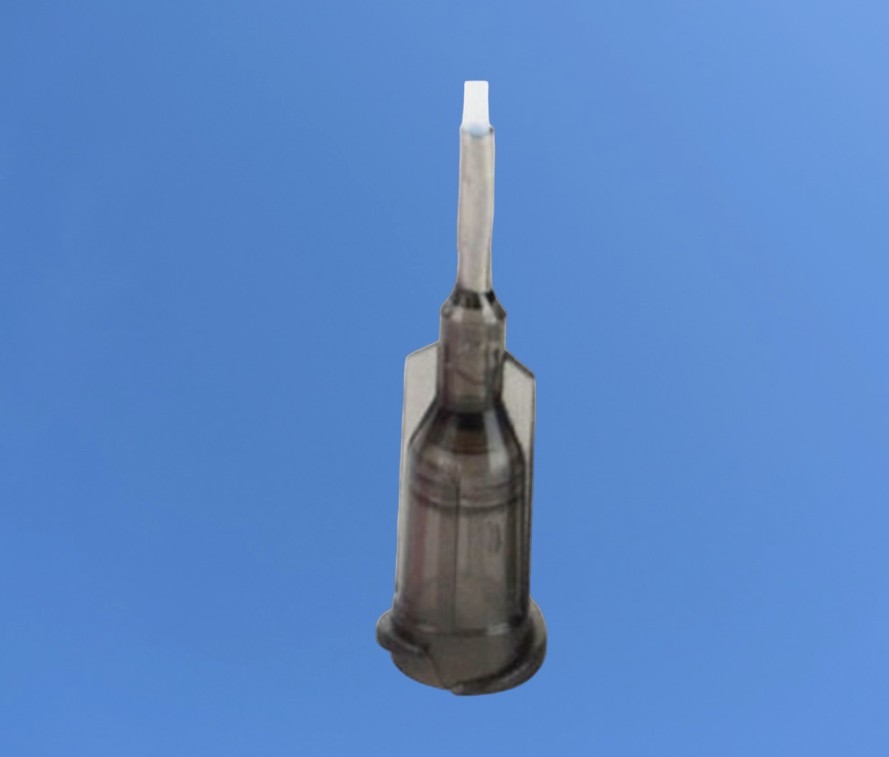

5121TLCQ Teflon lined luer lock tip 1/4 Inch long Adhesive Dispensing

Description

Precision crimped Teflon-Lined dispense tip ideally suited to clog-free dispensing of Cyanoacrylate adhesives and other low to medium viscosity fluids. A standard stainless shaft length of 0.25". Colour coded double helix locking hub. The Teflon Lined Tip is suited to the controlled application of Cyanoacrylates, Solvents, Activators, Primers and other liquids.

The crimped Teflon inner tube prevents reactive Cyanoacrylates from clogging during application. The Teflon tube extends 1/8" from the stainless steel tube to prevent damage to sensitive substrates. Supplied in sealed packs of 1000 tips. This tip features a double helix luer locking pink hub for easy identification. The tips are silicone free and chloride free to prevent contamination of any liquid dispensed. Tips are colour coded for gauge size.

The tip features a slightly tapered internal design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids.

Part ID: 5121TLCQ-B
Material: Teflon/ Polypropylene/ Stainless Steel
Hub Colour: Grey
Inner Diameter: 0.020" (0.51mm)
Attachment: Double helix luer lock
Tube Length: 0.25" - 6.35 mm
Details: Industrial grade, Silicone Free
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Pack Size: 1000 Pieces

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Prevents Cyanoacrylate clogging
Zero damage to substrates
Compatible with wide range of fluids
Industrial safe to 100 psi
Silicone and chloride free
Precision crimp to Teflon tube
Double helix luer colour coded hubs
