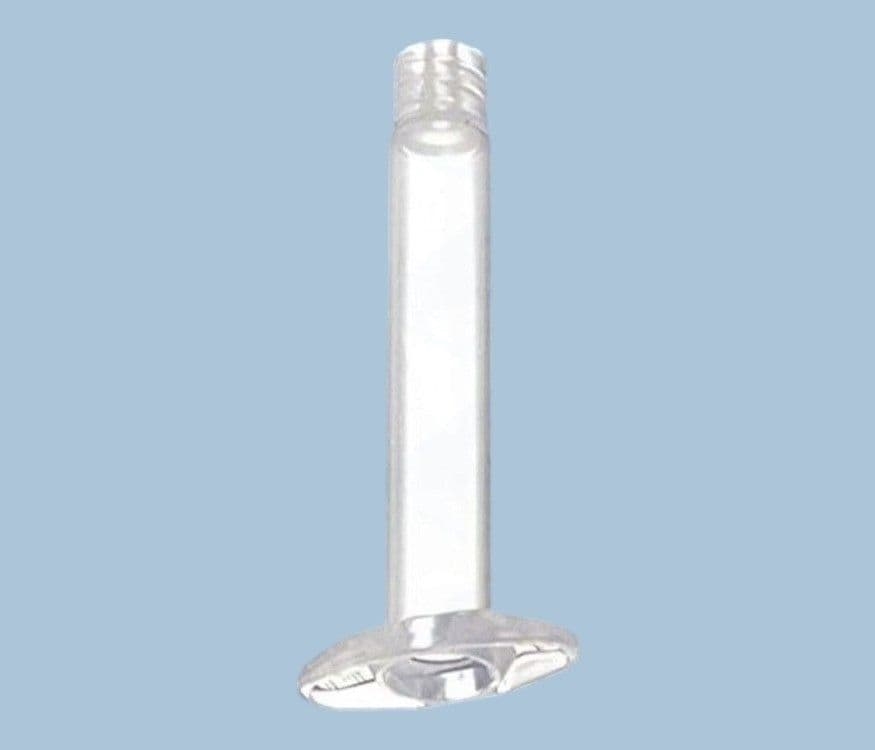

3cc Clear Syringe Barrel AD903-N pk/500
Product Code: AD903-N-500
Price: £115.00
Description
Adhesive Dispensing Ltd 900
Series Premier dispensing syringe barrels are silicone and chloride-
free and designed to work with dispensing equipment - either manually or
on a pneumatic dispenser. The syringe barrels are made from low
friction polypropylene to ensure accuracy, repeatability and
productivity. Features a double Helix Luer lock for secure dispense tip attachment. Supplied in sealed packs. Natural (clear) colour.
Plastic wiper pistons available for all barrel sizes as well as end caps and adapter assemblies. Use a piston for thick pastes, gels, etc. to prevent air pushing through materials inside the barrel. Use a piston for watery liquids to improve flow. Maximum operating pressure is 100 psi (6.9bar). Pack of 500 parts. Ships direct from stock - no lead times.
Specifications:
Material High Density Polypropylene (HDPP)
Volume Capacity 3cc (3ml)
Total Overall Length 2.981" (75.72mm)
Outer Diameter 0.45" (11.42mm)
Inner Diameter 0.38" (9.58mm)
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Colour Natural (Clear)
Part: AD903-N-500
Maximum Pressure: 100 PSI
Commodity HS Code: 39269097
Details: Silicone-Free, Industrial Grade
Commodity Code: 39269097
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Plastic wiper pistons available for all barrel sizes as well as end caps and adapter assemblies. Use a piston for thick pastes, gels, etc. to prevent air pushing through materials inside the barrel. Use a piston for watery liquids to improve flow. Maximum operating pressure is 100 psi (6.9bar). Pack of 500 parts. Ships direct from stock - no lead times.
Specifications:
Material High Density Polypropylene (HDPP)
Volume Capacity 3cc (3ml)
Total Overall Length 2.981" (75.72mm)
Outer Diameter 0.45" (11.42mm)
Inner Diameter 0.38" (9.58mm)
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Colour Natural (Clear)
Part: AD903-N-500
Maximum Pressure: 100 PSI
Commodity HS Code: 39269097
Details: Silicone-Free, Industrial Grade
Commodity Code: 39269097
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Silicone and chloride free Industrial grade safe to 100 psi
- Resistant to aggressive fluids and solvents
- Wide flanges for secure air attachment
- Luer lock tip attachment
- Zero draft inner walls for precision
