10cc Manual Syringe Gun Dispenser 910-MSG
Product Code: 910-MSG
Price: £39.00
Description
Syringe Gun dispensers are designed for the controlled application of pastes, gels, adhesives and fluids. A cost effective quality made syringe dispensing gun for use with standard 10cc/ 10ml size syringe barrels. Ideal for low volume production, out in the field, re-work or repair work.
Syringe gun dispensers offer a low cost dispensing solution for most medium to high viscosity pastes, gels, silicones, greases and other liquids. A portable and lightweight manual dispenser for applying most fluids. A 7:1 ratio leverage for effortless trigger movement. The rod moves 3mm (1/8") once pressed to provide repeat deposits without drips or ooze.
Push the button to release plunger rod. Simple bayonet twist on/ twist off barrel attachment. Ideal for applying solder paste, solder flux, RTV, silicones, sealants, gels, greases, compounds, PVA glues and many other liquids/ pastes.

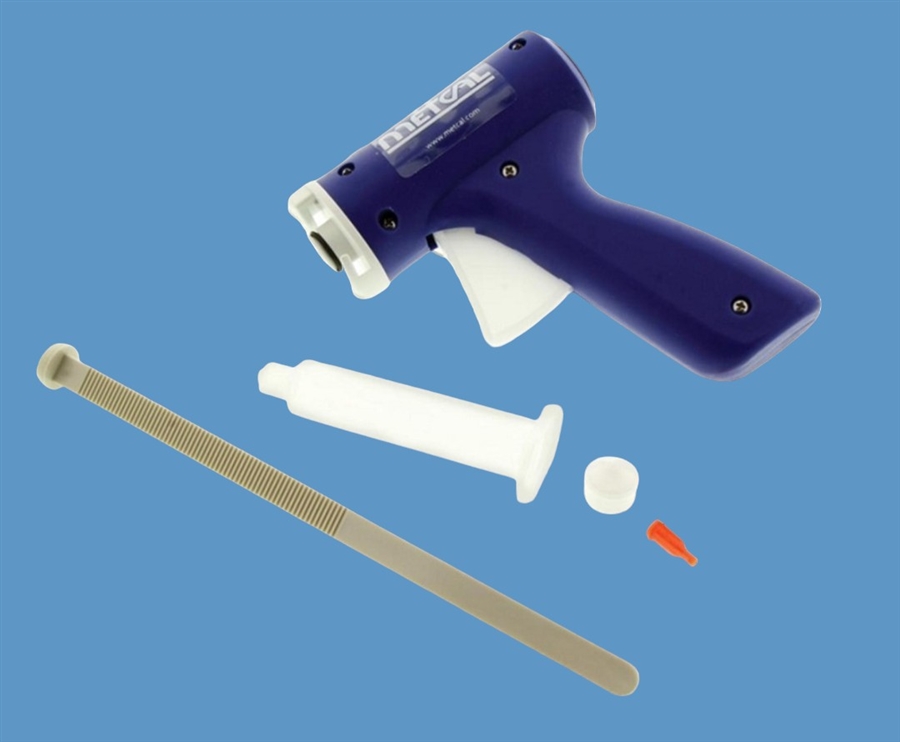

Each Syringe Gun includes the 10ml manual hand gun, (1) dispensing reservoir with piston, (1) storage end and tip caps, (5) dispensing tip. Barrels are attached to the syringe gun using wide flanges. This ensures the barrel does not break under constant use or hand pressure. This 10ml gun is also available conveniently supplied complete with our full component kit.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Syringe gun dispensers offer a low cost dispensing solution for most medium to high viscosity pastes, gels, silicones, greases and other liquids. A portable and lightweight manual dispenser for applying most fluids. A 7:1 ratio leverage for effortless trigger movement. The rod moves 3mm (1/8") once pressed to provide repeat deposits without drips or ooze.
Push the button to release plunger rod. Simple bayonet twist on/ twist off barrel attachment. Ideal for applying solder paste, solder flux, RTV, silicones, sealants, gels, greases, compounds, PVA glues and many other liquids/ pastes.
Each Syringe Gun includes the 10ml manual hand gun, (1) dispensing reservoir with piston, (1) storage end and tip caps, (5) dispensing tip. Barrels are attached to the syringe gun using wide flanges. This ensures the barrel does not break under constant use or hand pressure. This 10ml gun is also available conveniently supplied complete with our full component kit.
Specifications:
Weight: 0.1kg/0.2lbs
Gun Length: 175.0mm
Maximum Thrust: 1.5kN
Handle Material: Glass Filled Nylon
Frame Material: Glass Filled Nylon
Tool Component Approvals: REACH
Cartridge Capacity: 10mL (10cc)
Mechanical Advantage Ratio: 7:1
Viscosity: Low/Medium
Standard Colour: Grey/Blue
Commodity Code: 90289090
Materials: Polypro/ Nylon
Warranty: 1 Year
Weight: 0.1kg/0.2lbs
Gun Length: 175.0mm
Maximum Thrust: 1.5kN
Handle Material: Glass Filled Nylon
Frame Material: Glass Filled Nylon
Tool Component Approvals: REACH
Cartridge Capacity: 10mL (10cc)
Mechanical Advantage Ratio: 7:1
Viscosity: Low/Medium
Standard Colour: Grey/Blue
Commodity Code: 90289090
Materials: Polypro/ Nylon
Warranty: 1 Year
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Includes syringe barrel, piston, caps and tip
- Easy hand lever leverage
- Controlled deposit or bead
- Lightweight robust construction
- Quick syringe attachment
- Low cost dispensing solution
