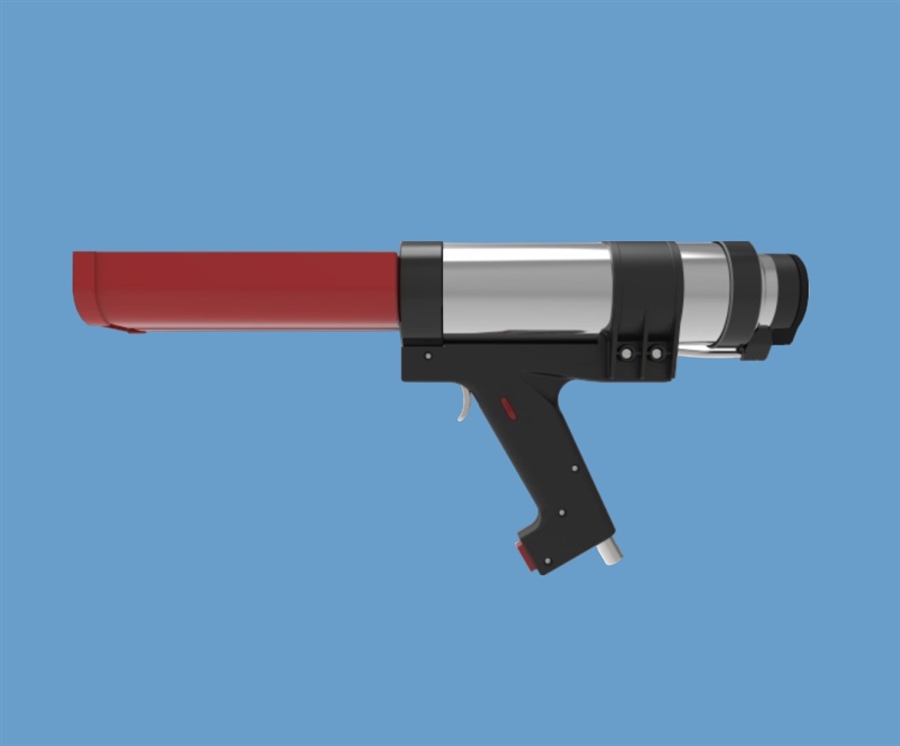

400ml Pneumatic Dual Gun 1:1 TS483 XM
Product Code: TS483-XM
Price: £0.00
Description
For epoxies, adhesives and other materials that are supplied in 400ml two part, side-by-side 1:1 ratio cartridges with the use of a static mixing nozzle.
The lightweight and durable construction of the dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all
assembly fluids - from watery liquids, solvents, primers and activators
through to thick pastes, sealants, silicones, gels and epoxies.
Specifications:
Lightweight: 2.6kg / 5.6lbs
Cartridge Holder Length: 203mm / 8inch
Maximum Thrust: 4kN
Maximum Pneumatic Pressure: 8bar / 116psi
Air Consumption: 40 litres/minute
Handle Material: Reinforced Nylon
Cartridge Holder Material: Aluminum
Frame Material: Steel
Tool Component Approvals: CE
Cartridge Capacity: 400mL (14.1oz)
Cartridge Ratio: 1:1
Viscosity: Medium/High
Standard Colour: Black/Red
Warranty: 1 Year
Lightweight: 2.6kg / 5.6lbs
Cartridge Holder Length: 203mm / 8inch
Maximum Thrust: 4kN
Maximum Pneumatic Pressure: 8bar / 116psi
Air Consumption: 40 litres/minute
Handle Material: Reinforced Nylon
Cartridge Holder Material: Aluminum
Frame Material: Steel
Tool Component Approvals: CE
Cartridge Capacity: 400mL (14.1oz)
Cartridge Ratio: 1:1
Viscosity: Medium/High
Standard Colour: Black/Red
Warranty: 1 Year
Features
- Infinitely Adjustable working pressure
- Robust integral ram, precision and play-free drive
- For Use with 400 ml Cartridges 1:1 ratio
- Air Regulator
- Air Dump Valve Stops Flow Instantly
- Industrial strength aluminum alloy, Wear-mechanism
- Extremely user-friendly ergonomic design
- Balanced and lightweight
- Built-in user safety relief valve
- Safety switch (no feed when no cartridge inserted)
