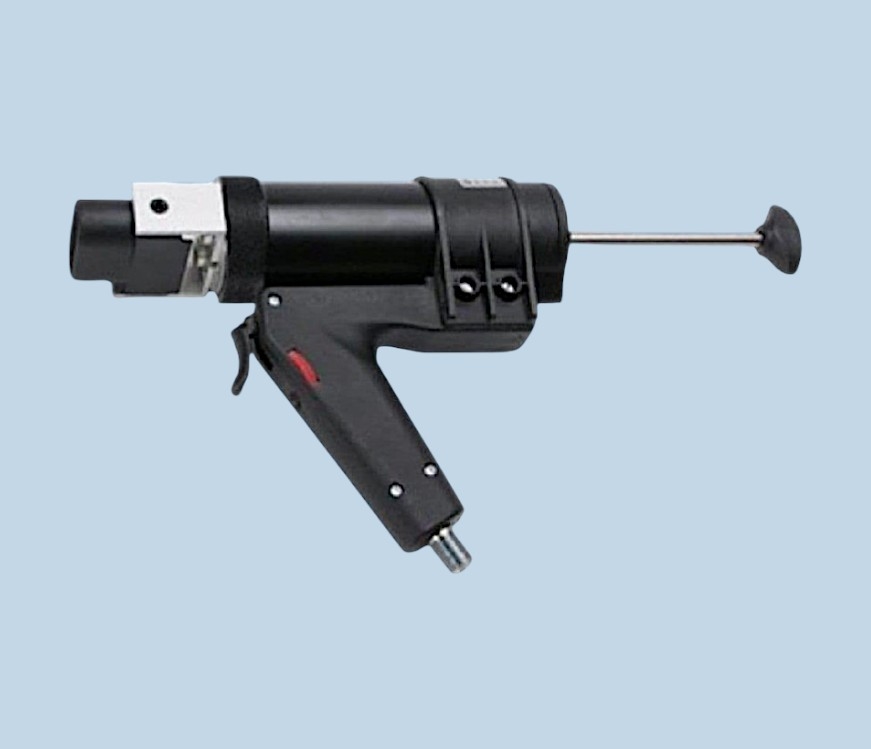

50ml/ 75ml Pneumatic Dual Gun EDS408-MY-8
Product Code: EDS408-MY-8
Price: £0.00
Description
For adhesives which are supplied in 50ml and 75ml two part, side-by-side syringe cartridges and that push the adhesive through a static mixing nozzle. The lightweight portability and durable construction of the pneumatic guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.
Features an adjustable flow control. Supplied with user guide and warranty card.
This gun will handle all ratio 50ml cartridges including 1:1, 2:1 and 4:1. Ideal for use with prefilled adhesive cartridges. This gun uses metal rods that push down into the cartridge pistons to provide an even flow. An adjustable wheel to set the flow rate.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features an adjustable flow control. Supplied with user guide and warranty card.
This gun will handle all ratio 50ml cartridges including 1:1, 2:1 and 4:1. Ideal for use with prefilled adhesive cartridges. This gun uses metal rods that push down into the cartridge pistons to provide an even flow. An adjustable wheel to set the flow rate.
Specifications:
Lightweight: 0.73kg / 1.6lbs
Dispenser Length: 303mm / 11.9in
Maximum Thrust: 1.3kN
Maximum Pneumatic Pressure: 8bar / 116psi
Air Consumption: 40 litres/minute
Handle Material: Reinforced Nylon
Cartridge Holder Material: Reinforced Nylon
Tool Component Approvals: CE
Cartridge Capacity: 50mL (1.8oz), 75mL (2.5oz)
Cartridge Ratio: 1:1, 2:1, 4:1
Viscosity: High
Standard Colour: Black
Warranty: 1 Year
Lightweight: 0.73kg / 1.6lbs
Dispenser Length: 303mm / 11.9in
Maximum Thrust: 1.3kN
Maximum Pneumatic Pressure: 8bar / 116psi
Air Consumption: 40 litres/minute
Handle Material: Reinforced Nylon
Cartridge Holder Material: Reinforced Nylon
Tool Component Approvals: CE
Cartridge Capacity: 50mL (1.8oz), 75mL (2.5oz)
Cartridge Ratio: 1:1, 2:1, 4:1
Viscosity: High
Standard Colour: Black
Warranty: 1 Year
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Fits all 50ml 75ml multi size cartridges
- Easy cartridge load and unload
- Controlled deposit or beads
- Lightweight robust construction
- Fast air exhaust reduces drips
- Built in adjustable air regulator
