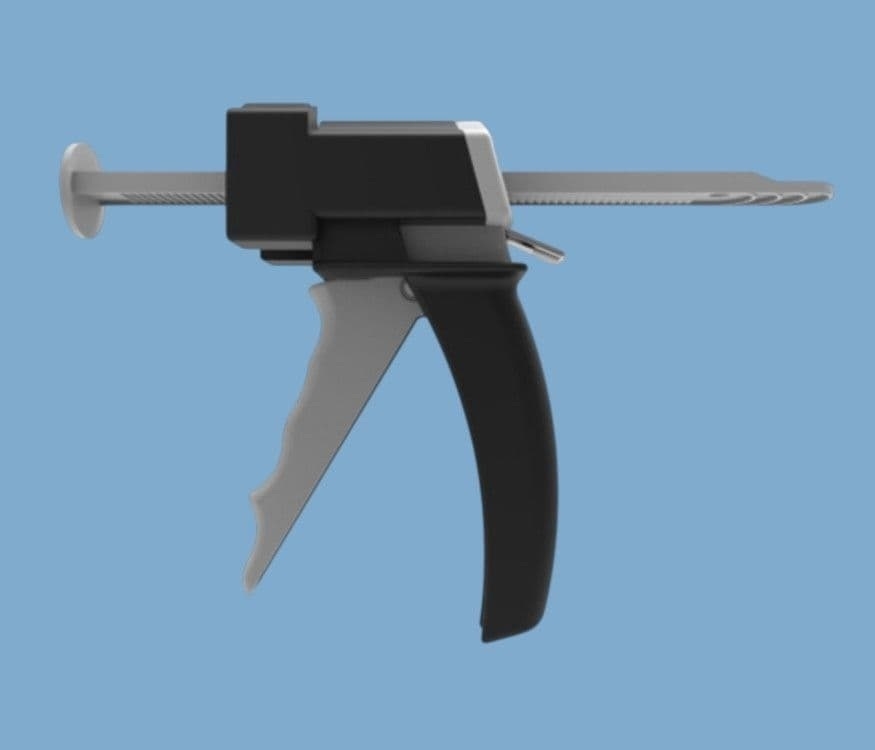

30cc Manual Syringe Gun Dispenser MPD 32
Product Code: MPD32
Price: £0.00
Description
The MPD 32 is a manual hand syringe applicator gun for use with 30cc size syringe barrels. With a slot-in barrel design for a very secure attachment and removal. Features an easy trigger action for long periods of use without hand fatigue. A lever is used to pull the plunger rod back when replacing barrels. Available as a basic applicator gun only or supplied with full syringe barrel, piston and tip kit.
Use this applicator for applying controlled deposits of silicone RTVs, sealants, pastes, gels, glues and other materials. A robust and easy to use applicator for low volume applications, prototype work and field work.
Features:
Engineered to provide high thrust
Minimum trigger pressure
Ergonomic handle and trigger
Simple breach loading mechanism
Easy comfortable operation
For effortless use
For minimum fatigue
Ensures cartridges are held securely
Gives worry free performance
Engineered to provide high thrust
Minimum trigger pressure
Ergonomic handle and trigger
Simple breach loading mechanism
Easy comfortable operation
For effortless use
For minimum fatigue
Ensures cartridges are held securely
Gives worry free performance
Specifications:
Weight: 0.2kg
Frame Length: 210mm
Maximum Thrust: 2.5kN
Handle Material: Glass Filled Nylon
Frame Material: Glass Filled Nylon
Tool Component Approvals: REACH
Cartridge Capacity: 30mL (1oz)
Mechanical Advantage Ratio: 16:1
Viscosity: Low/Medium
Standard Colour: Grey/Black
Commodity Code: 90289090
Weight: 0.2kg
Frame Length: 210mm
Maximum Thrust: 2.5kN
Handle Material: Glass Filled Nylon
Frame Material: Glass Filled Nylon
Tool Component Approvals: REACH
Cartridge Capacity: 30mL (1oz)
Mechanical Advantage Ratio: 16:1
Viscosity: Low/Medium
Standard Colour: Grey/Black
Commodity Code: 90289090
This product is shipped with the following:
1 x 30cc barrel (choose clear, black or amber)
1 x 30cc white wiper piston
1 x 30cc red end cap
1 x black tip cap
1 x 18 gauge tapered tip
1 x 30cc barrel (choose clear, black or amber)
1 x 30cc white wiper piston
1 x 30cc red end cap
1 x black tip cap
1 x 18 gauge tapered tip
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Includes syringe, piston, caps and tip
- Easy hand lever leverage
- Controlled deposit or bead
- Lightweight robust construction
- Quick syringe attachment
- Low cost dispensing solution
