Description

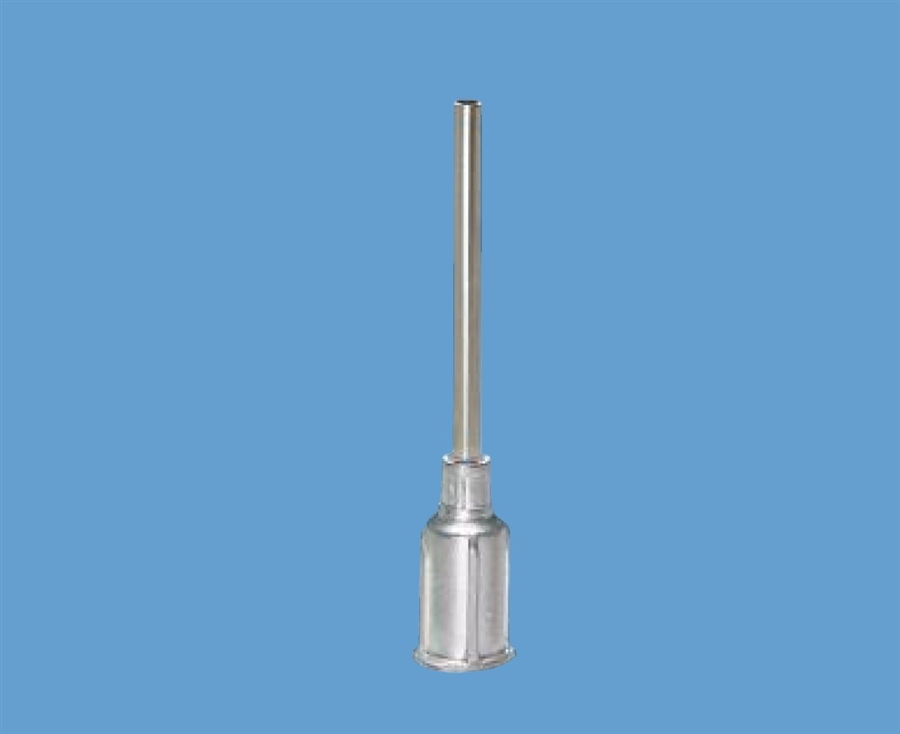

Blunt end aluminium needle tips 1.5" long in 16 gauge burr free precision tube. 0.047" ID, 0.058" OD. Precision aluminium hubs to burr-free stainless steel shafts. This tip suits the most aggressive of fluids, chemicals, solvents and many adhesives and gels as the hub to shaft is crimped and therefore solvents will not affect a glue bond. Standard luer lock twist fit hub for attachment to all syringes or valves. Supplied in a sealed box of 50 tips.
Gauge size - 16
Tube Length - 1.50" - 38.1 mm
Inner Diameter - 0.047" - 1.193 mm
Outer Diameter - 0.058" - 1.450 mm
Hub: Aluminium
Cannula: Stainless Steel
Rating - Safe for use to 100 psi
Colour - Silver
Details - Silicone Free
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Resistant to aggressive fluids and solvents
- Variable lengths and gauge sizes
- Aluminium hub to steel shaft
- Burr free
- Silicone free products
- Supplied in sealed packs
