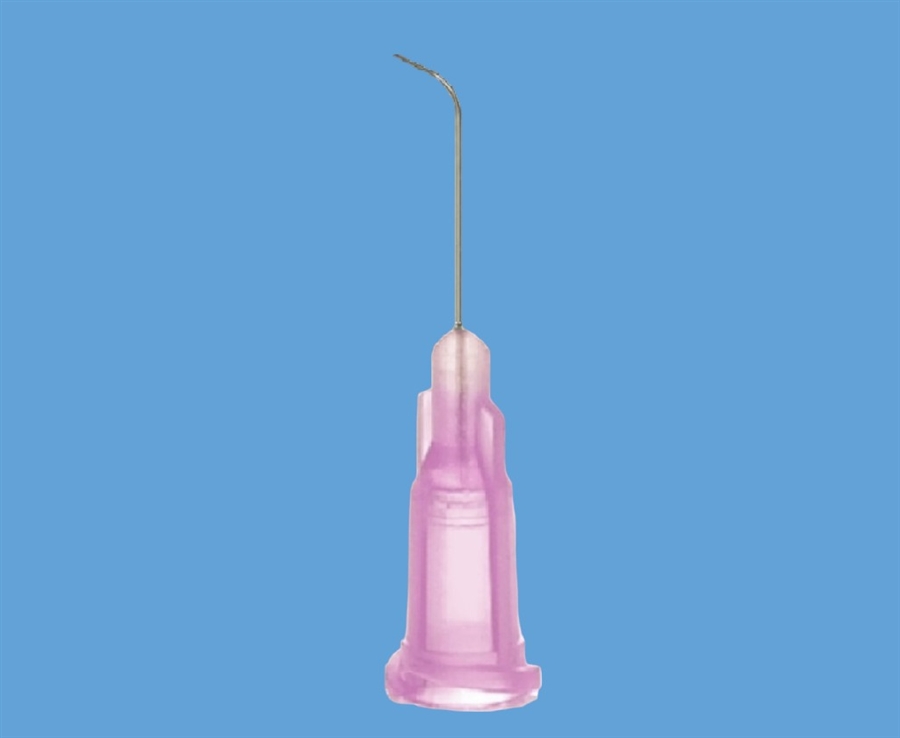

30 Gauge 60 Bend Tip Lavender AD73010060-50
Product Code: AD73010060PK
Price: £14.50
Description
Precision stainless steel burr-free tube to moulded
colour coded polypropylene hub with double-helix luer lock. Use this tip for
dispensing adhesives, solvents, glues, primers, activators and others. A 60 degree angle bent
stainless shaft length of 1". UV filter hub protects UV cure adhesives.
The AD needle series consist of a stainless-steel
shaft with a double helix polypropylene hub. This premier line of dispensing
needles is burr-free, and electro-polished shaft for unobstructed and
consistent material flow. Suitable for dispensing most fluids, adhesives and
solvents. Certified silicone-free, chloride-free and industrial grade safe for
use to 100 psi. Use these tips for applying most liquids for high precision
controlled dispensing.
Tips are colour coded for gauge size. The tip
features a tapered internal design where the shaft meets the hub to improve
fluid flow and reduce any restriction. This allows for a lower pressure to be
used for dispensing liquids and pastes.
Part ID: AD73010060-50
Gauge Size: 30
Materials: Polypropylene/ Stainless Steel
Hub Colour: Lavender
Tube ID: 0.006" - 0.15 mm
Tube OD: 0.012" - 0.30 mm
Tube Length: 1.0" - 25.4 mm
Maximum Pressure: Up to 100 PSI
Details: Industrial grade, Silicone Free
Commodity Code: 39269097
Brand: Adhesive DIspensing Ltd
Features
- Precision burr free tubing 1" length
- Silicone free safe plastics
- Safe for use up to 100 psi
- Double helix luer lock colour coded hubs
- UV filter plastic hubs
- For all fluids, adhesives and solvents
