60° dispense tip 18 gauge 0.5" long TE71805060

Description

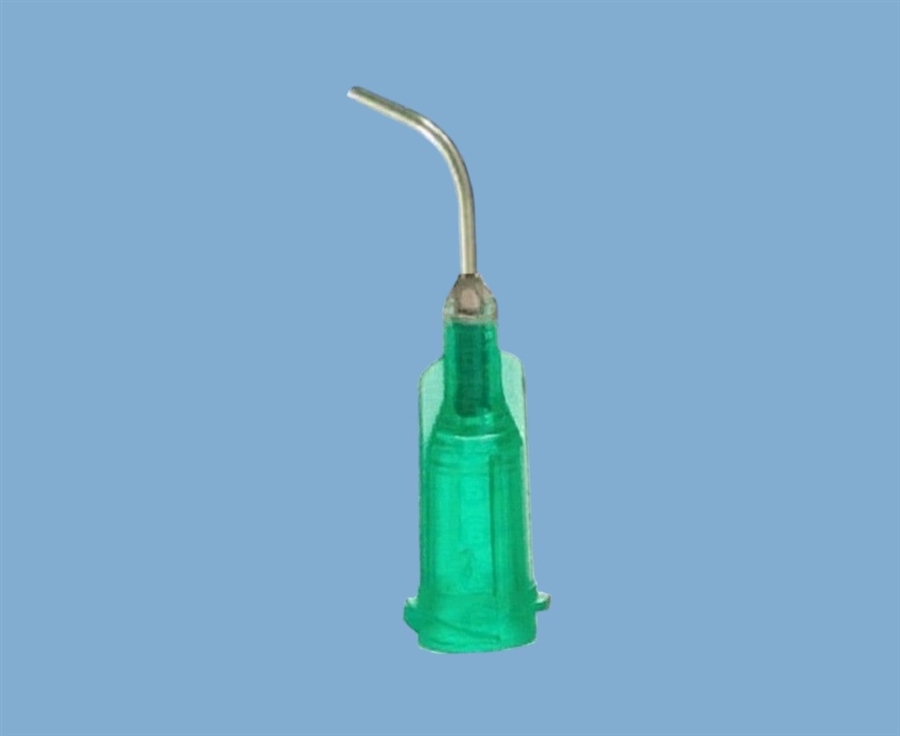

Precision stainless steel burr-free tube to moulded colour coded polypropylene hub with double-helix luer lock. Use this tip for dispensing adhesives, solvents, glues, primers, activators and others. A 60 degree angled bent stainless shaft length of 0.50". UV filter hub protects UV cure adhesives. Pricing is for a pack of 50.

The TE needle series consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi. Use these tips for applying most liquids for high precision controlled dispensing.

Tips are colour coded for gauge size. The tip features a tapered internal design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids and pastes. Pricing is for a pack of 50 tips.

Part ID: TE71805060PK

Materials: Polyethylene/ Stainless Steel
Hub Colour: Green
Tube ID: 0.033" - 0.84 mm
Tube OD: 0.050" - 1.27 mm
Tube Length: 0.50" - 12.7 mm
Maximum Pressure: Up to 100 PSI
Details: Industrial grade, Silicone Free

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Precision burr free tubing
0.5" length
Silicone free safe plastics
Safe for use up to 100 psi
Double helix luer lock colour coded hubs
UV filter plastic hubs
For all fluids, adhesives and solvents
