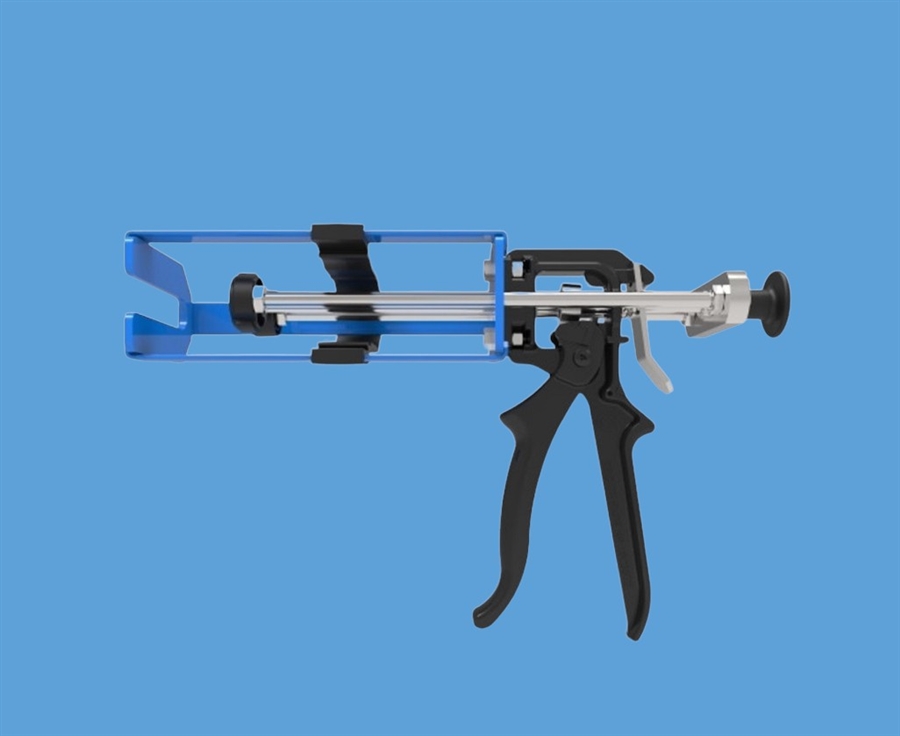

200ml Manual Dual Gun Multi Ratio VBM200MR
Product Code: VBM200MR
Price: £49.00
Description
This applicator is used for epoxies, adhesives, silicones, polyurethanes, potting compounds and other materials that are supplied in 200ml dual side-by-side 1:1, 2:1, 4:1 and 10:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of these dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.
This applicator is suited to low to medium viscosity materials. It has an 18:1 mechanical thrust ratio.
This is a lightweight hand trigger operated cartridge gun supplied with parts to handle a variety of cartridge ratio's. The VBM Series guns are covered by a 1 year warranty and feature a wear compensating device. Supplied with disc kit for easy change of ratio.
Part ID: VBM200MR
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
This applicator is suited to low to medium viscosity materials. It has an 18:1 mechanical thrust ratio.
This is a lightweight hand trigger operated cartridge gun supplied with parts to handle a variety of cartridge ratio's. The VBM Series guns are covered by a 1 year warranty and feature a wear compensating device. Supplied with disc kit for easy change of ratio.
Part ID: VBM200MR
Lightweight: 1.5kg / 3.3lbs
Cartridge Holder Length: 212mm / 8.3inch
Maximum Thrust: 3.5kN
Handle Material: Epoxy Coated Aluminum
Frame Material: Epoxy Coated Steel
Tool Component Approvals: REACH
Cartridge Capacity: 200mL (7oz)
Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
Mechanical Advantage Ratio: 18:1
Viscosity: Medium/ High
Standard Colour: Black/ Blue
Warranty: 1 Year
Commodity Code: 90289090
Origin: United Kingdom
Cartridge Holder Length: 212mm / 8.3inch
Maximum Thrust: 3.5kN
Handle Material: Epoxy Coated Aluminum
Frame Material: Epoxy Coated Steel
Tool Component Approvals: REACH
Cartridge Capacity: 200mL (7oz)
Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
Mechanical Advantage Ratio: 18:1
Viscosity: Medium/ High
Standard Colour: Black/ Blue
Warranty: 1 Year
Commodity Code: 90289090
Origin: United Kingdom
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- 18:1 Thrust Ratio
- For Use with 200ml size Cartridges
- Easily Converts in Just Seconds to Mix Ratios of 1:1, 2:1, 4:1, and 10:1
- Snap In/Snap Out Push Disks
- Precision Sintered Friction Plate
- Easy Release Star-Burst Reverse Gripping Plate
- Hammered Finish Zinc Alloy Handle with Comfort Grip
- Slide in/Side Load
