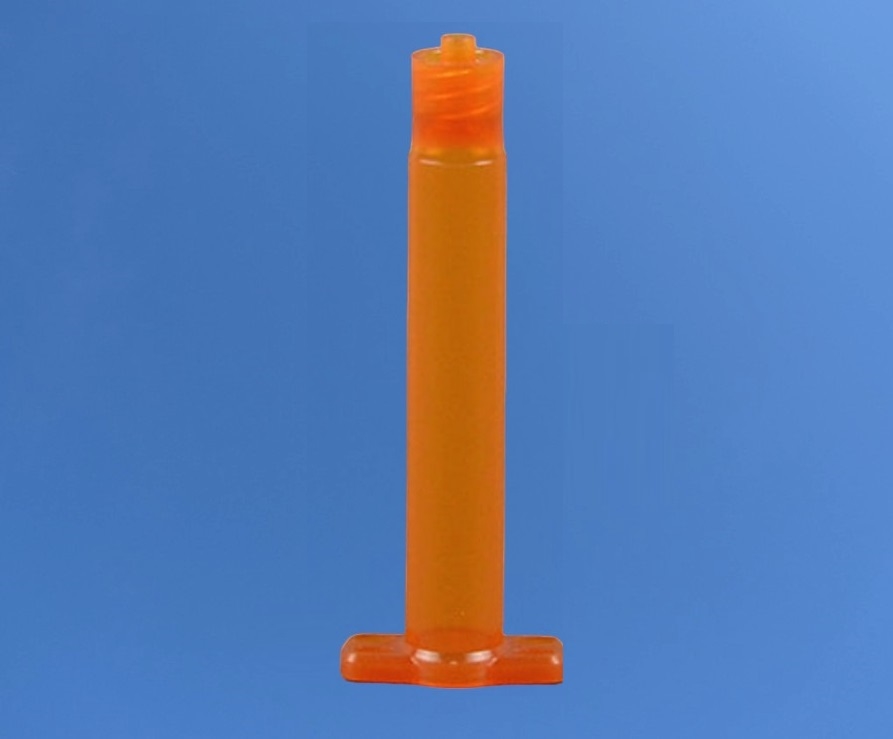

3cc Amber Syringe Barrel ADV803BA pk/50
Product Code: ADV803BA
Price: £15.50
Description
Our new ADV series barrels are the highest quality dispensing syringe barrels for use with pneumatic dispensers as well as manual applicators. These parts are silicone and chloride-free. The barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity. Barrels feature a double helix luer lock for secure twist-on dispense tip attachment. Supplied in sealed packs. Amber tinted colour for use with UV cure adhesives. Amber provides protection of UV/visible light block (up to 520nm).
The rounded end design provides an easier flow path to reduce material back pressure. It adds a benefit for less air entrapment when filling. These products are optimum performance and premium grade.
A universal polyethylene wiper piston is available that seals the material from air, provides a consistent wipe, protects against drawback and reduces fumes. Use a piston for thick pastes, gels or liquids to improve flow. Maximum operating pressure for all components is 100 psi (6.9bar). These parts ship direct from stock. Supplied in a pack of 50 parts.
Material High Density Polypropylene (HDPP)
Volume Capacity 3cc (3ml)
Total Overall Length 2.981" (75.72mm)
Outer Diameter 0.45" (11.42mm)
Inner Diameter 0.38" (9.58mm)
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Colour Amber (Tint)
Mfg. Part Code: ADV803BA
Maximum Pressure: 100 PSI
Mfg. Adhesive Dispensing Ltd
Commodity HS Code: 39269097
Details: Silicone-Free, Industrial Grade
Lead Time: Ex Stock
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Silicone and chloride free Industrial grade safe to 100 psi
- Resistant to aggressive fluids and solvents
- Wide flanges for secure air attachment
- Luer lock tip attachment
- Zero draft inner walls for precision
