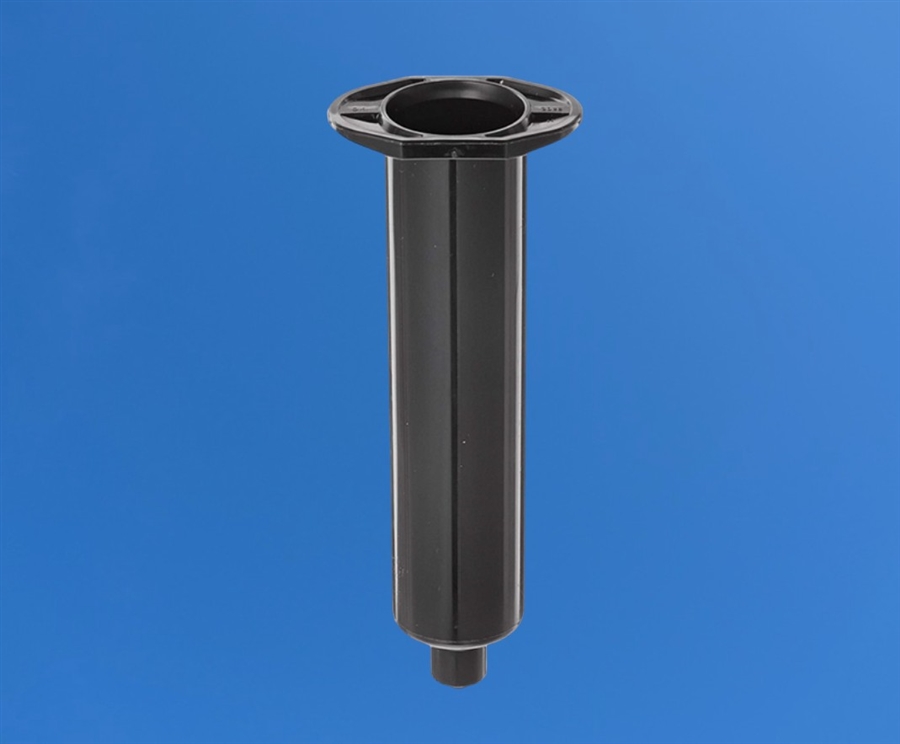

30cc 5601016 Silicone Free Syringe Barrel Black pk/10
Product Code: 5601016
Price: £5.20
Description
High performance dispensing syringe barrels that are silicone and chloride- free and designed to work with dispensing equipment - either manually or on a pneumatic dispenser. The syringe barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity.
Features a double Helix Luer lock for secure dispense tip attachment. Supplied in sealed packs of (10) pcs. Black (opaque) colour suitable for use with all UV cure and light sensitive adhesives.
Plastic wiper pistons are available for all barrel sizes as well as end caps and adapter assemblies. Use a wiper piston for thick pastes, gels, etc. to prevent air pushing through materials inside the barrel. Use a piston for watery liquids to improve flow and reduce fumes. Maximum operating pressure is 100 psi (6.9bar).
MPN: 5606016
Material High Density Polypropylene (HDPP)
Volume Capacity 30cc (30ml) Total
Overall Length 4.66" - 118.36mm
Outer Diameter 0.99" - 25.27mm
Inner Diameter 0.89" - 22.63mm
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Maximum Air Pressure: 100 PSI
Colour Black (Opaque)
Commodity Code: 39269097
Origin: United States
Material High Density Polypropylene (HDPP)
Volume Capacity 30cc (30ml) Total
Overall Length 4.66" - 118.36mm
Outer Diameter 0.99" - 25.27mm
Inner Diameter 0.89" - 22.63mm
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Maximum Air Pressure: 100 PSI
Colour Black (Opaque)
Commodity Code: 39269097
Origin: United States
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Silicone and chloride free plastics
- Industrial grade safe to 100 psi
- Resistant to aggressive fluids and solvents
- Wide flanges for secure air attachment
- Luer lock tip attachment
- Zero draft inner walls for precision
- Black for UV adhesives
