3 Axis Robot 400mm Inline Cantilever AD9430X
Product Code: AD9430X
Price: £8,750.00
Description

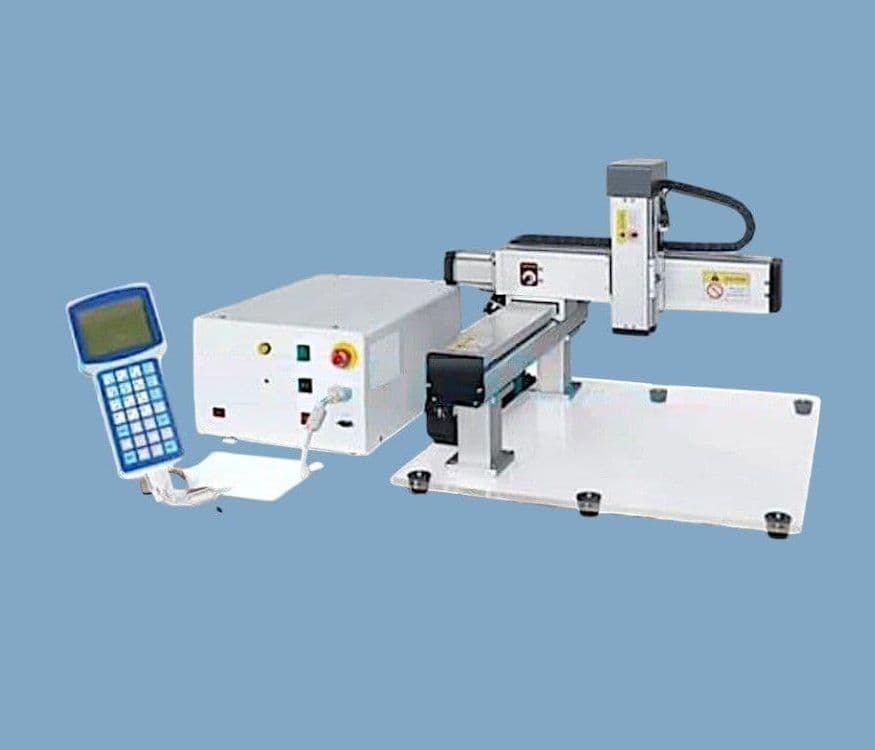

3 Axis Robot 400mm x 300mm x 150mm area. Teach Pendant, Dispenser, Controller Box.
Systems will dispense virtually any assembly fluid and adhesive or liquid paste, from thin, watery liquids and solvents to thick gels, silicones and brazing pastes. All are applied quickly, accurately to reduce waste, mess and hand fatigue.
These versions allow parts to be placed on the base or fed underneath, as part of a production assembly line.
Programming is simple with easy to follow English language instructions. Commands are followed and responses entered by a Teach Pendant. A program can be created quickly and simply. All machines include signal interface for connection to tools and controllers. Supplied with a digital pneumatic dispenser and syringe barrel/ tip packs.
Data transfer and file import to robot teach pendant via USB. Mini SD file memory with high speed 2GB capacity. Automatic gel prevention mode to avoid curing glue setting in the nozzle or tip.
XYZ Robot Working Area/ mm: 400 / 300 / 150
Total Load - Z axis: 10kg Y axis: 20kg
Max. Speed X&Y / Z (mm/sec): 400 / 300
Repeatability: +/- 0.02mm/ Axis
Resolution: 0.01mm/ Axis
Data Memory: 999 programs
Drive System/Stepping Motor: Micro stepping motor
Motion Control: PTP & CP
Teaching Method: Teach Pendant
I/O Signals: 4 Inputs / 4 Outputs
External Interface: USB / RS232
Power Supply: 110/ 220V AC
Weight: 27 kg
Commodity Code: 84795000
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for form-in-place gaskets, adhesives, potting, coating and filling
- High resolution 0.01mm
- Performs continuous path and point-to-point motions
- Quick fluid-purge button located on front panel
- Step-and-repeat functions _ program one object only for multiple identical objects
- On board 999 programs, 900,000 point memory capacity
- Available without Teach Pendant for multiple installations
- 1 Year Warranty - CE Certified
