3 Axis Robot 300mm Epoxy System AD300AB
Product Code: AD300AB
Price: £7,450.00
Description

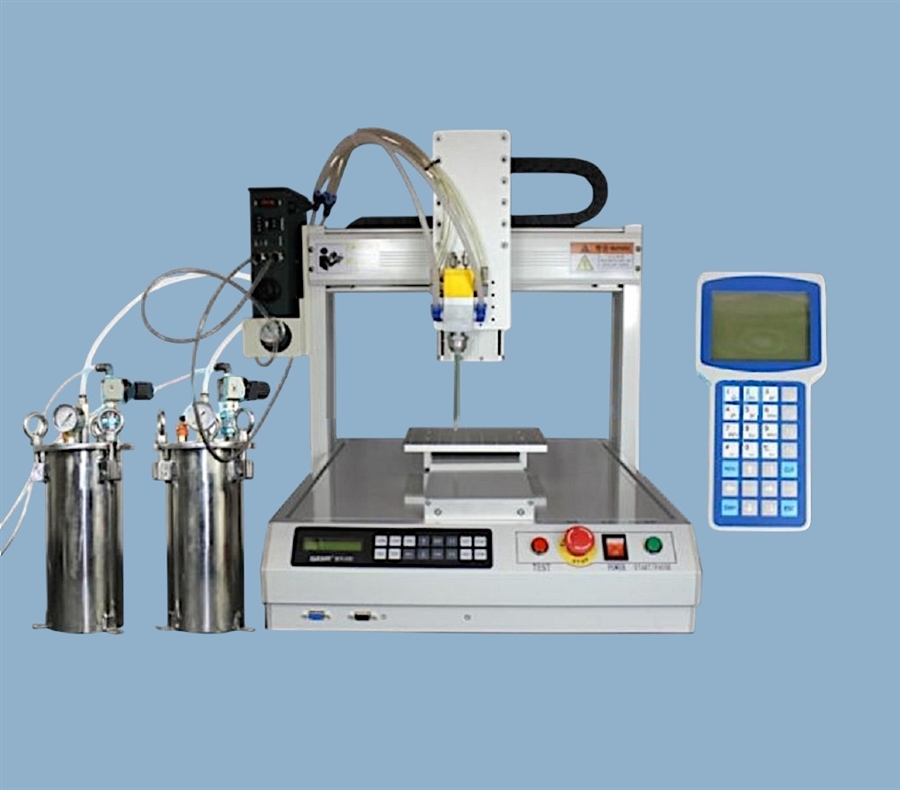

A powerful desktop robot with a working area of 11.81" x 11.81" (300 x 300mm). Its reduced bench top footprint makes it an ideal robot for automating a dispensing application that may be currently performed manually. Programming is by teach-pendant, using the industry's leading dispensing software that walks the user through step-by-step instructions to create a sophisticated dispensing operation in minutes.
The AD series bench top dispensing robots are a cost effective solution combining high level programming technology with precision placement engineering. The 300 series are a compact, heavy duty design, which are easily programmed using simple step-by-step instructions. A robust cast construction provides additional stability when working to fine tolerances. Systems will dispense virtually any assembly fluid and adhesive or liquid paste. This specification is for 2k materials.
This version is setup for dispensing two-part epoxy resins, PUs, silicones, potting compounds, etc. It has a dual feed valve head allowing the materials to be fed separately and then dispense as they blend in a mixer nozzle. It also has 2 x 1 litre pressure pots, one for the main resin and the other for the catalyst. This system works for materials under 30,000 cps with a mix ratio of under 3 to 1 by volume.
Programming is simple with easy to follow english language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 4 I/O signal interface for connection to tools and controllers. Supplied with a timed shot pneumatic dispenser, I/O cable, teach pendant, power cables, airline hoses, valve mounting bracket, 2K valve head, two (2 litre) pressure pots, mix nozzle pack, user guides.
The AD series bench top dispensing robots are a cost effective solution combining high level programming technology with precision placement engineering. The 300 series are a compact, heavy duty design, which are easily programmed using simple step-by-step instructions. A robust cast construction provides additional stability when working to fine tolerances. Systems will dispense virtually any assembly fluid and adhesive or liquid paste. This specification is for 2k materials.
This version is setup for dispensing two-part epoxy resins, PUs, silicones, potting compounds, etc. It has a dual feed valve head allowing the materials to be fed separately and then dispense as they blend in a mixer nozzle. It also has 2 x 1 litre pressure pots, one for the main resin and the other for the catalyst. This system works for materials under 30,000 cps with a mix ratio of under 3 to 1 by volume.
Programming is simple with easy to follow english language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 4 I/O signal interface for connection to tools and controllers. Supplied with a timed shot pneumatic dispenser, I/O cable, teach pendant, power cables, airline hoses, valve mounting bracket, 2K valve head, two (2 litre) pressure pots, mix nozzle pack, user guides.
X/Y/Z Work area (mm): 300 / 300 / 100
Worktable load / Tool: 15 kg. / 6 kg.
Max. Speed X&Y / Z: 800 / 350 (mm/sec)
Repeatability: +/- 0.02mm/ Axis
Resolution: 0.01mm/ Axis
Data Memory: 999 Programs
4,000 points / program
Drive Sys. / Stepping motor: 3-phase
Motion Control: PTP & CP
Teaching Method: Teach Pendant
I/O signals: 4 inputs / 4 outputs
External Interface: RS232
Power Supply: AC 110-220V
Dimensions (WxDxH): 500 x 580 x 629
Weight: 35kg
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for form-in-place gaskets, adhesives, potting, coating and filling
- High resolution 0.001mm
- Performs continuous path and point-to-point motions
- Quick fluid-purge button located on front panel
- Step-and-repeat functions _ program one object only for multiple identical objects
- On board 999 programs, 900,000 point memory capacity
- Available without Teach Pendant for multiple installations
- 1 Year Warranty - CE Certified
