3 Axis Robot 400mm Silicone System AD400ACR
Product Code: AD400AS
Price: £6,250.00
Description

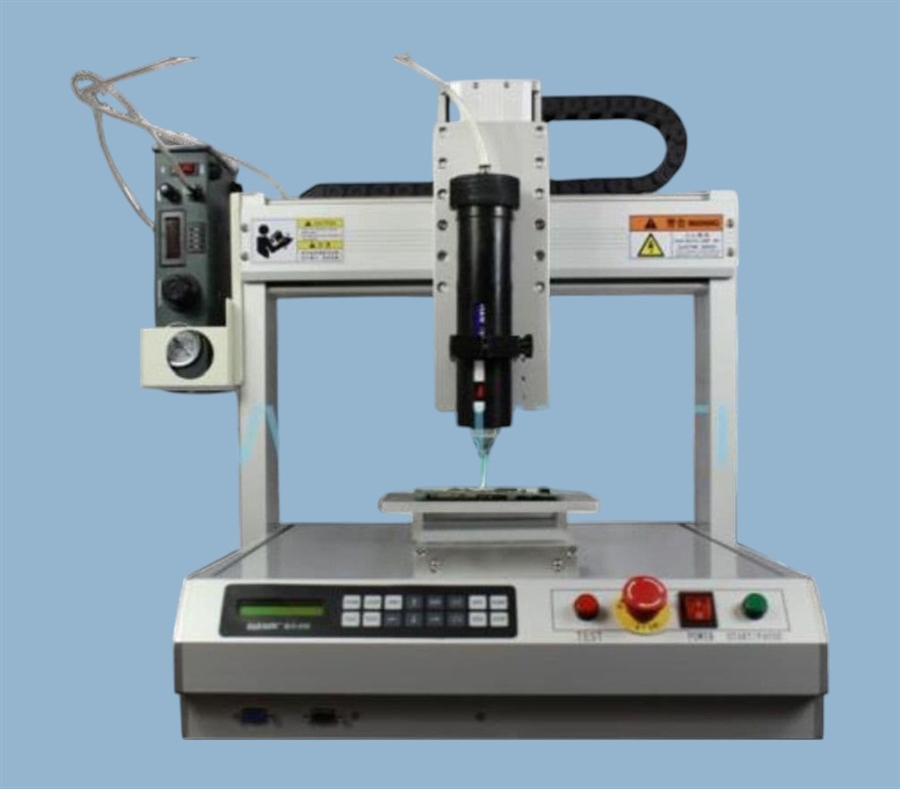

A powerful desktop robot with a working area of 15.75" x 15.75" (400mm x 400mm). Its reduced bench top footprint makes it an ideal robot for automating a dispensing application that may be currently performed manually. Programming is by teach-pendant, using the industry's leading dispensing software that walks the user through step-by-step instructions to create a sophisticated dispensing operation in minutes.
The 400 series bench top dispensing robots are a cost effective solution combining high level programming technology with precision placement engineering. The 400 series are a compact, heavy duty design, which are easily programmed using simple step-by-step instructions. A robust cast construction provides additional stability when working to fine tolerances. Systems will dispense virtually any assembly fluid and adhesive or liquid paste, from thin, watery liquids and solvents to thick gels, silicones and brazing pastes. All are applied quickly, accurately to reduce waste, mess and hand fatigue.
This version is setup for using 300ml/310ml silicone and sealant caulking tube cartridges. The material cartridge is placed inside the metal retainer for controlled application direct from nozzles or precision tips. 3 axis control allows users to dispense material from above products located below either repeat and consistent dots, controlled beads, gaskets, arcs, circles or potting.
Programming is simple with easy to follow English language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 4 I/O signal interface for connection to tools and controllers. Supplied with a timed pneumatic dispenser, I/O cable, teach pendant, power cables, airline hoses, cartridge mounting bracket, 310ml metal cartridge retainer body, tip nozzle pack, user guides.
Data transfer and file import to robot teach pendant via USB - supports CAD, Corel Draw, etc. To generate formats such as DXF, JPG, BMP, NC, AI, scanner, etc. Software supports programming array pattern, graphic browsing, 3D arc, common graphic library and group editing. Store to mini SD file memory with high speed 2GB capacity. Automatic gel prevention mode to avoid curing glue setting in the nozzle or tip.
The 400 series bench top dispensing robots are a cost effective solution combining high level programming technology with precision placement engineering. The 400 series are a compact, heavy duty design, which are easily programmed using simple step-by-step instructions. A robust cast construction provides additional stability when working to fine tolerances. Systems will dispense virtually any assembly fluid and adhesive or liquid paste, from thin, watery liquids and solvents to thick gels, silicones and brazing pastes. All are applied quickly, accurately to reduce waste, mess and hand fatigue.
This version is setup for using 300ml/310ml silicone and sealant caulking tube cartridges. The material cartridge is placed inside the metal retainer for controlled application direct from nozzles or precision tips. 3 axis control allows users to dispense material from above products located below either repeat and consistent dots, controlled beads, gaskets, arcs, circles or potting.
Programming is simple with easy to follow English language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 4 I/O signal interface for connection to tools and controllers. Supplied with a timed pneumatic dispenser, I/O cable, teach pendant, power cables, airline hoses, cartridge mounting bracket, 310ml metal cartridge retainer body, tip nozzle pack, user guides.
Data transfer and file import to robot teach pendant via USB - supports CAD, Corel Draw, etc. To generate formats such as DXF, JPG, BMP, NC, AI, scanner, etc. Software supports programming array pattern, graphic browsing, 3D arc, common graphic library and group editing. Store to mini SD file memory with high speed 2GB capacity. Automatic gel prevention mode to avoid curing glue setting in the nozzle or tip.
Specifications:
Part Code: AD400ACR
X/Y/Z Work area (mm): 400mm / 400mm / 100mm
Worktable Load / Tool: 15 kg. / 6 kg.
Max. Speed X&Y / Z: 800 / 350 (mm/sec)
Repeatability: +/- 0.02mm/ Axis
Resolution: 0.01mm/ Axis
Data Memory: 999 Programs
4,000 points / program
Drive Sys. / Stepping motor: 3-phase
Motion Control: PTP & CP
Teaching Method: Teach Pendant
I/O signals: 4 inputs / 4 outputs
External Interface: RS232
Power Supply: AC 220V
Dimensions (W x D x H): 600mm x 648mm x 629mm
Weight: 45kg
Commodity Code: 90289090
Approvals: CE
Warranty: 1 Year
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for form-in-place gaskets, adhesives, potting, coating and filling
- High resolution 0.001mm
- Performs continuous path and point-to-point motions
- Quick fluid-purge button located on front panel
- Step-and-repeat functions _ program one object only for multiple identical objects
- On board 999 programs, 900,000 point memory capacity
- 1 Year Warranty - CE Certified
