AD600CA 3 axis robot 600mm x 600mm Adhesive Dispensing

Description

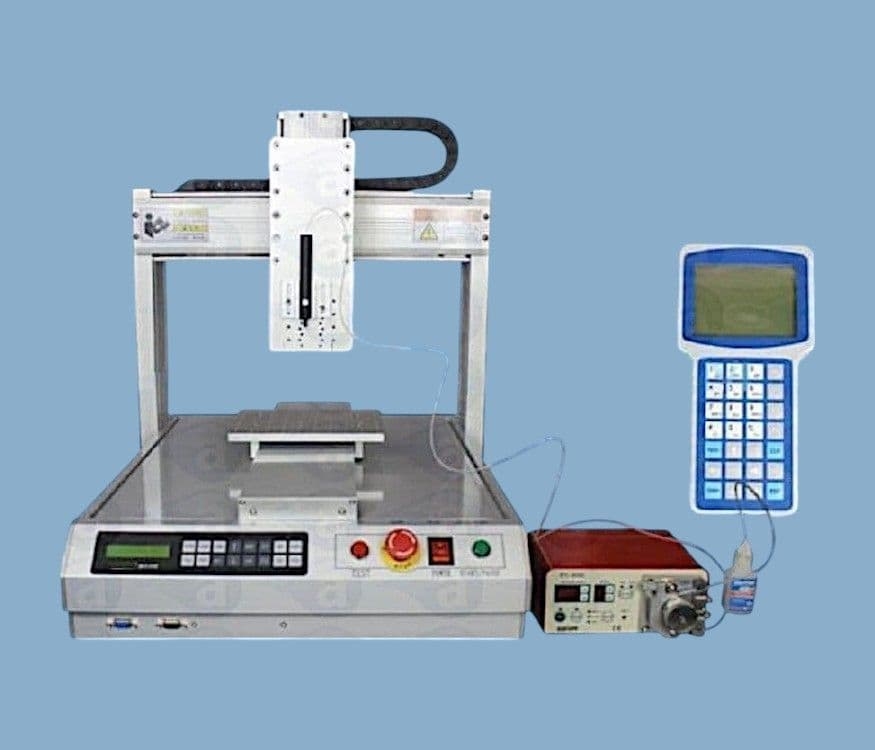

A powerful desktop robot with a working area of 600 x 600mm. Its reduced bench top footprint makes it an ideal robot for automating a dispensing application that may be currently performed manually. Programming is by teach-pendant, using the industry's leading dispensing software that walks the user through step-by-step instructions to create a sophisticated dispensing operation in minutes.

The AD series bench top dispensing robots are a cost effective solution combining high level programming technology with precision placement engineering. The AD series are a compact, heavy duty design, which are easily programmed using simple step-by-step instructions. A robust cast construction provides additional stability when working to fine tolerances.

Programming is simple with easy to follow english language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 4 I/O signal interface for connection to tools and controllers. Supplied with a digital electronic peristaltic pump air free Cyanoacrylate dispenser. This will draw Cyanoacrylate adhesive directly from the glue bottle to apply controlled deposits using Teflon tubing. Completely air-free system..

Data transfer and file import to robot teach pendant via USB. Mini SD file memory with high speed 2GB capacity. Automatic gel prevention mode to avoid curing glue setting in the nozzle or tip.

X/Y/Z Work area (mm): 600 / 600 / 100
Worktable load / Tool: 15 kg. / 6 kg.
Max. Speed X&Y / Z: 800 / 350 (mm/sec)
Repeatability: +/- 0.02mm/ Axis
Resolution: 0.01mm/ Axis
Data Memory: 999 Programs
4,000 points / program
Drive Sys. / Stepping motor: 3-phase
Motion Control: PTP & CP
Teaching Method: Teach Pendant
I/O signals: 4 inputs / 4 outputs
External Interface: RS232
Power Supply: AC 110-220V
Dimensions (WxDxH): 800 x 848 x 629
Weight: 55kg

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Ideal for form-in-place gaskets, adhesives, potting, coating and filling
High resolution 0.001mm
Performs continuous path and point-to-point motions
Quick fluid-purge button located on front panel
Step-and-repeat functions _ program one object only for multiple identical objects
On board 999 programs, 900,000 point memory capacity
Available without Teach Pendant for multiple installations
1 Year Warranty - CE Certified
